Body Version 9962-1 Car (with 10 side posts)

Introduction

Lot 9962 Version 1 – NSL



Lot 9962 was Pullman’s fifth order for their 5077 cubic-foot single door box cars, built at the Bessemer, Alabama plant 9=10/77 and 4/78. 300 cars were built for The National Railway Utilization Corporation (NRUC) for general service and placed into series NSL 101600-101899. This order was unique to all the other PS 5077 orders in that these cars were equipped with diagonal-panel roofs instead of the typical PS bow-tie roof. Features include:

• Type 2 body with 10 side posts (5 on each side of the 10-foot centered door) with all 10 side posts being fabricated from hat-section channels
• Type 2 side sill
• Stanray 15-panel “diagonal panel” roof
• Pullman’s 5/5 “sine-wave” corrugated ends
• YSD 5/6/6 sliding doors with separate NRUC logo panels
• Hennessey “Slide Well” power-assist door openers
• Ellcon-National hand brakes
• Type 3 stirrup steps
• Rigid (non-cushioned) underframe
• Horizontal-lever brake gear
• NARCorp high performance/low friction 70-ton ASF Ride Control trucks with 33” diameter metal wheels
• Body-mount Micro-Trains couplers
• As delivered St. Lawrence Railroad distinctive red, white and blue National Railway Utilization Corporation livery with logo panel and door opener



This highly detailed replica of Pullman Standard’s 5077 cubic-foot single door box car (Lot 9962) has been meticulously researched and designed and produced in plastic with accurate details in plastic, wire and etched metal. North American Railcar is pushing the technology envelope and offering model railroaders cars that they could otherwise never expect to be produced. The Lot 9962 PS 5077 cubic-foot box car is another example.



Road Numbers:

• NSL 101600
• NSL 101616
• NSL 101666
• NSL 101601
• NSL 101660
• NSL 101611



For more information on the PS 5077 single door box car, click:

More Information

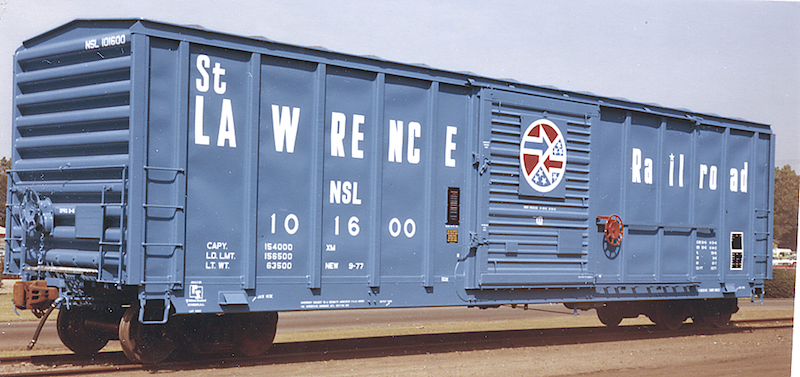

Photo courtesy of
