Digitrax - Z Scale -Mobile Decoders - 2 Function - Use for Micro Trains GP35 and GP9 Locomotives (SKU 245-DZ123M0)

Available On: January 1, 2007

 digitrax

   All Digitrax decoders are rated for at least 1 amp for robust operation and long-term reliability. Available in a variety of shapes and sizes to fit in almost any locomotive, Digitrax offers both traditional wired decoders as well as plug n play decoders that make installation a snap.

    Digitrax decoders feature variable frequency Supersonic(TM) motor drive for quiet motor operation. They support all DCC standard programming methods. One-step decoder factory reset makes it easy to troubleshoot decoders. Motor isolation protection protects your investment in locos and decoders. Digitrax decoders support both two and four digit addressing and basic, advanced and universal consisting. They also have operations mode read-back capability so you can read back programming information while the decoder is on the main line.
 Digitrax decoders are DCC compatible and can be used with any DCC compatible system.

Recommended Digitrax Decoder - Z-scale:

  • MicroTrains -- Z Scale GP-35 Locomotives
    • ?

PRODUCT MANUAL CLICK HERE

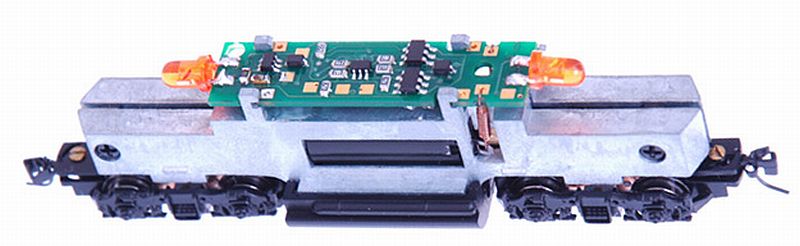

DZ123M0 Z Scale Mobile Decoder for MicroTrains GP35 locos

Features:

  • This 2 function FX3 decoder is designed to fit MicroTrains Z scale GP-35 locos. This unit is shipping now.

    128 Speed Step operation (14 or 28 steps can also be used).

    Momentum with acceleration and deceleration.

    Normal Direction of Travel is user selectable.

    3 Step Speed Tables set start, mid and max voltage for custom control.

    28 Step Speed Tables with 256 level resolution for precise control.

    SuperSonic™ motor drive for silent operation.

    FX 3 Function outputs for prototypical lighting effects and on/off control:

    Constant Brightness Lighting with directional or independent control

    FX 3 & Standard Function Qualifiers operate functions based on direction,
    F0 on or off, direction and F0, and whether loco is moving.

    Function Remapping for custom function setup.

    Decoder Lock equipped

  • All Mode Programming with Operations Mode Read Back reads back CV values right on the mainline.

  • Decoder Reset CV with or without speed table reset.

  • Motor Isolation Protection prevents damage to your decoder.

  • Basic, Advanced & UniVersal Consisting

  • 2 Digit and 4 Digit Addressing

  • DCC Compatible

  • FCC Part 15, Class B RFI compliant

Current Rating 1.00 Amp (2.0 Amps Peak)
Size 0.36” x 0.55 x 0.13”
9.14mm x 13.97mm x 3.3mm
Installation Plug'N Play
Function Outputs 2-500mA
Function Type

FX3
Features

Economy Series 3

Click Here to View Digitrax Video Tutorials







$39.00 US
