Circuitron BR-3 Digitally Recorded Grade Crossing Bell With Speaker Circuitron Item #: 800-5703

Overview:

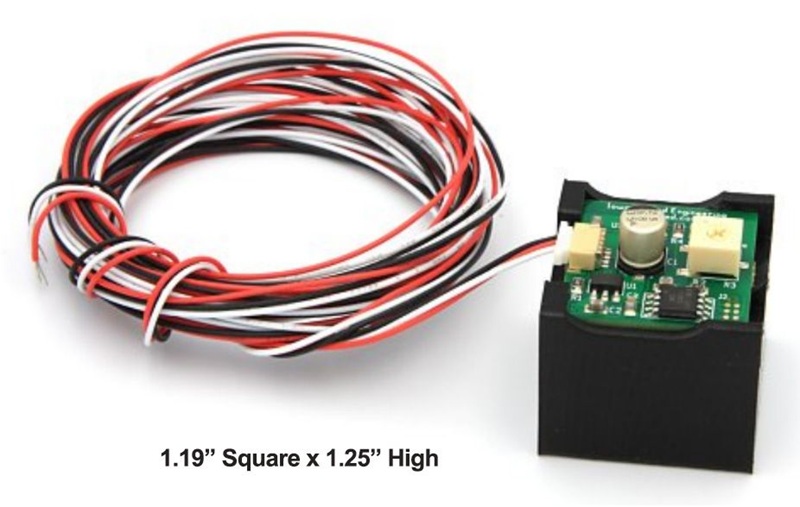

Although CIRCUITRON has had their BR-1 mechanical doorbell ringer for decades, they felt it was time to offer a more realistic option for grade crossings. Working with Circuitron friends at Iowa Scaled Engineering, the BR-3 is the result. Containing all the circuitry AND miniature speaker in a special design 3D printed enclosure, the BR-3 faithfully reproduces the ring of a typical mechanical grade crossing bell. It is FAR more realistic than Circuitron BR-1 and costs less because the pricey mechanical doorbell is not needed. Measuring just 1.19” square by about 1.25” high, the BR-3 module is small enough to fit in many trackside structures. If no structures are located close to the grade crossing, the module can be mounted below the layout with the sound port projecting into a hole up through the layout. A model bush can be used to disguise the hole topside. The BR-3 requires a 8-18 volt AC or DC (DC is preferred) power supply and it has a white control wire that will connect to the out- put of any CIRCUITRON (or other brand) detection circuit as long as the output provides a connection to GROUND [-] when the train is detected. The BR-3 can also be manually controlled with a panel switch. The BR-3 module contains a volume control to adjust the output level.

Circuitron also Updated the Pictures and Descriptions for previously released Accessories

GD-1 Gate Driver Circuit

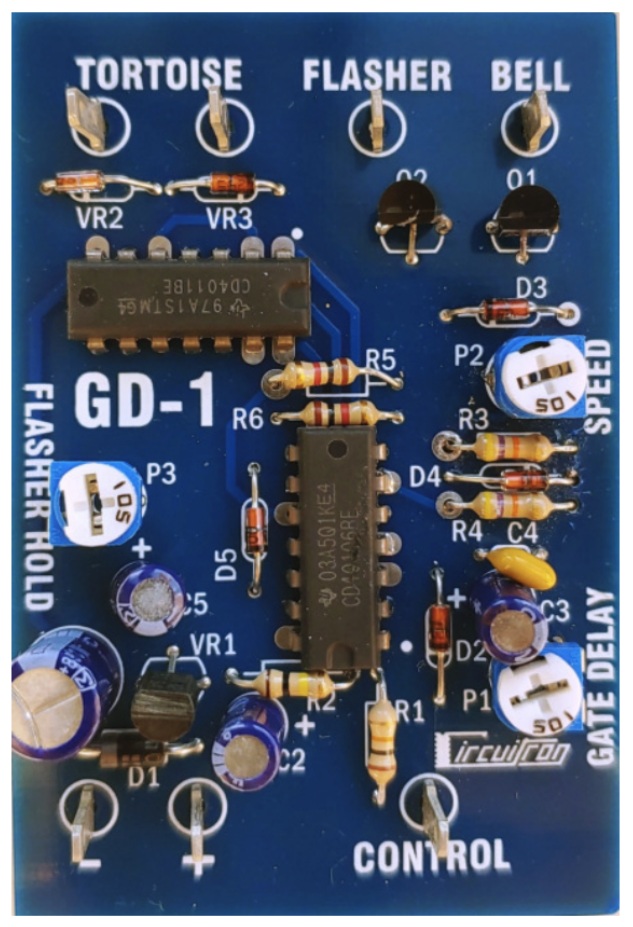

The GD-1 Gate Driver circuit, when used with a CIRCUITRON TORTOISE train detection circuitry such as their DT-1, DT-2 or DT-3, an alternating flasher circuit such as their FL-2 and a bell ringing circuits such as their BR-1 & BR-3 will provide all the control electronics for a gate protected grade crossing.

The GD-1 can drive one or two TORTOISE machines. With the addition of Circuitron's 8100 Remote Signal Activator, the TORTOISE will be able to control crossing gates in any scale that use a vertical control wire through the layout base. The GD-1 is designed to be powered by 8-20 volts DC. The speed of the TORTOISE is adjustable and can be set to lower the gates at the proper (desired) speed. In addition, an adjustable Gate Delay trimmer (0—6 seconds) allows an initial time delay before the gates start to move. The Bell and Flasher outputs will be ON during this delay. The input control terminal needs less than 1 ma for actuation, thus requiring a negligible drive current from the controlling circuit. Inputs to the GD-1 must be a ground signal.

There are both Flasher and Bell outputs which provide a grounded output to control external devices. The Flasher output has an adjustable Hold control which can be used to hold the flasher circuitry on while the gate rises so that they shut off together. Both the Flasher and Bell outputs can control up to 250 ma. The GD-1 Gate Driver Circuit is constructed on a 2” x 3” circuit board.

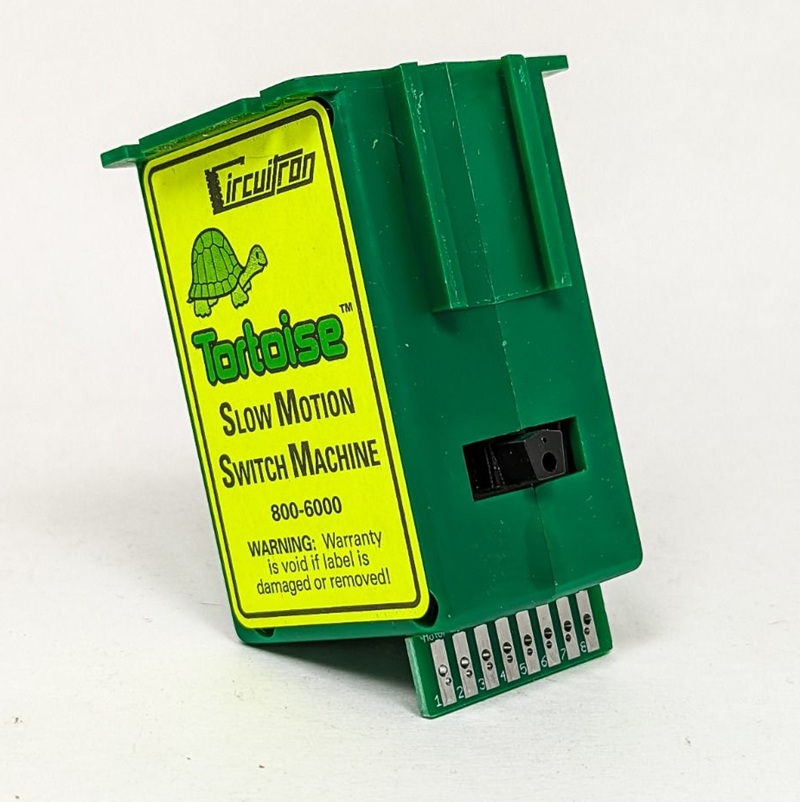

Tortoise Slow Motion Switch Machine

Prototype turnouts don't snap open and closed, they move slowly. This easy-to-mount switch machine features prototypical slow-motion action-three seconds to complete throw.

The Circuitron Tortoise Switch Machine: Patented, Advanced Technology Design!

• Lowest current drain switch machine available (4 ma. during operation, 15 ma. at stall).
• Motor stalls at each end of throw
• No cutoff contact necessary
• Precision engineered gear-drive mechanism (superior to screw-drive machine).
• Enclosed construction
• Constant tension on switch points

Ultra-Simple Mounting!

• No additional brackets or linkage necessary
• Fulcrum adjusts for use in all scales - Z to G.

Prototypical Slow Motion Action!

• 3 seconds to complete the throw

Convenient Auxiliary Contacts!

• 2 sets SPDT provided for powering the frogs or signals

Simplified Wiring! Also Ideal for Grade Crossing  Gates and Semaphores Unprecedented 9 Year Warranty

Order Due Date: Available Now

Anticipated Delivery Date: In Stock Now
