Digitrax - N Scale - Mobile Decoder DCC Plug 'N Play 1.0 Amp (used for Kato RDCs) (replaces DN122K2) (SKU 245-DN143K2)

 digitrax

   All Digitrax decoders are rated for at least 1 amp for robust operation and long-term reliability. Available in a variety of shapes and sizes to fit in almost any locomotive, Digitrax offers both traditional wired decoders as well as plug n play decoders that make installation a snap.

    Digitrax decoders feature variable frequency Supersonic(TM) motor drive for quiet motor operation. They support all DCC standard programming methods. One-step decoder factory reset makes it easy to troubleshoot decoders. Motor isolation protection protects your investment in locos and decoders. Digitrax decoders support both two and four digit addressing and basic, advanced and universal consisting. They also have operations mode read-back capability so you can read back programming information while the decoder is on the main line.
 Digitrax decoders are DCC compatible and can be used with any DCC compatible system.

Recommended Digitrax Decoder - N-scale:

Kato – RDC

Plug N' Play Decoder for Kato N Scale RDS 1.0 AMp/1.5 AMp with 4 FX Functions rated at 1/2 AMP. Golden White LEDs for realistic headlights and interior lights. Red LEDs for the markers.

This dedoder replaces the DN122K2 with more features!

Click here for product manual

DN143K2 N Scale Mobile Decoder

Features:

  • DN143K2 makes installation possible though it is somewhat challenging because of the model itself. If you use reasonable care, you will be able to handle this installation.

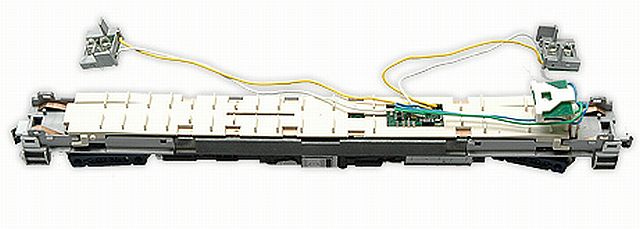

  • RDC Special Lighting: 3 light boards included with decoder, lights reverse automatically with loco direction changes, yellow lights show in the direction of travel and red lights show in the opposite direction.

  • The two functions have configurable strobe capability use in locos other than RDC.
Current Rating 1.00 Amp (1.5 Amps Peak)
Size For Kato N RDC
Installation 3 part decoder with main body connected to two lamp boards
Function Outputs 4-125mA
Function Type

RDC Special, CS also available
Features

Premium

Click Here to View Digitrax Video Tutorials







$48.00 US
