Digitrax Mobile Decoder - DN123K3 (This 2 function FX3 decoder is designed to fit Kato NW2 units.) (SKU 245-DN123K3)
Available On: June 1, 2007
All Digitrax decoders are rated for at least 1 amp for robust operation and long-term reliability. Available in a variety of shapes and sizes to fit in almost any locomotive, Digitrax offers both traditional wired decoders as well as plug n play decoders that make installation a snap.
Digitrax decoders feature variable frequency Supersonic(TM) motor drive for quiet motor operation. They support all DCC standard programming methods. One-step decoder factory reset makes it easy to troubleshoot decoders. Motor isolation protection protects your investment in locos and decoders. Digitrax decoders support both two and four digit addressing and basic, advanced and universal consisting. They also have operations mode read-back capability so you can read back programming information while the decoder is on the main line.
Digitrax decoders are DCC compatible and can be used with any DCC compatible system.
Recommended Digitrax Decoder - N-scale:
Kato – NW2
The DN123K3 is a 1.0/1.5 amp rated unit. FX3 accessory function outputs rated at .5 amps
Click here for product manual

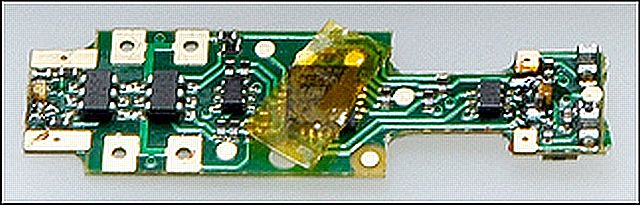

DN123K3 N Scale Mobile Decoder
Features:
- Digitrax LocoMotion™ System
Your locomotives look like the real thing. The Digitrax LocoMotion™ System makes them run like the real thing, too!
Torque Compensation for smooth as silk silent operation.
128 Speed Step operation (14 or 28 steps can also be used).
Momentum with acceleration and deceleration.
Normal Direction of Travel is user selectable.
Switching Speed feature for easier and faster access to yard speeds.
3 Step Speed Tables set start, mid and max voltage for custom control.
28 Step Speed Tables with 256 level resolution for precise control.
- SuperSonic™ motor drive for silent operation.
FX 3 Function outputs for prototypical lighting effects and on/off control:
Constant Brightness Lighting with directional or independent control
Realistic Effects like Ditch lights, Mars lights, strobes, and many more.
FX 3 & Standard Function Qualifiers operate functions based on direction, F0 on or off, direction and F0, and whether loco is moving.
Function Remapping for custom function setup.
Master Light Switch turns off all lights & functions with one keystroke.
Advanced Consist Function Controls
Decoder Lock equipped
-
Transponder equipped ready for transponding on your layout.
-
All Mode Programming with Operations Mode Read Back reads back CV values right on the mainline.
-
Decoder Reset CV with or without speed table reset.
-
Motor Isolation Protection prevents damage to your decoder.
-
Basic, Advanced & UniVersal Consisting
-
2 Digit and 4 Digit Addressing
-
DCC Compatible
-
FCC Part 15, Class B RFI compliant
|
Current Rating |
1.25 Amp (2.0 Amps Peak) |
Size |
0.39” x 1.34 x .1” 10mm x 34mm x 2.5mm |
Installation |
Board replacement for Kato NW2 |
Function Outputs |
2-500mA |
Function Type |
FX3
|
Features |
Economy Series 3
|
|
Click Here to View Digitrax Video Tutorials
$33.00 US
