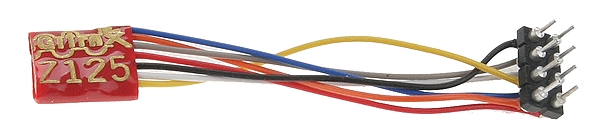

Digitrax - All Scale - Cost effective tiny decoder with DCC medium plug - 8 pin plug 1 amp (Replaces DZ123PS) (SKU 245-DZ125PS)

 digitrax

    All Digitrax decoders are rated for at least 1 amp for robust operation and long-term reliability. Available in a variety of shapes and sizes to fit in almost any locomotive, Digitrax offers both traditional wired decoders as well as plug n play decoders that make installation a snap.

    Digitrax decoders feature variable frequency Supersonic(TM) motor drive for quiet motor operation. They support all DCC standard programming methods. One-step decoder factory reset makes it easy to troubleshoot decoders. Motor isolation protection protects your investment in locos and decoders. Digitrax decoders support both two and four digit addressing and basic, advanced and universal consisting. They also have operations mode read-back capability so you can read back programming information while the decoder is on the main line.
Digitrax decoders are DCC compatible and can be used with any DCC compatible system.



Recommended Digitrax Decoder - N-scale:

ConCor – Northern 4-8-4; 2-10-2

Basic Digitrax Decoder Recommended - HO-scale:



  • Atlas -- C30-7; C424, C425; GP7 (2003 and later); U23B; U33C & U36C
  • Bachmann -- Spectrum 2-10-0
  •   ConCor -- Pioneer Zephyr; ElectroLiner; M-10000; AeroTrains
  •    InterMountain -- F3-F9
  •   Kato -- RS2 / RSC-2
  • LifeLike -- 2-8-8-2; S-1 (see application note); S-3 Alco (Proto 2000) (Change Bulbs to 12V); LifeLike Diesels with DCC Medium Socket
  •  MDC -- Four Truck Shay
  •  Riverossi -- Allegheny
  •   Stewart -- U25B; VO1000
  • Trix -- Big Boy



Premium Digitrax Decoder Recommended - HO-scale:

  • Atlas -- HH600 / HH660







Cost effective tiny decoder with DCC medium plug on 1" harness

1.0 Amp/2.0 Amps Peak 2 FX3 [email protected] Amp
DCC Plug 'N Play with 1' Harness

Z Scale--use without plug, or DZ123

 For: N Scale Con-Cor steam engines
HO Scale Athearn Genesis, Kato, BLI Blue Line or any diesel with 8 pin plug


DZ125PS Z Scale Mobile Decoder

Features:
  • New Tiny Decoder with 8 Pin Plug
    (Replaces DZ123PS)


    Torque Compensation for smooth as silk silent operation.

    128 Speed Step operation (14 or 28 steps can also be used).

    Momentum with acceleration and deceleration.

    Normal Direction of Travel is user selectable.

    Switching Speed feature for easier and faster access to yard speeds.

    3 Step Speed Tables set start, mid and max voltage for custom control.

    28 Step Speed Tables with 256 level resolution for precise control.

    SuperSonic™ motor drive for silent operation.

    FX 3 Function outputs for prototypical lighting effects and on/off control:

    Constant Brightness Lighting with directional or independent control

    Realistic Effects like Ditch lights, Mars lights, strobes, and many more.

    FX 3 & Standard Function Qualifiers operate functions based on direction,
    F0 on or off, direction and F0, and whether loco is moving.

    Function Remapping for custom function setup.

    Master Light Switch turns off all lights & functions with one keystroke.

    Decoder Lock equipped

  • Transponder equipped ready for transponding on your layout.

  • BEMF equipped

  • All Mode Programming with Operations Mode Read Back reads back CV values right on the mainline.

  • Decoder Reset CV with or without speed table reset.

  • Motor Isolation Protection prevents damage to your decoder.

  • Basic, Advanced & UniVersal Consisting

  • 2 Digit and 4 Digit Addressing

  • Works with most DCC-ready Z, N, and HO scale locomotives up to 20V track voltage

  • DCC Compatible

  • BEMF equipped

  • FCC Part 15, Class B RFI compliant

  • Click Here to View Digitrax Video Tutorials
Current Rating 1.00 Amp (1.25 Amps Peak
Size .418” x .340” x .112"
10.6mm x 8.7mm x 2.86mm
(Approx. measurement without wires + plug)
Installation Wired Plug
Function Outputs 2-500mA
Function Type

FX3
Features

Economy Series 3







$26.99 US
