DECODER FEATURES:
• Compatible with the NMRA DCC Standards and Recommended Practices
• Supports 7 bit address modes for compatibility with 'simple' systems
• Programmable acceleration, deceleration, starting voltage
• Supports 14 bit address modes for addressing any Loco number up to 9,999
• Supports programming on the main

THROTTLE FEATURES:
• Supports 14, 28, and 128 speed step modes
• Speed interpolation provides smooth 128 speed step response in any mode
• Programmable acceleration, deceleration, starting voltage
• 7 bit consist addressing
• 15 pre-programmed speed tables and 1 user programmable speed table
• High Frequency Silent Motor Drive
• Load Compensation

SOUND FEATURES:
• High quality digital sound
• Individual, adjustable volume controls
• One watt audio amplifier
• Polyphonic Sound Processor
• 16-bit Audio Processing
• Playable Whistle
• 7-band Audio Equalizer
• Reverb

LIGHTING FEATURES:
• 15 Lighting effects supporting “Rule 17” or automatic direction control

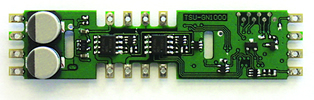

Model TSU-GN1000 Specifications

Motor Stall Current: 1.00 AMP Maximum
Function Outputs: 4
Function Current: 100mA (each output)
Audio Amplifier: 1 Watt, 8 ohm load
