A small powerful HO & N scale series with a 7 pin mini harness. 1 amp continuous, 2 amp peak motor drive

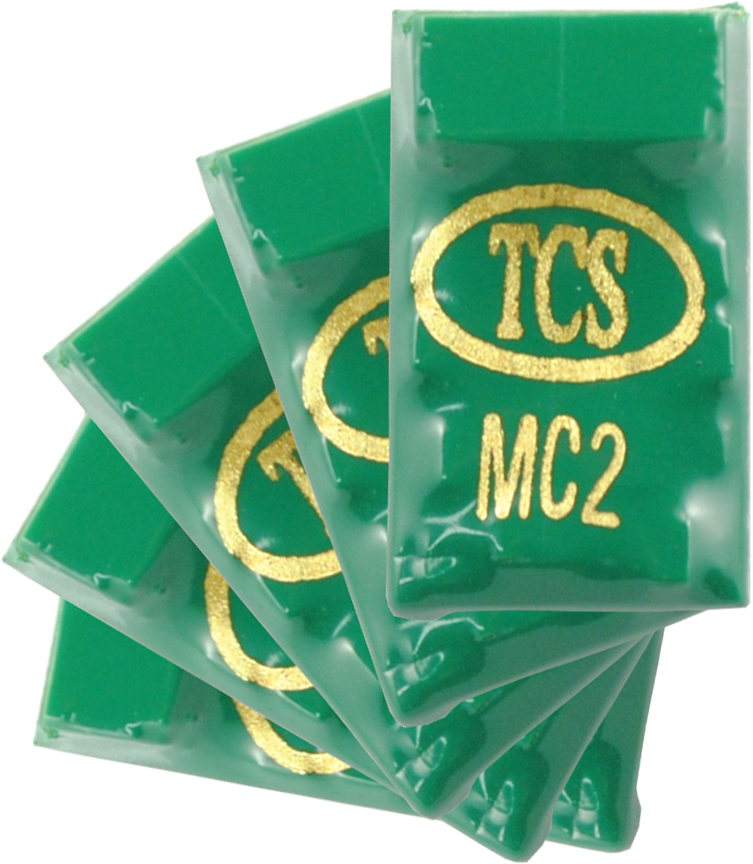

The MC2 is a motor control decoder with two lighting functions (headlight and reverse light)

Dimensions .729” x .417” x .189” or 18.5 mm x 10.6 x 4.8 mm

An HO scale decoder a 7 pin JST socket. This decoder can be hardwired, or connected to the 8-pin NMRA sockets using a variety of the available harnesses. Provides 1 amp continuous and 2 amp peak draw. The MC2 features TCS exclusive auto-adjusting BEMF.

This full featured, 2 function, hardwire or harnessed decoder is our smallest detachable harness decoder. It’s small size and convenient harnessing options make it an economical and effective option for tight N and HO applications which could benefit from a detachable harness. Included is our auto-adjusting BEMF for outstanding slow speed performance and hassle free set up. Also includes Quiet Drive for super quiet engine performance.

Main Features of this Decoder

• Back EMF Load Compensation for superior slow speed control even with heavy loads.
• Quiet Drive creates SUPER QUIET engine performance.
• Autodetect for realistic throttle response when using DC power.
• Dimmed Brightness of bulbs or LEDs is adjustable.
• Variable Momentum lets you make custom acceleration curves.
• Mars, Gyra, and Rotary Beacon are adjustable.
• Decoder Lock for programming same address decoders independently.
• Function Remapping: 13 buttons for most lights, 7 buttons for operations.
