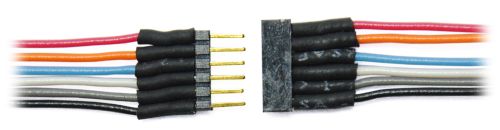

SKU: 1477 This simple, six pin, 1 mm (0.039") pitch, micro quick plug wired connector is ideal for hardwire situations where you may have to remove or disconnect certain components from time to time. These amazing new micro connectors are nearly half the size of our popular, super-small Mini Connectors that we have offered for years. This quick plug connector is also ideal for "Break Away" applications where connections to need to be broken easily for safety or convenience. Each side of the connector has color (for polarity matching), 32 gauge, very flexible robotic wire soldered to it and insulated with heat shrink tubing.

Dimensions: When connected together it is .256" wide by .062" tall by .126" long, and it has 6" long wires on both ends.

The Pitch (distance from center to center of the pins) is .039" or 1 mm.

Mini Connector with color wires : SKU 1477
Mini Connector with black and white wires : SKU 1476
