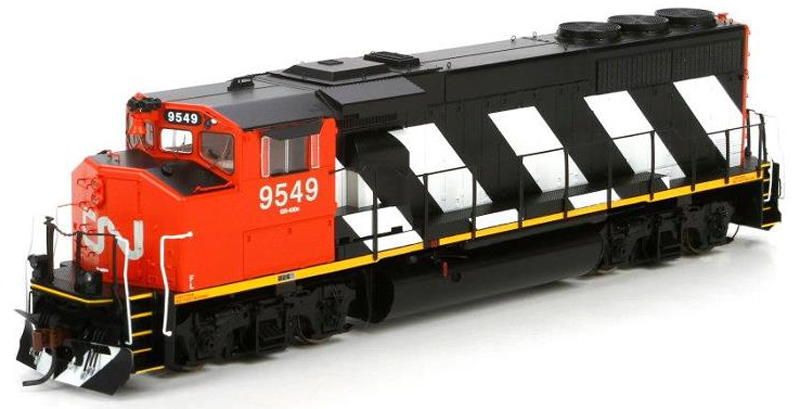

Overview  CN-L

FEATURES:

• Class GF-430c
• Taller frame results in a higher ride height when compared to standard GP40-2 series locomotives
• Tall jacking pads
• Operating lampshade ditch lights
• Larger 3,600 gallon fuel tank
• Front CN medium snowplow with white “V” stripe
• CN coupler cut levers and bracket
• Nathan K-3 air horn mounted above the bell
• Snowshield covers over the air intakes
• Radiused step wells
• Long ECAFB
• Latched and hinged air compressor access door with wide louver panel below
• Pyle single lens rear headlight
• No rear class lights
• No rear number boards
• Trainline hose
• MU hoses
• Canadian style coupler cut lever
• Canadian ribbed anticlimber
• Canadian-style steps
• Canadian safety cab with interior including single control stand
• Canadian Pyle early nose headlight
• Front triangular cluster of red, white, and green class lights
• Bell mounted on the cab between the number boards
• Large Sinclair ice skate antenna mounted on the cab roof
• Sunshades
• Mirrors/windwings fore and aft
• Long Canadian ECAFB
• Early inertial intake grilles
• Non-dynamic brake
• Standard raised exhaust
• Curved radiator grab iron
• Round sand filler hatches
• 3,200 gallon fuel tank
• Blomberg-M trucks
• Early speed recorder mounted on left front axle
• Salem air filter
• Rear drop step
• Fully-assembled and ready-to-run
• DCC-ready features Quick Plug™ plug-and-play technology with both 8- and 9-pin connector
• Scaled from prototype resources including drawings, field measurements, photographs, and more
• Accurately-painted and –printed paint schemes
• See through cab windows
• Full cab interior
• Standard cabs including sliding windows
• Walkway tread
• Fine-scale Celcon handrails for scale appearance
• See through dynamic brake fans on locomotives equipped with dynamic brakes
• Windshield wipers
• Lift rings
• Wire grab irons
• Detailed fuel tank with fuel fillers, fuel gauges, breather pipes, and retention tanks
• Sander lines
• McHenry scale knuckle couplers
   o Kadee compatible
• Genesis driveline with 5-pole skew wound motor, precision machined flywheels, and multi-link drivetrain for trouble free operation
• All-wheel drive with precision gears for smooth and quiet operation
• All-wheel electrical pickup provides reliable current flow
• Wheels with RP25 contours operate on Code 70, 83, and 100 rail
• Incandescent bulbs for realistic appearance
• Bidirectional constant lighting so headlight brightness remains constant
• Heavy die-cast frame for greater traction and more pulling power
• Packaging securely holds for the model for safe storage
• Replacement parts available
• Onboard DCC decoder with SoundTraxx Tsunami decoder
• Sound units operate in both DC and DCC
   o Some functions are limited in DC
   o Engine, horn, and bell sounds work in DC
• All functions NMRA compatible in DCC mode
• Slow speed control
• Program a multiple unit (MU) lashup with lead unity only horn, bell, and lights
• Lighting effects such as alternating ditch lights, Gyralight where prototypically accurate
• Many functions can be altered via Configuration Value (CV) changes
   o CV chart is included in the box
