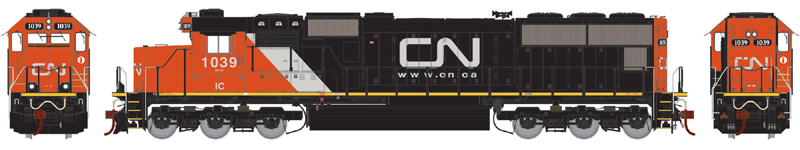

Athearn Genesis - HO Scale - SD70l Tsunami Sound & DCC - Canadian National (IC) - #1039 - Red, Black (www.cn.ca Scheme) (SKU 141-69283)

Available On: March 1, 2015

MODEL FEATURES

  • Fully-assembled and ready-to-run
  • Front and rear trainline air hose with silver ends
  • Multiple unit (MU) hoses with silver ends
  • Coupler cut levers with loops
  • Pilot face mounted open MU receptacle with cable
  • Round pilot face mounted open MU receptacle with round base
  • Closed pilot mounted MU receptacle
  • Pilot face spare knuckle and bracket
  • Late front and rear anticlimber
  • Safety tread on the walkways
  • Anti-glare panel painted on the nose
  • Windshield wipers
  • See through cab windows
  • Detailed and painted cab interior with control stand, display screens, detailed crew seats
  • Freight brake wheel
  • See-through radiator fans
  • Lift rings
  • Factory installed wire grab irons
  • Fine-scale Celcon handrails for scale appearance
  • Underframe mounted bell
  • Low mount stepwell lights (non-operating)
  • Dual sanding lines
  • Rear pilot drop grab iron (MU hose retainer)
  • DCC-ready features Quick Plug™ plug-and-play technology with both 8- and 9-pin connector
  • McHenry scale knuckle spring couplers
  • Scaled from prototype resources including drawings, field measurements, photographs, and more
  • Accurately painted and printed paint schemes
  • Genesis driveline with 5-pole skew wound motor, precision machined flywheels, and multi-link drivetrain for trouble free operation
  • All-wheel drive with precision gears for smooth and quiet operation
  • All-wheel electrical pickup provides reliable current flow
  • Wheels with RP25 contours operate on Code 70, 83, and 100 rail
  • Incandescent bulbs for realistic appearance
  • Bidirectional constant lighting so headlight brightness remains constant
  • Heavy die-cast frame for greater traction and more pulling power
  • Packaging securely holds for the model for safe storage
  • Minimum radius: 18"
  • Recommended radius: 22"

SOUND EQUIPPED MODELS ALSO FEATURE

  • Onboard DCC decoder with SoundTraxx Tsunami sound
  • Sound units operate in both DC and DCC
  • Full DCC functions available when operated in DCC mode
  • Engine, horn, and bell sounds work in DC
  • All functions NMRA compatible in DCC mode
  • Slow speed control
  • Program a multiple unit (MU) lashup with lead unit only horn, bell, and lights
  • Many functions can be altered via Configuration Value (CV) changes
  • CV chart included in the box

LOCOMOTIVE SPECIFIC FEATURES

  • #1002, #1008 and #1012 include
    • SD70 Spartan Cab battery box doors
    • Walkway spare knuckle basket
    • Intermediate HTCR steerable trucks
    • Early speed recorder
    • Early 5,000 gallon fuel tank
    • Stem mounted dial type fuel gauge
  • #1002
    • Canadian style snowplow; era: 2012+
  • #1008
    • Tall snowplow; era: 2010+
  • #1012
    • Tall snowplow; era: 2008+
  • #1039
    • EMD low snowplow without door
    • Late (IC) SD70 Spartan Cab battery box doors
    • HTCR-II steerable trucks
    • Late speed recorder
    • Late 5,000 gallon fuel tank
    • Late digital fuel gauge
    • Era: 2006+
  • All Road Numbers
    • Ex-Illinois Central
    • All-new long hood
    • Operating flat top ditch lights with angled kickplate
    • 88" nose
    • Integrated Cab Electronics (ICE) equipment bulge on the right-hand side of the nose
    • Sand fill
    • Spartan Cab with dual sealed beam headlight, glare shields, and number boards
    • Spartan Cab interior
    • Fore and aft wind deflectors with upper mirror
    • Short sunshades with bracket
    • Air conditioner
    • Rectangular cab vent
    • Nathan AirChime K5HR-24 air horn
    • Early dynamic brake grille intake
    • 48" 2-speed radiator Q-Fans
    • 4-step walkway
    • Side sill mounted AEI tag
    • Early jacking pads
    • Truck light details (non-operating)
    • L-shaped breather down pipe
    • Late fuel tank breather up pipe and down pipe
    • Prime air dryer
    • Left rear underbody plumbing
    • Prime air filter set with pipe
    • Late EFCO button






$299.98 US
