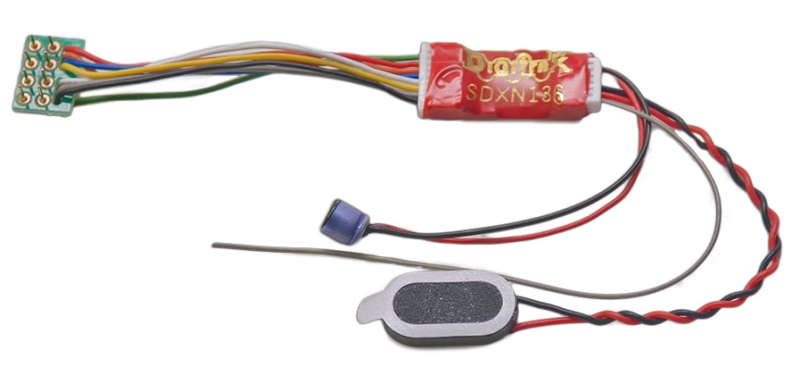

SDXN136PS Premium 1 Amp Sound Decoder N Scale

Great 16 Bit Sound at a Great Price! For N and HO!

•Wired 16 Bit Customizable SoundFX Decoder
•4 Simultaneous Voices
•8 Selectable Preloaded Steam & Diesel Sound Schemes
•Downloadable Sound
•16 Megabit onboard sound memory
•1.0 x 0.41 x .19 in. (25.6 x 10.46 x 4.93 mm)
•8 Ohm 10 x 18 mm oval speaker
•100uF Capacitor
•Accepts PX112-6 Power Xtender
•1.0 Amp/ 2.0 Amps Peak Motor Current Rating
•3 FX3 Functions-500mA Total Function Current Rating
•FX3 optimized for LEDs or lamps
•New Series 6 features
•Use PR3 and SoundLoader 2.0
•16 Megabit on board sound memory
•8 Ohm oval speaker included
•1 Watt sound output
•330uF Capacitor for sound hold up included
•Cam input synchronized steam chuff
•Works with PX112-6 Power Xtender

Digitrax SoundFX® Sound System
Your locomotives will sound in scale like the real thing with SoundFX

•Customizable 16 Bit Sound
•Works with SoundFX 16, 12 & 8 Bit sound files
•4 Simultaneous Voices
•Downloadable Sound with Digitrax PR3 and SoundLoader 2.0 software
•16 Megabit Onboard Sound Memory
•1 Watt Sound Output
•Cam input-synchronized Steam-chuff option for Steam locos
•Scaleable Speed Stabilization(BEMF) optimized for sound operationSoundFX does not require an external rate sensor to vary workload.
•Factory 8 Ohm oval speaker on 6 Pin Plug design makes installation quick and easy.

Easy Programming and Installation

•Smart Power Management-no more booster or programmer shutdowns!
•Program CVs using any Digitrax Compatible Control system without having to buy any extra equipment.
•Digitrax Easy Connect 9 Pin Plug for Track, Motor and Function Control.
•Direct mode programming.
•Decoder Reset CV with or without speed table reset.

Series 6 Decoder Features

•Works with PX112-6 Power Extender for improved operation in the presence of intermittent track power.
•Digitrax FX3 Functions-Control lights and functions for prototypical lighting effects and on/off control.
•Configurable FX3 Pulse Function available on all function outputs.
•Improved Scaleable Speed Stabilization (BEMF).

Digitrax LocoMotion® System – Lets your trains run like the real thing!

•2 Digit and 4 Digit Addressing.
•Basic, Advanced & UniVersal Consisting.
•SuperSonic motor drive for silent operation.
•Transponder Equipped ready for transponding on your Layout.
•Motor Isolation Protection helps prevent damage to your decoder.
•DCC Compatible.
•FCC Part 15, Class B RFI compliant.

Digitrax “No Worries” Warranty

Specifications

Current Rating-Motor: 1.0 Amps/2.0 Amps Max
Size: 1.0 x 0.41 x .19 in. (25.6 x 10.46 x 4.93 mm)
Installation: Wired
Function Outputs: 3
Function Type: FX3
Features: Series 6
For Use With: PX112-6 Power Xtender
Current Rating-Functions: 500 mA
Speaker: 8 Ohm 10 x 18 mm oval speaker
Capacitor: 100uF Capacitor
Onboard Sound Memory: 16 megabit
Sound Projects Supported: 16, 12 or 8 bit sound
