NARC - HO Scale - NSC 5092 Cu Ft - 50ft Boxcar - Pacific Great Eastern (PGE) (Light Green with White Lettering and Map Logo) 12 road numbers available in 2 different 6 car sets (A and B) - Version 1A (SKU 11-34001001)
Available On: May 1, 2023
First Delivered 1971
THE NATIONAL STEEL CAR 5092 CU. FT. COMBINATION DOOR BOXCARS
The Pacific Great Eastern/British Columbia Railway received 1,785 of these boxcars from National Steel Car between 1971 and 1973, making them the most numerous boxcar on the railway. They were seen all across Canada and the United States in lumber service.
From 1989 they were rebuilt for pulp service and many have continued in service with CN since 2004.
North American Railcar Corporation will produce models representing the cars built in 1971 and 1972, and those rebuilt for pulp service by the railway.
Applicable series - PGE 5100-5399 (built 8=9/71)
Roofs: Equipped with NSC 15-panel riveted Bow-Tie design.
Ends: Equipped with Type 1V ends, with vents.
Doors: Equipped with YSD 6-foot auxiliary plug door and YSD 8-foot 6/6/6 sliding main door with lift handle.
Plug Door Stops: Equipped with large plug door stops.
Hand Brakes: Equipped with a Universal hand brake housing and detailed hand brake wheel.
Trucks: Equipped with 70-ton Barber S-2 trucks with free rolling 33" machined wheels.
Detail Differences Car
End 1 with vent
Side sill un-notched
Crank arm no
Door YSD 6/6/6 no forks
Door stops large
Set A - Nos. 1-6 Car
Set B - Nos. 7-12
For more information on the NSC 5092 cf Combo Door Box Car,
and other paint schemes available, click on the link below

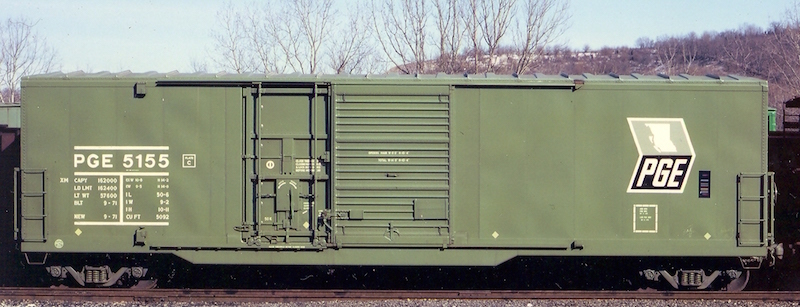

Photo courtesy of Dave Barone
