NARC - HO Scale - NSC 5092 Cu Ft - 50ft Boxcar - BC Rail (BCOL) (Dark Green with White Lettering/ BC Rail Logo with underline) (rebuilt cars with Teams Free Rolling Panel Door) 12 road numbers available in 2 different 6 car sets (A and B) - Version 1b / 7 (SKU 11-34001007)

Available On: May 1, 2023

First Delivered 1972 / 80000 series cars with replacement door



The Pacific Great Eastern/British Columbia Railway received 1,785 of these boxcars from National Steel Car between 1971 and 1973, making them the most numerous boxcar on the railway.  They were seen all across Canada and the United States in lumber service.

From 1989 they were rebuilt for pulp service and many have continued in service with CN since 2004.

North American Railcar Corporation will produce models representing the cars built in 1971 and 1972, and those rebuilt for pulp service by the railway.

Applicable series - BCOL 80000-80455 Modified/repainted starting 1991

Roofs:  Equipped with NSC 15-panel riveted Bow-Tie design.

Ends:  Equipped with Type 1V ends.

Doors:  Equipped with YSD 6-foot auxiliary plug door and YSD 8-foot 6/6/6 sliding main door with lift handle.

Plug Door Stops:  Equipped with large plug door stops.

Hand Brakes:  Equipped with a Universal hand brake housing and detailed hand brake wheel.

Trucks:  Equipped with 70-ton Barber S-2 trucks with free rolling 33" machined wheels.

Model Features:

  • Meticulously researched
  • Highly detailed roof including rivet detail on the seam caps and along the sides and ends
  • Highly detailed NSC Type 1V end with a vent near the roof and rivets between the horizontal ribs
  • Un-notched side sill with Type 1 stirrup steps
  • 14-foot door opening
  • Detailed YSD auxiliary plug door including separate crank rods/rollers and handle
  • Detailed YSD 9-panel replacement main sliding door with separate tack boards
  • Separate crank rod added to the top of the plug door
  • Separate, detailed door tracks
  • Detailed large (modified) plug door door stops
  • Detailed Universal hand brake housing and separate brake wheel, plus detailed bell crank
  • Etched metal end cross-over platforms
  • Separate ladder stiles with wire ladder rungs on sides and ends
  • Detailed underframe including accurately detailed brake rods, levers, cylinder, reservoir, control valve and release rod
  • New 70-Ton Barber S-2 trucks with free rolling CNC-machined metal wheels with realistically contoured faces
  • Accurate paint colors and lettering, including correct graphics and placement as per the prototype
  • Authentic Kadee No. 158 couplers with detailed, semi-scale width coupler boxes
  • Properly weighted to meet NMRA RP-20.1 standards for smooth tracking and superior performance

Detail Differences Car

End 1 with vent
Side sill un-notched
Crank arm yes
Door YSD panel
Door stops large modified
Trucks 70-Ton


Set A - Nos. 1-6 Car

  • BCOL 80097
  • BCOL 80114
  • BCOL 80249
  • BCOL 80276
  • BCOL 80382
  • BCOL 80405


End 2
Side sill un-notched
Crank arm yes
Door YSD panel
Door stops small
Trucks 70-Ton


Set B - Nos. 7-12

  • BCOL 80166
  • BCOL 80223
  • BCOL 80251
  • BCOL 80301
  • BCOL 80330
  • BCOL 80815


For more information on the NSC 5092 cf Combo Door Box Car,
and other paint schemes available, click on the link below

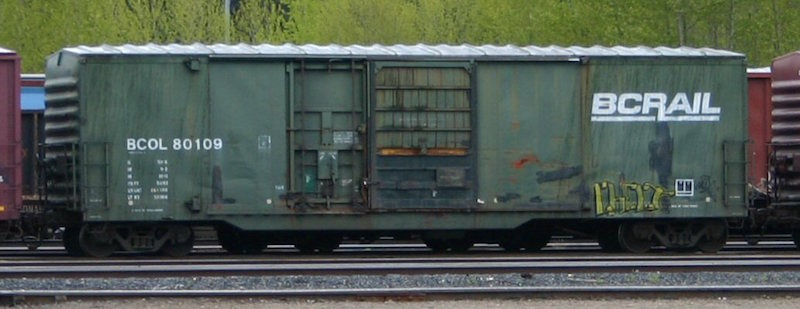

Photo courtesy of Colin Restorick

$239.98 US
