NARC - HO Scale - NSC 5092 Cu Ft - 50ft Boxcar - Canadian National (BCOL) (Brown with White Lettering) (rebuilt cars with Teams Free Rolling Panel Door and Vents) 12 road numbers available in 2 different 6 car sets (A and B) - Version 16 / 18 (SKU 11-34001009)

Available On: May 1, 2023

First Delivered 1972 / 100000 series car with replacement door and vents for use in Kraft Paper service



The Pacific Great Eastern/British Columbia Railway received 1,785 of these boxcars from National Steel Car between 1971 and 1973, making them the most numerous boxcar on the railway.  They were seen all across Canada and the United States in lumber service.

From 1989 they were rebuilt for pulp service and many have continued in service with CN since 2004.

North American Railcar Corporation will produce models representing the cars built in 1971 and 1972, and those rebuilt for pulp service by the railway.

Applicable series - BCOL 80000-80455 Modified/repainted starting 1989

Roofs:  Equipped with NSC 15-panel riveted Bow-Tie design.

Ends:  Equipped with Type 2 ends.

Doors:  Equipped with YSD 6-foot auxiliary plug door and YSD 8-foot 6/6/6 sliding main door with lift handle.

Plug Door Stops:  Equipped with large plug door stops.

Hand Brakes:  Equipped with a Universal hand brake housing and detailed hand brake wheel.

Trucks:  Equipped with 70-ton Barber S-2 trucks with free rolling 33" machined wheels.

Model Features:

  • Meticulously researched
  • Highly detailed roof including rivet detail on the seam caps and along the sides and ends
  • Highly detailed NSC Type 2 end without rivets between the horizontal ribs
  • Un-notched side sill with Type 1 stirrup steps
  • 14-foot door opening
  • Detailed YSD auxiliary plug door including separate crank rods/rollers and handle
  • Detailed YSD 9-panel replacement main sliding door with separate tack boards
  • Separate crank rod added to the top of the plug door
  • Separate, detailed door tracks
  • Detailed small plug door door stops
  • Detailed Universal hand brake housing and separate brake wheel, plus detailed bell crank
  • Etched metal end cross-over platforms
  • Separate ladder stiles with wire ladder rungs on sides and ends
  • Type 1 vent covers (for baled wood pulp and paper service) along the roof and floor lines
  • Detailed underframe including accurately detailed brake rods, levers, cylinder, reservoir, control valve and release rod
  • NARCorp's popular 100-ton Barber S-2 trucks with free rolling CNC-machined metal wheels with realistically contoured faces
  • Accurate paint colors and lettering, including correct graphics and placement as per the prototype
  • Authentic Kadee No. 158 couplers with detailed, semi-scale width coupler boxes
  • Properly weighted to meet NMRA RP-20.1 standards for smooth tracking and superior performance

Detail Differences Car

End 2
Side sill un-notched
Crank arm yes
Door YSD panel
Door stops small
Trucks 100-Ton

Side Vent Type 1


Set A - Nos. 1-6 Car

  • BCOL 100027
  • BCOL 100270
  • BCOL 100289
  • BCOL 100401
  • BCOL 100402
  • BCOL 100403


End 2
Side sill notched
Crank arm yes
Door YSD panel
Door stops small
Trucks 100-Ton

Side Vent Type 1


Set B - Nos. 7-12

  • BCOL 100022
  • BCOL 100043
  • BCOL 100183
  • BCOL 100085
  • BCOL 100238
  • BCOL 100413


For more information on the NSC 5092 cf Combo Door Box Car,
and other paint schemes available, click on the link below

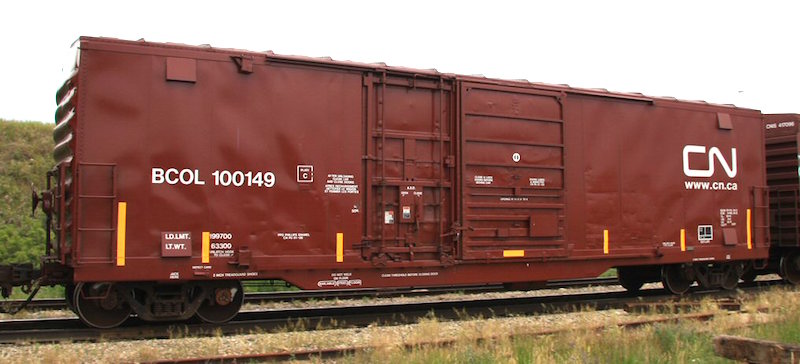

Photo courtesy of Mike Nyiri

$239.98 US
