NARC - HO Scale - NSC 5092 Cu Ft - 50ft Boxcar - BC Rail (BCOL) (Dark Green with White Lettering/ BC Rail Logo no underline) single car - Version 10 (SKU 11-34001005-single)

Available On: May 1, 2023

First Delivered 1972 / Repainted in 1985

Introduction

THE NATIONAL STEEL CAR 5092 CU. FT. COMBINATION DOOR BOXCARS


The Pacific Great Eastern/British Columbia Railway received 1,785 of these boxcars from National Steel Car between 1971 and 1973, making them the most numerous boxcar on the railway.  They were seen all across Canada and the United States in lumber service.

From 1989 they were rebuilt for pulp service and many have continued in service with CN since 2004.

North American Railcar Corporation will produce models representing the cars built in 1971 and 1972, and those rebuilt for pulp service by the railway.


Applicable series - BCOL 40000-40399 (built 9=10/71), repainted starting 1985

Roofs:  Equipped with NSC 15-panel riveted Bow-Tie design.

Ends:  Equipped with Type 1V ends.

Doors:  Equipped with YSD 6-foot auxiliary plug door and YSD 8-foot 6/6/6 sliding main door with lift handle.

Plug Door Stops:  Equipped with large plug door stops.

Hand Brakes:  Equipped with a Universal hand brake housing and detailed hand brake wheel.

Trucks:  Equipped with 70-ton Barber S-2 trucks with free rolling 33" machined wheels.

Model Features:

  • Meticulously researched
  • Highly detailed roof including rivet detail on the seam caps and along the sides and ends
  • Highly detailed NSC Type 1V end with a vent near the roof line and rivets between the horizontal ribs
  • Un-notched side sill with Type 1 stirrup steps
  • 14-foot door opening
  • Detailed YSD auxiliary plug door including separate crank rods/rollers and handle
  • Detailed YSD 9-panel replacement main sliding door with separate tack boards
  • Separate crank rod added to the top of the plug door
  • Separate, detailed door tracks
  • Detailed large (modified) plug door door stops
  • Detailed Universal hand brake housing and separate brake wheel, plus detailed bell crank
  • Etched metal end cross-over platforms
  • Separate ladder stiles with wire ladder rungs on sides and ends
  • Detailed underframe including accurately detailed brake rods, levers, cylinder, reservoir, control valve and release rod
  • New 70-Ton Barber S-2 trucks with free rolling CNC-machined metal wheels with realistically contoured faces
  • Accurate paint colors and lettering, including correct graphics and placement as per the prototype
  • Authentic Kadee No. 158 couplers with detailed, semi-scale width coupler boxes
  • Properly weighted to meet NMRA RP-20.1 standards for smooth tracking and superior performance

Car Details:

End 2
Side sill notched
Crank arm yes
Door YSD 6/6/6 with forks
Door stops small
Trucks 70-Ton



Set A - Nos. 1-6 Car

  • BCOL 5667
  • BCOL 5744
  • BCOL 5788
  • BCOL 40797
  • BCOL 40835
  • BCOL 40836

Set B - Nos. 7-12

  • BCOL 5656
  • BCOL 5731
  • BCOL 5799
  • BCOL 40791
  • BCOL 40832
  • BCOL 40907

For more information on the NSC 5092 cf Combo Door Box Car,
and other paint schemes available, click on the link below


click_here_HO_scale

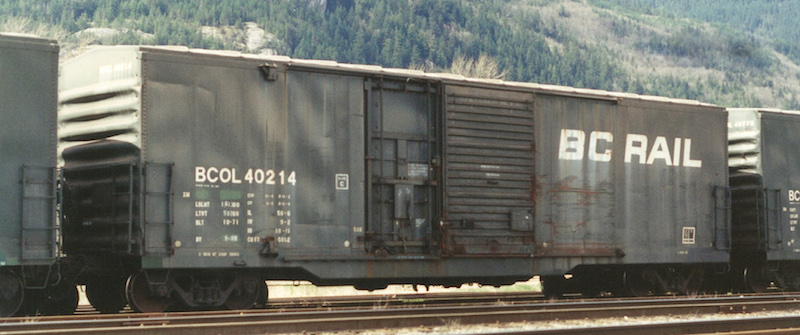

Photo courtesy of Earl Minnis







$46.00 US
