NARC - N Scale - PS 5077 Cu Ft - 50ft Boxcar - Lot 9832-2 - Montana Rail link (MRL) (Blue with White Lettering) single car (SKU 11-13004004-single)

Available On: September 1, 2020

Body Version 9832-2 Car (with 10 side posts)


Lot 9832 Version 2 – MRL (lions head)


Lot 9832 was Pullman’s fourth order for their 5077 cubic-foot single door box cars, built at the Bessemer, Alabama plant 4=6/76. 600 cars were built for American Rail Box Car Company for general service and placed into series RBOX 21000-21599 (class XPF11A). In 1983, 360 cars from RBOX 21000-21359 were transferred to Union Pacific ownership and put into the UP 130800-131159 series, while RBOX 21360-21599 (240 cars) were transferred to UP 130400-130637. In 1997 UP 130800-131151 were transferred to MRL 21457-21599 and to SSAM 41500-41599. During 1998, 55 cars were transferred to MRL 21620-21674 and painted into MRL’s blue livery with the large white “Washington Group” logo with the lions head. Features include:

  • Type 2 body with 10 side posts (5 on each side of the 10-foot centered door) with all 10 side posts being fabricated from hat-section channels
  • Type 2 side sill
  • Pullman’s proprietary 15-panel “bow-tie” roof
  • Pullman’s 5/5 “sine-wave” corrugated ends
  • RCS replacement 6-panel sliding doors
  • Universal hand brakes
  • Type 3 stirrup steps
  • Rigid (non-cushioned) underframe
  • Horizontal-lever brake gear
  • NARCorp high performance/low friction 70-ton ASF Ride Control trucks with 33” diameter metal wheels
  • Genuine Kadee #58 semi-scale magnetic couplers


This highly detailed replica of Pullman Standard’s 5077 cubic-foot single door box car (Lot 9832) has been meticulously researched and designed and produced in plastic with accurate details in plastic, wire and etched metal. North American Railcar is pushing the technology envelope and offering model railroaders cars that they could otherwise never expect to be produced. The Lot 9832 PS 5077 cubic-foot box car is another example.


Road Numbers:

  • MRL 21656
  • MRL 21623
  • MRL 21654
  • MRL 21633
  • MRL 21655
  • MRL 21638


For more information on the PS 5077 single door box car, click:

More Information

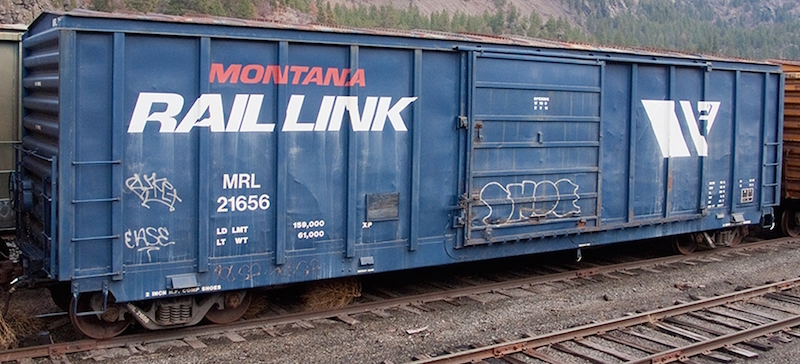

Photo courtesy of Eric Larson

$29.98 US
