Now the Biggest Name in Sound
is also the Biggest Name in Value!

Introducing Econami, our all-new value line of sound decoders.
Econami is a budget-friendly solution for adding quality sound
and fun features to all of your locomotives - starting at $79.95.

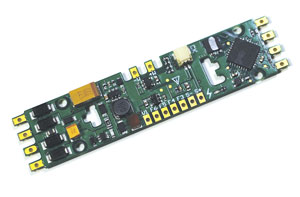

   SoundTraxx sound decoders are designed to easily add sound and digital operation to your locomotives.  With several different circuit board designs available, these dual-mode (DC analog and Digital) decoders can be installed into many popular DCC Ready locomotives or as an upgrade to DCC and Sound-Equipped locomotive models on the market today.  These decoders are also able to spruce up that classic pre-DCC super-detailed locomotive you completed years ago.  Whether the locomotive is DC (analog) only, DCC ready or sound-equipped, SoundTraxx decoders can provide a sound decoder option that is right for the job.
   Multiple selections of sounds are pre-loaded into the decoders to allow quick and easy customizing; these selections allow you to match the model that the decoder is installed into,without any complicated or lengthy download processes. With the ease of matching the sound to your model, you’ll get more time at the throttle!
    The Econami Steam decoder is preloaded with 4 exhaust chuffs, 16 whistles, 7 bells (with multiple ring rates), multiple air compressors, dynamos, couplers, and more!  Econami Diesel decoders are loaded with 5 prime movers, 16 horns, 7 bells (with multiple ring rates), multiple compressors, couplers, and more!   Econami Electric decoders are equipped to reproduce a variety of sounds, from a heavy electric locomotive all the way down to a trolley or streetcar, with 16 horns, selectable bells, couplers, and more!
    Adding sound decoders to your locomotives increases the enjoyment and operation experience of your layout by bringing in railroad rules regarding lights, horn or whistle, and bell operation, as well as prototypical sounds of the locomotive working as it travels across your modeled part of the world.  SoundTraxx decoders give your locomotivesrealistic sound to match the layout you have built!

The Econami line currently includes five formats:

ECO-100 - The smallest sound decoder, this micro 1-amp, universal-style format is ideal for small models with minimal space. It includes an optional capacitor or can be wired to a CurrentKeeper (P.N. 810140) to maintain performance during brief power interruptions.

FEATURES:
Dimensions: 27 x 10.5 x 5mm
Motor Stall Current: 1A Max.
Function Outputs: 4
Function Current: 100mA (each output) Max.
Audio Amplifier: 1W, 8-Ohm Load
DCC Track Voltage: 10V - 22V

ECO-200 - This 2-amp, universal-style format is ideal for models from HO to S, with a stall current not exceeding 2A. It includes a quick-plug for easy use of a CurrentKeeper (P.N. 810140) to maintain performance during brief power interruptions
FEATURES:
Dimitions: 35 x 18 x 6mm
Motor Stall Current: 2A Max.
Function Outputs: 6
Function Current: 100mA (each output) Max.
Audio Amplifier: 2W, 8-Ohm Load
DCC Track Voltage: 10V - 22V

ECO-21P - This 1-amp digital sound decoder plugs into models equipped with an NMRA 21-pin connector.
FEATURES:
Dimensions: 30.5 x 15.5 x 6.5mm
Motor Stall Current: 1A Max.
Function Outputs: 6
Function Current: 100mA (each output) Max.
Audio Amplifier: 2W, 8-Ohm Load
DCC Track Voltage: 10V - 22V

ECO-PNP - This 2-amp, universal-style digital sound decoder is suitable for a variety of scales. It
includes a connector to add a CurrentKeeper (P.N. 810140) to maintain performance during brief power interruptions.
FEATURES:
Dimensions: 74 x 17 x 5mm
Motor Stall Current: 2A Max.
Function Outputs: 6
Function Current: 100mA (each output) Max.
Audio Amplifier: 2W, 8-Ohm Load
DCC Track Voltage: 10V - 22V

ECO-400 - This 4-amp, universal-style digital sound decoder is suitable for a variety of scales. It includes a connector to add a CurrentKeeper (P.N. 810140) to maintain performance during brief power interruptions.ECO-400 Features:
FEATURES:
Dimensions: 69 x 30.5 x 14mm
Motor Stall Current: 4A Max.
Function Outputs: 6
Function Current: 100mA (each output) Max.
Audio Amplifier: 3W, 8-Ohm Load
DCC Track Voltage: 10V - 26V

Econami Features:
• High-quality 16-bit sound
• 40+ sound effects in each version
• Selectable exhaust chuffs or prime movers
• Function-activated brake with synchronized sound effect
• 7-Band Equalizer
• 20 Hyperlight effects
• Hyperdrive2 advanced motor control and Switching Mode for enhanced slow-speed control
• Motor-synced Dynamic Digital Exhaust (steam)
• Standard, 3-point, and user-loadable speed curves
• 28-function support, plus directional and E-Stop functions
• Flex-Map function mapping to easily assign any function to any function key
• Operates on DCC and DC layouts

Steam Sound Effects
4 exhaust chuff selections (light, medium, heavy, and geared, 2- or
3-cylinder, plus articulated settings), 16 whistles, 4 airpumps, 4 dynamos,
6 bells, 3 couplers, cylinder cocks, blowdown, blowers, water stop, brake
squeal/release, and more!

Diesel Sound Effects
5 prime mover selections (EMD 567, EMD 645T, EMD 710T, GE FDL-16 modern, and ALCO 244), 16 airhorns, 7 bells, 2 air compressors, engine startup, shutdown and exhaust through 8 notches, dynamic brake, poppet valve, brake squeal/release, and more!

Electric Sound Effects
16 air whistles or airhorns, 6 bells, 2 air compressors,
3 couplers, pantograph extend/retract, contactor camshaft, generator, poppet valve, blower fans, pneumatic doors, stop request bell, brake squeal/release, and more!
