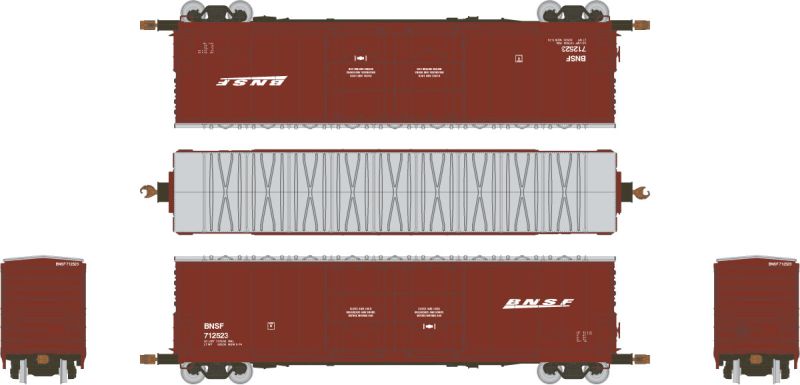

ScaleTrains - Kit Classics - HO Scale - Evans 5100 cu ft RBL 8 ft Double Plug Door Boxcar Kit - Burlington Northern Santa Fe (BNSF) #712546 - Oxide Brown w/Gray Roof & White Lettering & BNSF Wedge Logo (SKU 6504-SXT1063)

Available On: January 1, 2017

Introduced during the late 1960s, the Evans 5100 Cubic Foot (cf) Insulated Double-Plug-Door Boxcar was created to meet the growing demands of shippers. Heavy interior insulation and optional internal load restraints led to the Association of American Railroads (AAR) classification of "RBL” - Refrigerator, Bunkerless, equipped with Load restraining equipment. These cars were designed to protect cargo from the elements and extreme temperature swings without the use of mechanical refrigeration or heating equipment.

The 16' wide door opening made loading and unloading easier plus the closed double-plug-doors created a smooth, sealed opening inside the car. In addition, these cars included cushioned underframes so they were popular with shippers of delicate items like canned goods, bottled products and foodstuffs. Shippers of finished lumber such as wood veneers also found these cars useful to protect their delicate products while in transit. The Evans 5100 cf Boxcar helped prevent warpage and other damage that would be possible when shipped via plain boxcars or flatcars.

Developed from builder blueprints and extensive photo documentation, this freight car kit represents a typical Evans-built 5100 cubic foot RBL boxcar or USRE "clone". "Clones" were built in USRE facilities to Evans specs. Lasting from the late 1960s well into the 2000s, the Evans 5100 cf Boxcar has served a variety of railroads and private owners. On your layout, they will be at home servicing industries including canneries, beverage bottlers or distributors, food distributors, lumber mills, and lumber distributors. They can also be used as "bridge" traffic between originating and destination railroads. In short, these cars could be found on nearly every railroad in North America during their lifetime.

As part of the ScaleTrains Kit Classics freight car series, the Evans 5100 cf Boxcar is designed to be affordable, easy-to-assemble, and rugged for years of enjoyment.

Common Features:

  • Multiple road numbers
  • Separately applied handbrake wheel
  • Finely cast underbody and brake system
  • ASF ride control trucks
  • Machined metal wheels
  • Body mounted semi-scale Type E knuckle couplers
  • Replacement parts available
  • Minimum radius 18”






$17.99 US
