Digital Sound Decoders

Now the biggest name in sound is also the biggest name in value! Starting at $79.95 MSRP, Econami is a full-featured line of digital sound decoders designed with value in mind.

Available in five formats to suit a variety of steam and diesel locomotives, Econami provides high-quality, 16-bit sound, Hyperlight lighting effects, and Hyperdrive2 advanced motor control for enhanced realism. New features include Flex-Map technology, an easy-to-use method for assigning any function to any function key.

The Econami line includes our smallest sound decoder, the ECO-100, measuring just 27mm x 10.5mm x 5mm, as well as the ECO-400 4-amp version for models requiring a little more “beef.”

The 2-amp ECO-200 and the ECO-PNP decoders are our two new additions to the Econami line. The ECO-200 is a new universal-format Econami suited for a variety of scales, HO to S. The ECO-PNP will easily replace the manufacturer-installed light board for a variety of models and is well suited to large steam tenders. Rounding out the line, the 21-pin ECO-21PNEM mates nicely to any model with the NEM-supported 21-pin socket.

Steam and diesel versions include a selection of exhaust chuffs or prime movers, along with 16 whistles or airhorns to suit the most popular models. In addition, each decoder features multiple options for airpumps or compressors, bells, and couplers for even more customization.

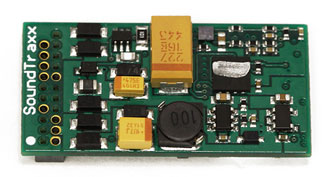

ECO-21PNEM

This 1-amp digital sound decoder simply plugs into models equipped with an NEM-supported 21-pin socket.

ECO-21PNEM Specifications

Dimensions:	30.5 x 15.5 x 6.5mm	Max. Motor Stall Current:	1A
Max. Function Current:	100mA (each output)	Function Outputs:	6
Audio Amplifier:	2 Watts, 8-Ohm Load	DCC Track Voltage:	7.5V – 22V

Econami Features

• High-quality 16-bit sound
• 40+ sound effects and 12 polyphonic sound channels
• Selectable sound effects to fit most operating preferences: Select from popular prime movers and exhaust chuffs, 16 airhorns or whistles, and up to 7 bells. Econami also includes multiple selections for air compressors or airpumps, dynamos, and couplers.
• 7-Band Equalizer
• Function-activated brake with synchronized sound effects
• Updated, easy-to-use CV roster for customizing motor, lighting, and sound settings
• Up to six lighting outputs, allowing a selection from 20 Hyperlight lighting effects
• Back-EMF Hyperdrive2 advanced motor control
• Standard, 3-point, and user-adjustable speed curves
• 28-function support, plus directional and E-Stop functions
• Flex-Map function mapping technology: Allows you to map any of Econami’s effects to any F0-F28 function key, control directionality of lighting outputs, configure any effect to respond automatically to changes in direction and movement, and ability to map an effect to the emergency stop button if desired.
• Function-activated grade-crossing signal
• Function to improve switching operations: Activating Switching Mode will reduce throttle by 50% and inactivate all momentum CV settings, allowing the decoder to respond instantly to throttle changes.
• Support for easy CurrentKeeper installation to prevent momentary power losses during operation
• Compatible with NMRA DCC Standards & Recommended Practices

Compatible Speakers

28mm (1") Round Speaker (678-810153)

Suitable for many HO and larger models.

Dimensions: 28 x 4.5mm(D)
Frequency Response: 320 Hz - 18kHz
Power: 1 Watt (Nominal) 2 Watts (Peak)
Impedance: 8 Ohms

40 x 28.5mm Oval Speaker (678-810078)

Great sound if you can fit this one!

Dimensions: 40 x 28.5 x 11.3mm(D)
Frequency Response: 250Hz - 20kHz
Peak Power: 2 Watts
Impedance: 8 Ohms

35 x 16mm Oval Speaker (678-810113)

This small oval speaker is ideal for narrow hood diesels.

Dimensions: 35 x 16 x 8mm(D)
Frequency Response: 250Hz - 13kHz
Power: 1 Watt (Nominal) 2 Watts (Peak)
Impedance: 8 Ohms

35 x 20mm Oval Speaker (678-810115)

If you have more space, this speaker is great for larger models.

Dimensions: 35 x 20 x 5.3mm(D)
Frequency Response: 300Hz - 5kHz
Peak Power: 2 Watts
Impedance: 8 Ohms
