Designed from builder blueprints, the all-new Gunderson-GIMSA/Concarril 5188 Cubic Foot Covered Hopper features all of the detail you have come to expect from our Rivet Counter line. The model features three different body styles, two different hatch types, two different outlet gate options, and numerous factory-applied parts. These cars are common in unit grain trains as well as mixed manifest freights and can often be found alongside Trinity 5161cf Covered Hoppers.

History

Grain and grain products are one of the leading commodities hauled by railroads today. Typically carried in covered hoppers, designs have evolved over the years to increase the efficiency of handling this vital commodity. One of the more popular designs to emerge in recent years is the Gunderson-GIMSA/Concarril 5188cf Covered Hopper.

The Gunderson 5188cf is a large 3-bay hopper that measures 58’ over the coupler centers and is built to fit within the Plate C clearance diagram. These all-steel cars feature a capacity of 5,188 cubic feet and are equipped with trough-style loading hatches for efficient loading. The hatch covers can either be made of metal or non-metal materials depending upon customer specifications. Each of its three bays features a 30” x 30” outlet opening, which can be outfitted with a variety of outlet types depending upon customer requirements and/or commodities to be handled.

With the production of these cars starting in 2007, they have gone through several design changes including the quantity and width of panels used to construct the car sides, addition of two or four large horizontal ribs on the car sides, and placement and design of pulling loops.

Road Number Specific ScaleTrains

BNSF

1^st run road number (announced January 2018): 485059 Burlington Northern

2^nd run road number (announced January 2019): 485980 Colorado & Southern, 1^st run road number (announced January 2018): 485171 Santa Fe

486114 CB&Q, and 486742 Frisco

• Correct carbody for BN heritage logo
• From series 485000-485099
• Built 2007 in Mexico at Gunderson Concarril
• 10 intermediate panels with varying widths
• Two horizontal stiffening ribs
• Metal roof hatches

1^st run road number (announced January 2018): 486315 Northern Pacific

• Correct carbody for NP heritage logo
• From series 485100-486999
• Built 2007 in Mexico at Gunderson Concarril
• 10 intermediate panels, all the same width
• Metal roof hatches

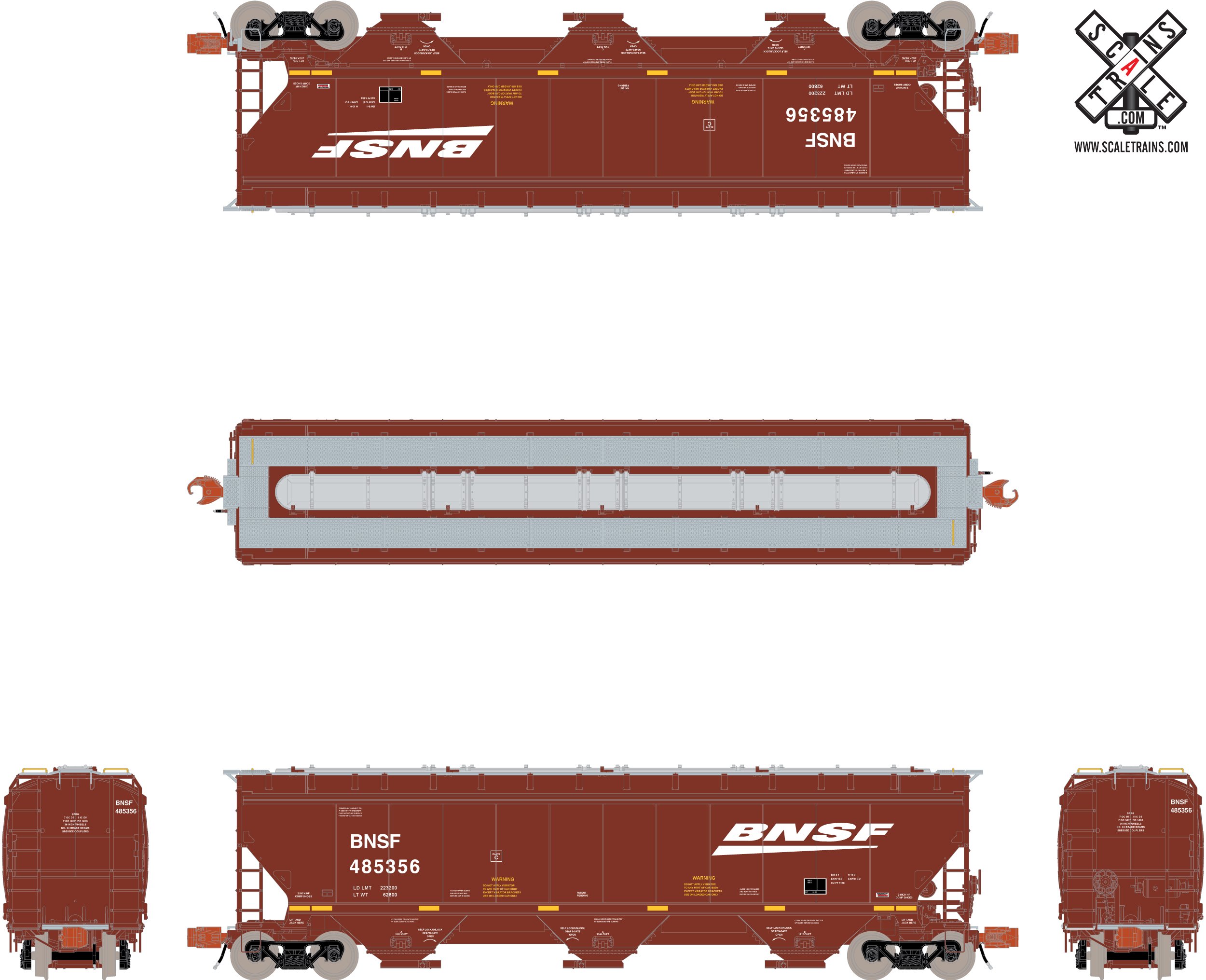

2^nd run road numbers (announced January 2019): 485356, 485495, 485613, 485713, 485791, 485814, 485827, 486499

• First time for BNSF in this body configuration
• From series 485100-486999
• Built 2007 in Mexico at Gunderson Concarril
• 10 intermediate panels, all the same width
• Metal roof hatches
• Color matched to Tru-Color Paint TCP-199 ATSF Freight Car Red

2^nd run road numbers (announced January 2019): 485010, 485019, 485339

1^st run road numbers (announced January 2018): 485131 and 485283

• BNSF wedge logo
• From series 485100-486999
• Built 2007 in Mexico at Gunderson Concarril
• 10 intermediate panels with varying widths
• Two horizontal stiffening ribs
• Metal roof hatches
• Color matched to Tru-Color Paint TCP-199 ATSF Freight Car Red

2^nd run road numbers (announced January 2019): 489010, 489046, 489113, 489127, 489178, 489327, 489454

1^st run road numbers (announced January 2018): 489046, 489059, 489079, 489109, 489113, 489141, 489178, 489208, 489221, 489282, 489327, 489343, 489426, 489454 489530 and No #

• BNSF wedge logo
• From series 489000-489536
• Built 2010 in Mexico at Gunderson Concarril
• 10 intermediate panels with varying widths
• Metal roof hatches
• Color matched to Tru-Color Paint TCP-199 ATSF Freight Car Red
•

Rivet Counter Gunderson 5188 Covered Hoppers Feature

• Fully assembled
• Up to 22 different road numbers
• Three (3) different bodies
• Metal or fiberglass roof hatches
• Photo-etched stainless steel see through roofwalk with metal grab irons
• ATP 30 X 30 Gravity Outlets
• Photo-etched stainless steel see through end platforms
• Factory-applied coupler cut levers, trainline hoses, and trainline pipe
• Separately applied brake cylinder and linkage, control valve, air reservoir with piping between the control valve and air reservoir
• Brake wheel, stand, and chain
• Plastic semi-scale Type E lower knuckle couplers – Micro-Trains® compatible
• ASF Ride Control trucks with finely rendered raised foundry data
• Printing and lettering legible even under magnification
• Weighted to Industry standards
• Operates on Code 55 and 80 rail
• Clear jewel box packaging safely stores model
• Minimum radius: 9 ¾”
• Recommended radius: 11”
