Tam Valley Depot - All Scales - DCC - Dual 3-way II Servo Decoder (SKU 7040-DTW101)
Available On: April 1, 2019
The Turtle is stall motor driver designed to run turnouts. It can be used with a number of popular stall motors including the TortoiseTM, SwitchMasterTM, the MP1, MP5, CobaltTM as well just about any 3-12V geared motor. It uses the TVD Fascia Controller for local control and DCC for remote control. It can also be powered with DC if the DCC control is not needed
Uses the Fascia Controller for local control and M-F jumper wires for wiring the motor. Unique features, speed trim pot, fascia controller, 1 Amp drive current (can wire an entire double crossover off of one board), local controller DCC lockout (address+1).
Need help deciding on which product you need?
See the Which servo driver and Which frog juicer decision tables.
Skill Level: Intermediate to control from pushbuttons to Advanced to connect to a signal system.

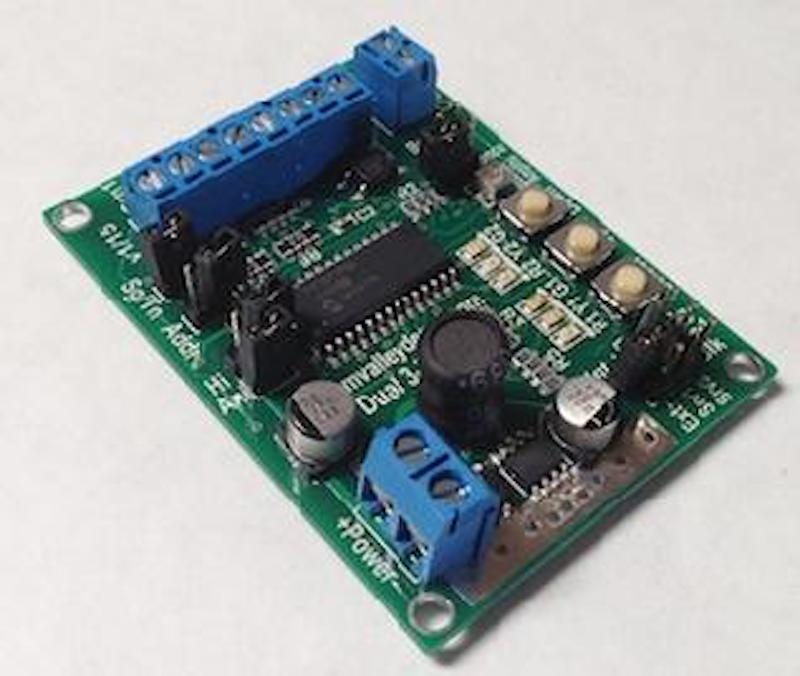

Dual 3-way III
The dual 3-way can be used to control 2 servos with 3 positions each. Typical uses are semaphores and 3-way stub switches. Comes with 2 I/O connectors that are used to connect to your signal system and/or indicator LEDs (or just use DCC).
|
|
Features
- Control two servos independently with 3 positions each
- Speed Controllable from very slow to very fast
- Drive circuitry for external LED indicators - common anode OR common cathode
- Inputs for momentary pushbuttons
- Bounce Simulation - blades bounce at end of throw
- Variable Bounce Amplitude
- DCC accessory decoder built in (can be used with JMRI PanelPro)
- Anti-backlash for stub switch center position ensures accurate positioning each time
- Time-delay option - simulates a signal system by turning from red to yellow to green with a time delay.
- Can be used with most signaling systems such as CMRI or Logicrailtech
This is the Mark III version updated in April 2015. It has a more powerful switching voltage regulator and larger easier to wire terminal blocks on the I/Os. The firmware is identical to Mark II.
(Note: not for 3-way turnouts, more properly known as lap turnouts, which are actually two overlapping but independent turnouts. For those use two servos driven by singlets or half of a quad.)
PDF of the Dual 3-Way III Manual
Tam Valley Depot Dual 3-way is featured in the cover article of the March 2012 Model-Railroad Hobbyist E-zine!
They wrote an extensive article on how I installed an operating semaphore on my Donner Summit layout. Download the issue by clicking on the image.
How to mount your servos to operate a dual-bladed semaphore using the L-brackets. The view is from the bottom below the semaphore. The two actuating wires will come up through the hole to be attached to the servo arms.
Video of the Dual 3-Way on my Donner Summit layout being used to run a lower-quadrant semaphore.
3 -way stub in Rico on Steve Harris' HOn3 Rio Grande Southern.
Here are some shots of the coming Dual 3-Way Servo Driver being used to drive a Tomar upper-quadrant semaphore. The action is controlled by a Logic Rail Tech Signal Animator.
Dual 3-way In Action
$34.95 US
Country of Origin: United States
