Tam Valley Depot - All Scales - DCC - Servo Centering Tool (SKU 7040-SRC001)

Available On: April 1, 2019

Tam Valley Depot

The Turtle is stall motor driver designed to run turnouts. It can be used with a number of popular stall motors including the TortoiseTM, SwitchMasterTM, the MP1, MP5, CobaltTM as well just about any 3-12V geared motor. It uses the TVD Fascia Controller for local control and DCC for remote control. It can also be powered with DC if the DCC control is not needed

Uses the Fascia Controller for local control and M-F jumper wires for wiring the motor.  Unique features, speed trim pot, fascia controller, 1 Amp drive current (can wire an entire double crossover off of one board), local controller DCC lockout (address+1).








Use this handy portable tool to keep your servos centered while you mount them under the layout.  The tool consists of a battery box connected to a small circuit board that continuously puts out a centering signal for the servo (1.5 ms pulse). Keeping your servos porperly centered while mounting is the key to making the servos work best. The battery box has an on/off switch to save your batteries when not in use. Everyone using servos for turnouts needs one of these.

Requires 3 AA batteries.

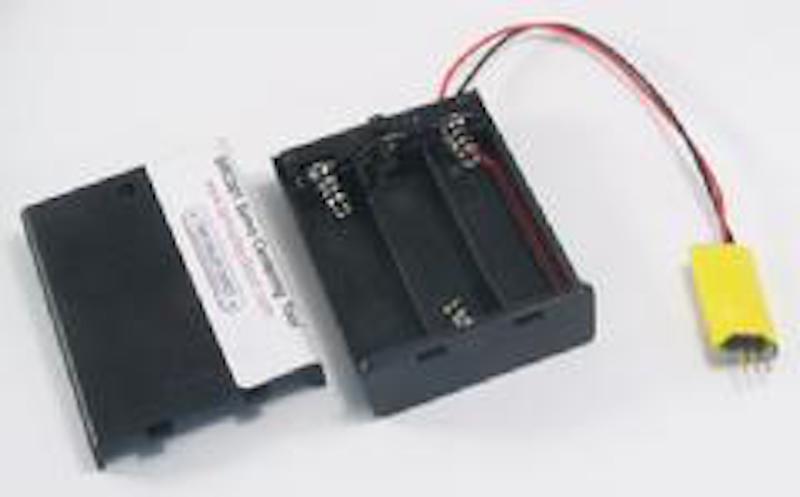

Shown with the battery cover off. Servo plugs in to yellow board at right. Use an extension cable to extend the length of the cord.






$12.95 US
Country of Origin: United States
