The Turtle is stall motor driver designed to run turnouts. It can be used with a number of popular stall motors including the TortoiseTM, SwitchMasterTM, the MP1, MP5, CobaltTM as well just about any 3-12V geared motor. It uses the TVD Fascia Controller for local control and DCC for remote control. It can also be powered with DC if the DCC control is not needed

Uses the Fascia Controller for local control and M-F jumper wires for wiring the motor.  Unique features, speed trim pot, fascia controller, 1 Amp drive current (can wire an entire double crossover off of one board), local controller DCC lockout (address+1).

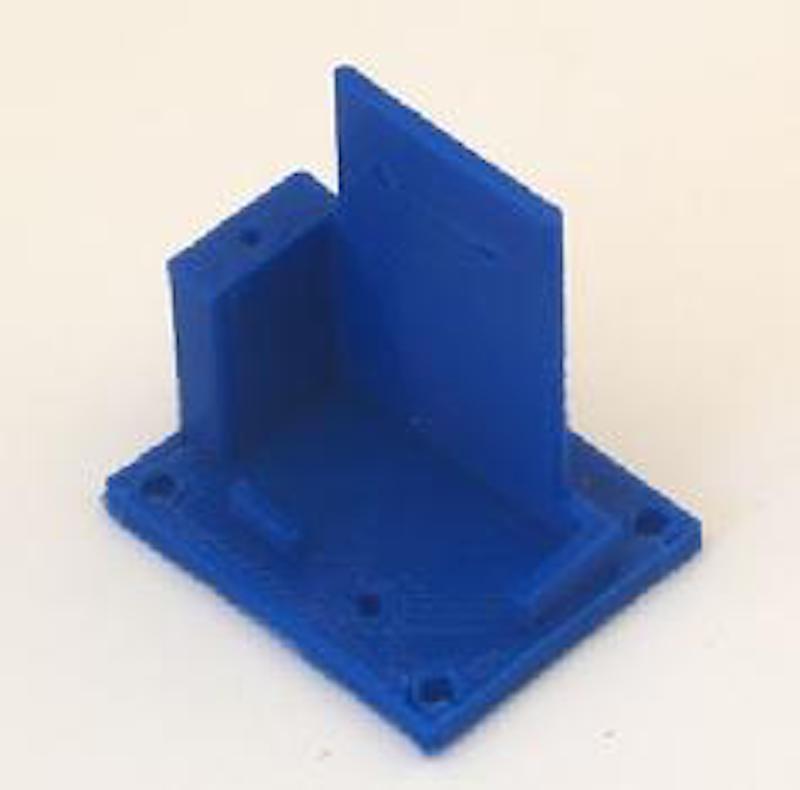

3D Printed Micro Servo Bracket Kit (servo not included)


This bracket is designed to mount underneath the layout and actuate the points with a spring wire.  It is the same bracket as used in our Micro Switch Machine.  However you are free to use this bracket in other creative ways if you feel the need to experiment.  Comes with a piece of foam tape for easy attachment to the layout and two 1/2" x #4 screws for permanent attachment.  A #4 screw fits snugly in the mounting holes so that when you are under the layout the screws will not fall in your face.  Also comes with a piece of music wire.

Specs

Actuating Wire- .032" steel music wire. Length - 5" before assembly; 3" usable length after assembly (maximum thickness of subroadbed + track height)

Bracket Size - 1 3/16" wide x 1.0" deep X 1 3/16" high

Fits servo size 0,87" (23mm) wide x .47" (12mm) deep (SG90, 9g servos).

Minimum mounting clearance under layout - 1.5"

Mounting Screws - #4 x 1/2" for bracket to layout; 1 screw (comes with servo) for attachment of servo to bracket

Material - PLA plastic

(Optional) Snap Switch - Digi-key EG4542-ND; mounting screw- Micro Fasteners LPP0205 - #2x 5/16" screw for plastic

Scales - Z to O
