The Turtle is stall motor driver designed to run turnouts. It can be used with a number of popular stall motors including the TortoiseTM, SwitchMasterTM, the MP1, MP5, CobaltTM as well just about any 3-12V geared motor. It uses the TVD Fascia Controller for local control and DCC for remote control. It can also be powered with DC if the DCC control is not needed

Uses the Fascia Controller for local control and M-F jumper wires for wiring the motor.  Unique features, speed trim pot, fascia controller, 1 Amp drive current (can wire an entire double crossover off of one board), local controller DCC lockout (address+1).

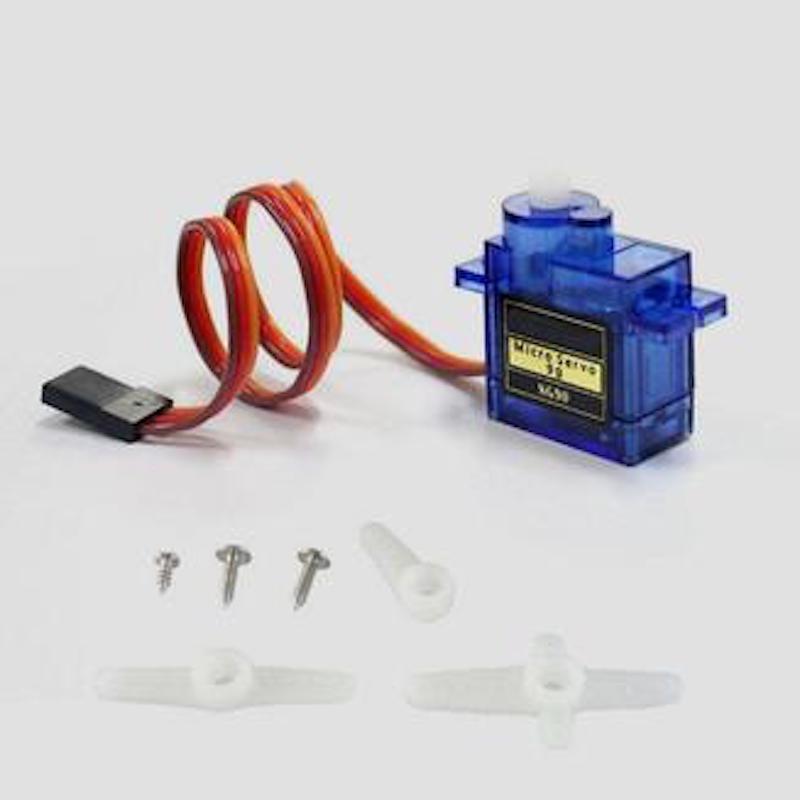

Miniature Servo (SG90)


Subminiature 9g servo.  These have plenty of power for hinged point turnouts and smaller rail (code 55 and smaller) solid point turnouts - if used with the servo mounting kit (SMK002 below) it can handle higher loads, up to code 100 non-hinged rail.  If the point rails are hinged then the rail size is not an issue - it has been used up to G scale. Our servo brackets (see below) are custom made to fit these servos. Size 1.25" wide (including mounting tabs) x 0.5" deep x 1.125" tall.  Servo lead about 7".  The label on the servo and the lead colors may vary between batches.  Works with all of our boards. Every servo is tested before shipping.
