The Turtle is stall motor driver designed to run turnouts. It can be used with a number of popular stall motors including the TortoiseTM, SwitchMasterTM, the MP1, MP5, CobaltTM as well just about any 3-12V geared motor. It uses the TVD Fascia Controller for local control and DCC for remote control. It can also be powered with DC if the DCC control is not needed

Uses the Fascia Controller for local control and M-F jumper wires for wiring the motor.  Unique features, speed trim pot, fascia controller, 1 Amp drive current (can wire an entire double crossover off of one board), local controller DCC lockout (address+1).

The Fascia Controller plug in to our servo controllers to provide an easy way to control your turnout.

Skill Level: Basic - simply plug in to board (micro singlet, SwitchWright, Octopus, Quad-PIC and QuadLN_S)

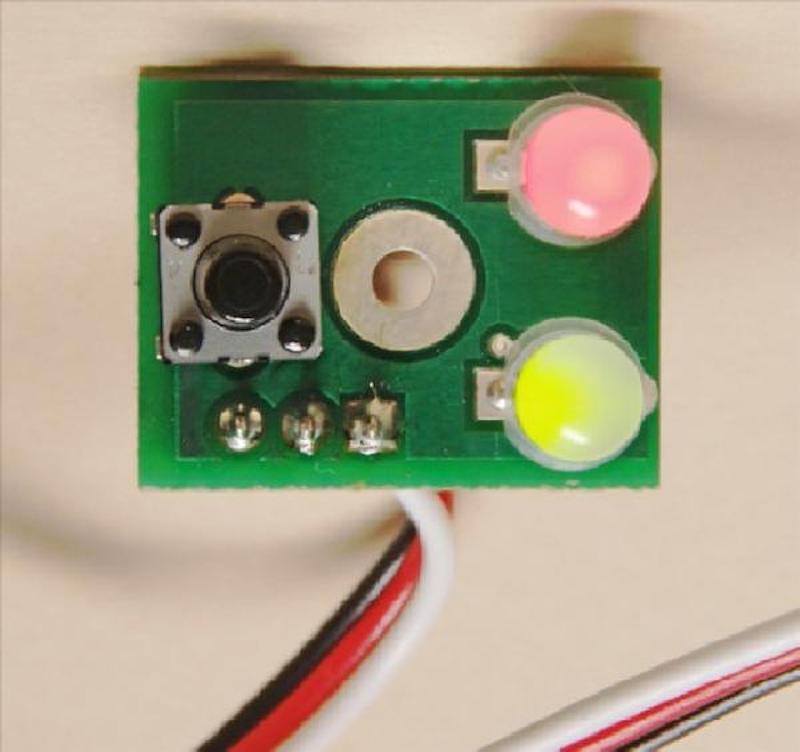

Bicolor Fascia Controller for Micro Singlet, QuadPIC, QuadLN, SwitchWright, Turtle and Octo III

Plug the fascia controller in to our servo controllers to both actuate the board and to indicate its status. There are 4 optional colors available.  The Red-Green will have one LED Red and the other Green, when the button is pushed the turnout will throw and the Red and Green LEDs reverse.  The Red-Red, Green-Green, and Yellow-Yellow will have one LED lit and the other dark.
