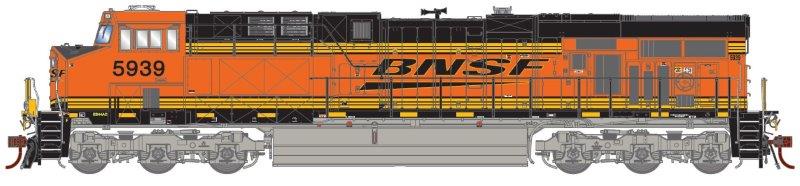

Athearn Genesis - HO Scale - ES44AC Diesel Locomotive - w/DCC & Sound - Burlington Northern Santa Fe (BNSF) #5939 - With PTC - Orange/Yellow/Black With Black Lettering (Era: 2005+) (SKU 141-83181)

Available On: January 1, 2021







Photo: Chris Wilson – https://www.youtube.com/watch?v=s1Mu3B5FLMg

Photo: Chris Wilson – https://www.youtube.com/watch?v=s1Mu3B5FLMg



PROTOTYPE INFO:

In 2002, GE released the first of a new series of locomotives that would replace the popular Dash-9 series. The ES44DC and ES44AC, commonly called GEVOs for General Electric Evolution series, were designed to meet the stricter diesel
locomotive emissions standards imposed by the EPA Tier II regulations. To meet the new standards, GE developed the 12-cylinder GEVO 12 engine. Both the bore and stroke were increased to produce the same 4400 horsepower as the older 7FDL16 16-cylinder engine. The new engine drives an alternator producing AC current that is rectified to DC current. On the ES44DC, this powers the traction motors. On the ES44AC, the DC current is “chopped” back into AC to power the
traction motors. The two models share a common 73’ 2” frame and external appearance.

The ES44DC and ES44AC external details have changed with almost every year’s new orders. These models are of the early version produced in 2005 and 2006 and include the nose door on the left side, two widely-spaced dynamic brake vents, X-panels on the electrical cabinet, side grab irons on the long hood and flush-mounted top radiator grilles and radiator compartment doors.



Union Pacific (UP)



LOCOMOTIVE FEATURES:

• Illuminated ditch lights

• Low or high front headlight per prototype

• Tinted cab windows

• Large antenna dome

• Small GPS dome

• See through dynamic brake intakes

• Two dynamic brake exhaust vents with wide spacing and flush housing

• Short auxiliary cab rear left-side doors

• Right side forward electrical cabinet with X-Panel

• Nathan K5HL horn

• Engine compartment side grab irons

• Flush radiator compartment doors

• Hand brake panel grille

• Flush heat exchanger housing and top radiator grilles

• 5000-gallon fuel tank

• Era: 2005+

• Minimum radius: 18”

• Recommended radius: 22”



GENESIS DIESEL LOCOMOTIVE FEATURES:

• Fully-assembled and ready-to-run

• DCC-ready features Quick Plug™ plug-and-play technology with 21-pin NEM connector

• Scaled from prototype resources including drawings, field measurements, photographs, and more

• Accurately-painted and –printed paint schemes

• Coupler cut levers

• MU hoses

• Trainline hose

• See through cab windows

• Full cab interior

• Walkway tread

• Fine-scale Celcon handrails for scale appearance

• Windshield wipers

• Lift rings

• Wire grab irons

• Detailed fuel tank with fuel fillers, fuel gauges, breather pipes, and retention tanks

• Sander lines

• McHenry scale knuckle couplers - Kadee compatible

• Genesis driveline with 5-pole skew wound motor, precision machined flywheels, and multi-link drivetrain for trouble free operation

• All-wheel drive with precision gears for smooth and quiet operation

• All-wheel electrical pickup provides reliable current flow

• Wheels with RP25 contours operate on all popular brands of track

• LED Lighting for trouble free operation

• Heavy die-cast frame for greater traction and more pulling power

• Packaging securely holds for the model for safe storage

• Replacement parts available



SOUND EQUIPPED MODELS ALSO FEATURE:

• Onboard DCC decoder with SoundTraxx Tsunami2 sound

• Sound units operate in both DC and DCC

• Full DCC functions available when operated in DCC mode

• Engine, horn, and bell sounds work in DC

• All functions NMRA compatible in DCC mode

• Excellent Slow speed control

• Operating lighting functions with F5 and/or F6

• Program a multiple unit (MU) lashup with lead unit only horn, bell, and lights

• Many functions can be altered via Configuration Value (CV) changes

• CV chart included



Canadian Pacific (CP) #8717

Canadian Pacific

ROAD NUMBER SPECIFIC FEATURES:

#8700 & #8717

#8703, #8714, #8723, #8727

As delivered configuration with steerable trucks  2010’s verison with Hi-Ad trucks



BNSF FEATURES:

• All units feature new BNSF style cab roof antennas

• Variety of in-service details per protype road number



ROAD NUMBER SPECIFIC FEATURES:

#5789 This unit suffered damage in late 2011/early 2012. This model features “primered” nose and hood doors and “replacement” electrical cabinets on the conductor’s side walkway — just like the prototype. Also featured is the replacement nose access door aquired from a Santa Fe unit.

#5915 Silver “replacement” plow

#5939 Replacement Nathan K3LA horn

#5950 Replacement Nathan K3LA horn



UP FEATURES:

• Unique paint colors to represent in-service appearance

• Different colored “replacement” equipment doors per prototype road number



ROAD NUMBER SPECIFIC FEATURES:

#5293: In 2018 UP shifted repainting locomotives to the new “simplified” version. This version will be used, moving forward, on future locomotives across the fleet.

#5408 Primered “replacement” hood doors on conductor’s side, along with scorch marks

#5454 Scorch marks on conductor’s side — an apparent indicator of a turbo fire



Order Due Date: January 24, 2020

Anticipated Delivery Date: January 2021


new gukrefer









$329.98 US
