The mid-1970s brought about an urgent need for new coal hoppers based upon a combination of robust utility and export demand as well as an aging coal fleet composed of mostly smaller-capacity, 50 and 70-ton coal hoppers. Additionally, the opening of new low-sulfur coal mines in the Powder River Basin (PRB) region of Wyoming and Montana introduced a new supply of coal to the market, driving new coal hopper orders.





Pullman-Standard was one of several railcar manufacturers that addressed this urgent demand for modern “Triple” 100-ton hoppers with new designs produced in 1975-1976. While western and midwestern customers purchased Pullman’s 4000 cubic foot models, the eastern roads purchased Pullman’s 3526/3600 cubic foot hoppers, which effectively had shorter sides to accommodate higher density coal. We have produced both the “western” and “eastern” Pullman-Standard coal hoppers, and we offer models in multiple railroad-specific variations. The signature identifying feature for most of these cars? The distinctive Pullman “trapezoid” indentations on the flat panels (not all cars had flat panels, but most did). Here is a shot of a Burlington Northern PS4000 car, where we have highlighted the trapezoid on the side of one of the panels:





These Pullman-Standard cars stand out and look visually different from other “triple” 100-ton coal hoppers from that era. Besides the “trapezoid” on the panels, each car also has shaker bracket parts applied to the top chord in eight locations.





Additionally, some phases of “western” Pullman-Standard cars have one “offset” truck bolster to accommodate the longer slope sheet found on the rotary end of the car. This means that on the B-end of the car, the axle “sticks out” past the end of the car! It also means that the slope sheet angles are different on each end of the car.





The largest buyer of the Pullman-Standard PS4000 HT coal hoppers was Burlington Northern (BN). BN bought these cars for the new railroad that was built into the Powder River Basin. The BN (and subsidiary Colorado and Southern) cars were delivered in four total orders in 1975-1976. The BN scheme is easily one of the sharpest schemes applied to these Pullman cars. The classic Burlington Northern billboard scheme was applied with white stencil lettering on a black car, with white rectangles on the end and slope sheets to designate the rotary end. Some of the car fleet was repainted in the 1980s with full white ends and we will offer those down the road, but these samples from BN’s massive fleet of almost 1,200 cars are the statistically relevant scheme for BN’s largest coal hopper fleet. These models have the distinctive Pullman “trapezoid” indentations on the side panels, and the “short B end, long A end” body configuration with offset truck bolster spacing. This 1975+ scheme lasted into the BNSF era so is relevant for all modelers.





BN bought these Pullman 3-bay hoppers to haul Powder River Basin coal. Here is a train of these cars at the loadout at Decker MT on their maiden voyage behind the trailing locomotive in the consist, a former CB&Q U28C.



More than two decades later, the cars were still used by BNSF. While utility coal is most often thought of as the use for hoppers, don’t forget that they were also used to deliver coal to ocean/river/lake transload operators. Here is a train of BN triple hoppers returning from dumping coal at an ocean transload facility in Roberts Bank, Vancouver, Canada, operating behind “old school” SD40-2s (since by this point SD70MACs had infiltrated most coal moves). This train is operating across MRL and is at the summit of Bozeman Pass headed to Laurel MT, where it will interchange back to BNSF to continue its return trip back to the Powder River Basin.





For a certain period of time, BN (and UP) interchanged unit trains of coal to Chicago Central and Pacific (CC&P), a regional who operated the former Illinois Central from Council Bluffs to Chicago. CC&P hauled these coal trains from Council Bluffs to a coal transload operation on the Mississippi River at E. Dubuque IL. Here a BN coal train of these three-bay hoppers is dumping coal on CC&P at E. Dubuque IL:





Here is a shot of a train after it had finished dumping coal, operating on BN trackage rights (ironically) to get to the former Illinois Central to cross the Mississippi River and proceed across Iowa to interchange the train of coal empties back to the BN at Council Bluffs. (There are also photos of C&NW/UP coal hopper sets in this service, with C&NW 3-bay hoppers and UP quad hoppers like the Tangent models).





Chicago & North Western (C&NW) operated into the Powder River Basin from the South end on a new alignment, and used UP haulage rights between Fremont/Council Bluffs and Joyce NE (Near South Morrill) to access this “island” railroad segregated from the core C&NW system. Like BN, C&NW also needed significant new cars for Powder River Basin coal and for car sharing with UP in and out of the Hanna Basin area of Wyoming. Here is a shot from 1978 taken at Cheyenne WY where staging of trains to and from the Hanna Basin took place. Note the C&NW cars next to the UP system quad hoppers (also a Tangent Scale Models product).





C&NW applied an all black paint scheme to their Pullman-Standard cars. C&NW’s paint and lettering specification was for the classic “ball and bar” scheme with white painted ends to designate the rotary end of the car. Interestingly, this specific series of C&NW cars did not have the distinctive Pullman-Standard trapezoids on the car sides but instead had flat panels. These cars were similar to the BN cars because they had the “short B end, long A end” body configuration with offset truck bolster spacing, although they had ladders on the left side of the car instead of grab irons.





Chessie/B&O, Chessie/WM, and Southern each purchased the “eastern” PS3526/3600 HT coal hoppers. The engineering and appearance of the PS3526/3600 HT models is identical to the aforementioned PS4000 HT model, including the “trapezoidal” indentations in the car sides, however they have lower car sides than the PS4000 HT. A key difference in the eastern car design is the lack of rotary equipment, so the bolsters are symmetrical like typical freight cars.

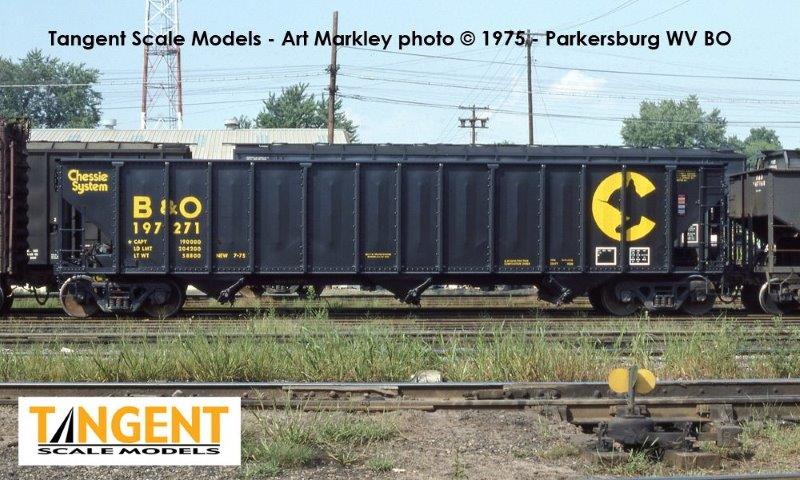

The Chessie B&O series of coal hoppers was large – totaling 2,500 cars. These cars have black carbodies and include Chessie yellow graphics including the Chessie cat logo and the “Chessie System” stenciling in the upper left side panels. These cars also have “B&O” and road number stenciling applied to the underframe. While the Chessie System lines operated a myriad of coal hopper types, this one looks completely different from the others. Here is a group of them loading at the Eastern Associated Coal Harris Mine in Harris WV.





Our system of 3526/3600/4000 models being released today build up to represent five major prototype variations. Starting with the “western” or PS4000 HT variations (not to be confused with our “LO” covered hopper models), our system of models includes three different body shells and their corresponding production details, reflecting the most significant designs Pullman-Standard produced from 1975-1976. Our model is a dimensionally-accurate replica of the real car, and includes build details such as brake housings, brake wheels, and truck bearings. This replica includes our “near-scale” draft gear box including side “key” detail. Our ready-to-operate replica is finished with coupler lift bars, rubber air hoses, Kadee® scale couplers, CNC-machined wheels, and sufficient hidden weights to ensure the model operates as good as it looks. Finally, our model includes a realistic “flood load” exactly modeled from example PRB load practices in these Pullman-Standard cars.





The Tangent Scale Models “eastern” or PS3526/3600 HT includes two primary build variations to reflect the significant production details found on the cars purchased by Chessie/B&O, Chessie/WM, and Southern. The engineering and appearance of our PS3526/3600 HT models are identical to the aforementioned PS4000 HT model, including the “trapezoidal” indentations in the car sides, however they have lower car sides than the PS4000 HT. A key difference in the Eastern car design is the lack of rotary equipment, so the bolsters are symmetrical like typical freight cars. Finally, our PS3526/3600 models include a realistic “tipple load” modeled after typical eastern mine load practices.





In addition for tooling of multiple phases of bodies as part of this system, our new PS3526/3600/4000 coal hopper models feature our new 100-ton Barber S-2 truck, complete with “rotating” roller bearing caps, plus separate brake beam parts.

The Tangent PS3526/3600 and PS4000 system of coal hoppers offer a multitude of detail variations and phases to replicate the many different Pullman-Standard offerings.



Features for these coal hopper replicas include:

• Dimensional accuracy – designed from Pullman-Standard plans and verified with field measurements

• Highly correct “true to life” colors

• “Hyper-Accurate” lettering including exact fonts and lettering placement

• “Near-scale” draft gear box with beautifully-rendered side “key” detail

• Genuine Kadee® scale couplers

• Multiple road numbers for each scheme

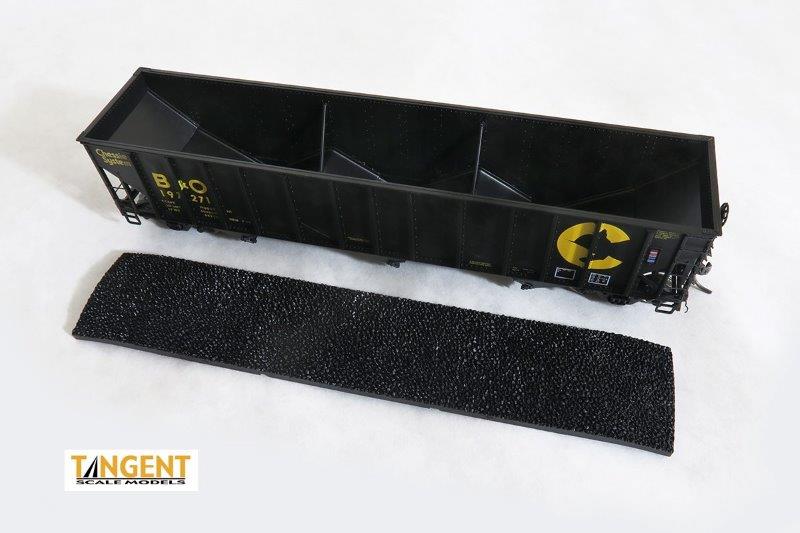

• Two different coal loads (one load is included with each model)

• “See-through” brake platform

• Full “lacy” AB brake detail and train air line

• Rubber air hoses including “wrong side” mounting for rotary ends

• Four dimensionally-correct coal hopper body variations with appropriate side panel arrangements (trapezoidal and flat), as well as offset and non-offset truck center arrangements

• Five different assembly builds within our system, with more planned (Southern, for starters)

• Road-specific details for each scheme, including different brake appliances and 2 different styles of unloading door mechanisms

• Beautiful details – wire grab irons and coupler lift bars – no “molded on” plastic grab irons here!

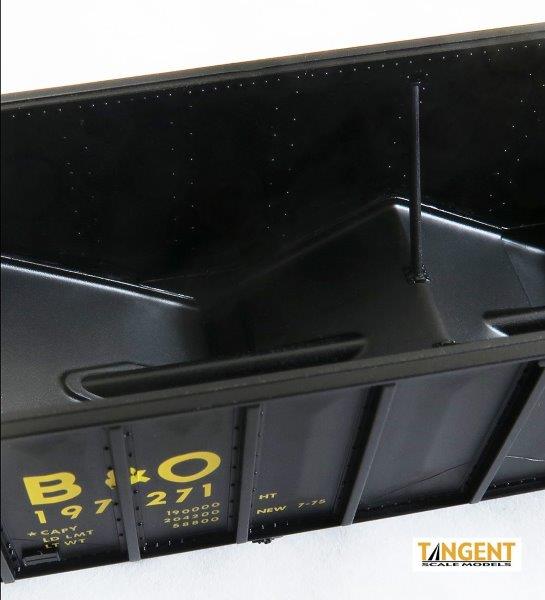

• Accurate interior bracing parts

• All-New precision Tangent Scale Models 100-ton Barber S-2 trucks with roadname-specific rotating bearing caps and separate brake beam part

• CNC-machined 36” wheels

• Replacement 36” semi-scale wheels are available separately from Tangent in either blackened or nickel-silver finish

• Recommended age 14 years and older

• Kadee® “scale-head” couplers

Don’t miss out on the Tangent Scale Models PS3526/3600 and PS4000 system of coal hoppers, one of the most relevant coal hopper models of the 1970s!

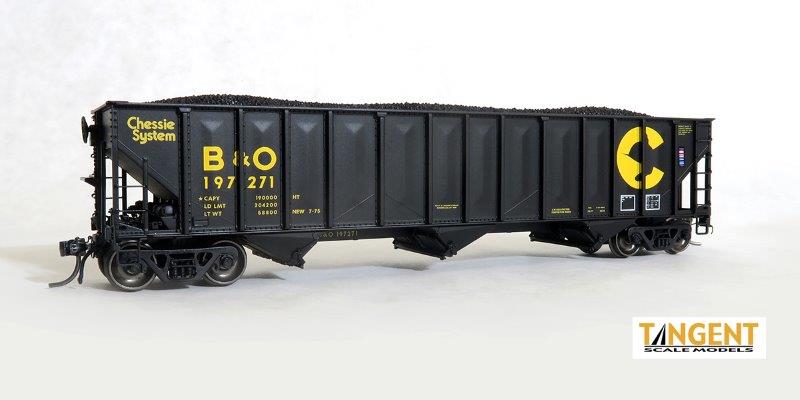

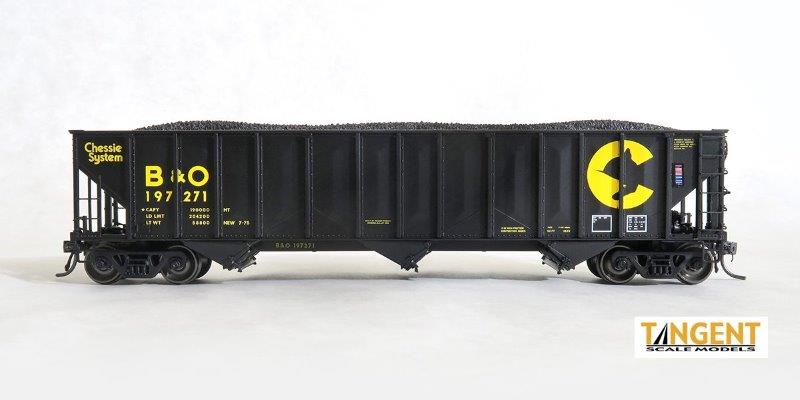

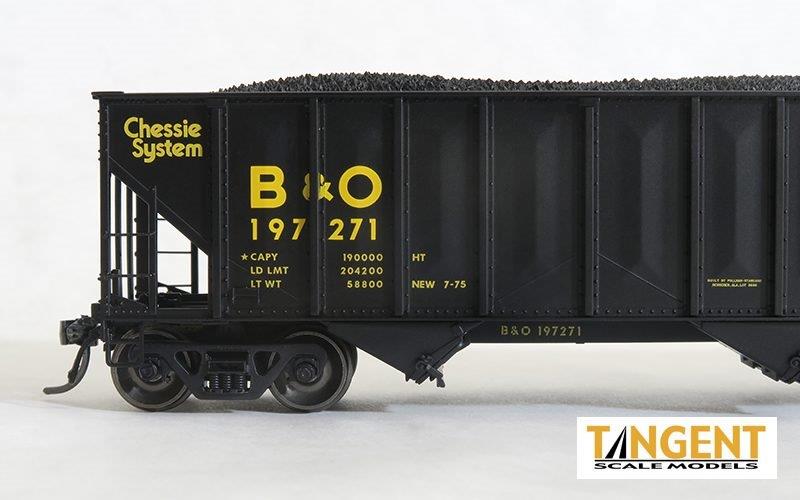

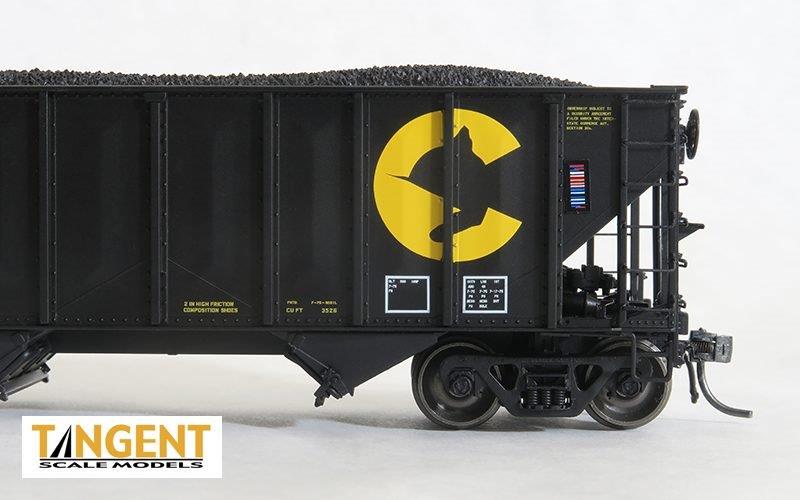

B&O Chessie Black Delivery 1975+ PS3526 represents our “eastern” car release for this production. We thought Chessie/B&O would be a good offering for our first production, because this series of PS3526 coal hoppers was large – totaling 2,500 cars. These cars have black carbodies and include Chessie yellow graphics with the Chessie cat logo and the “Chessie System” stenciling in the upper left side panels. These cars also have “B&O” and road number stenciling applied to the underframe. We offer this scheme in 24 road numbers so you can model a unit train or mix and match your other Chessie hoppers. Also, don’t forget to match our models up with your Tangent Chessie/B&O I-18 class International bay window caboose released earlier this year, and still available!



Product Highlights for the B&O Chessie PS 3526 HT Body:

• Lower “Eastern” carbody design

• Conventional gravity dump design

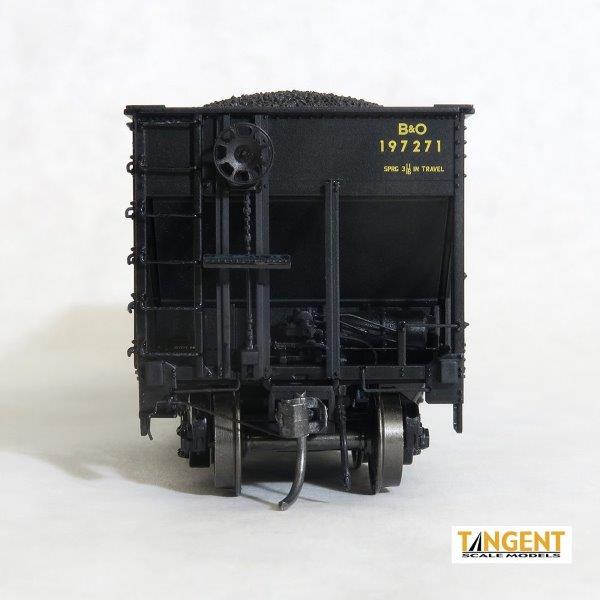

• Flat style end horizontal posts at both ends of car

• More pronounced vertical side panel creases and shape, per B&O prototype as executed by Pullman Standard

• High handbrake details

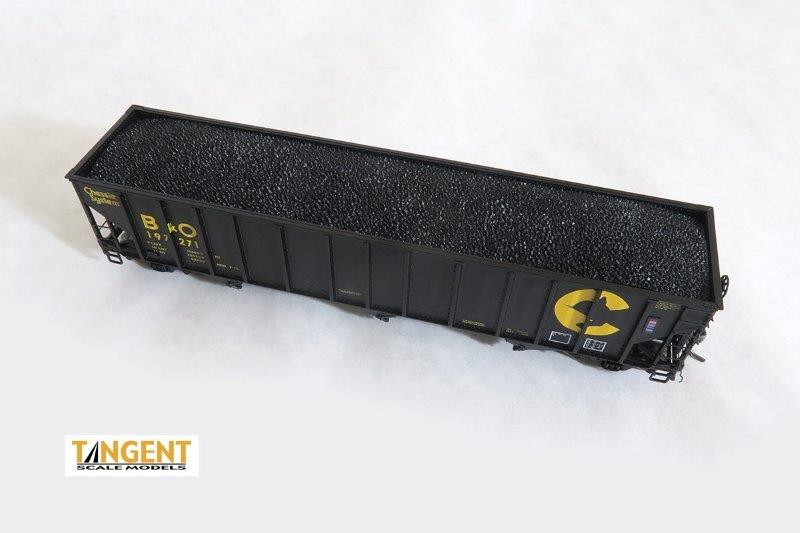

• “Eastern Style” Tipple coal load

• Flexible rubber train line hoses

• Rotating “Brenco-6” Roller Bearing Caps on Tangent’s New 100T Barber S-2 Trucks

• Genuine Kadee® “scale-head” couplers



Order Due Date: November 30, 2020

Anticipated Delivery Date: December 2020
