Tangent Models - HO Scale - General American 1917-Design 8,000 Gallon Insulated Tank Car - National Tank Car Company (NTCX) #2189 - “1922+ Lease” - Silver/Black With Black Lettering (SKU 20009-19124-03)

Available On: January 1, 2021





tang-logo





HO Scale










General American 8,000 Gallon 1917-Design Insulated Radial Course Tank Car



By the end of World War I, U.S. production of oil and oil-related products was sharply increasing thanks to the combination of war-related demands as well as demands from home. In order to move oil and “new” consumer products, tank car producers introduced new car designs. In 1917 General American Tank Car introduced a new general service 8,000 gallon non-insulated tank car (a prototype for which we released a model in November 2016 with a few still in stock), and quickly followed that production with an insulated 8,000 gallon tank car, which utilized a “jacket” that surrounded the tank and dome. Built in East Chicago, IN, these insulated cars were easily identifiable by their circumferential rivets that surrounded the tank body, with notably different heights between the courses, and with their “recessed ends”. These “radial course” tank cars utilized steel bolster plates that rise up vertically to hold the tank in place, complete with a “web” section behind to minimize steel consumption. At a time of fairly monochromatic box cars plying the rails, these insulated tank cars carried consumable products, and they were typically stenciled for lessees advertising consumer products such as gasoline, wine, and corn products.

An example gasoline service insulated tank car was leased by Anchor Petroleum located in Tulsa OKLA and was photographed on the Chicago & Illinois Midland in the state of Illinois post World War II.





An example “pre-depression” and “pre-diesel” car was this NTCX car, which are the reporting marks for National Tank Car Company, who operated a fleet of 8,000 and 10,000 gallon tank cars. Their insulated tank car fleet represented more than 30% of their total tank car fleet. This car is stenciled for the “plain leaser” NTCX scheme from 1922. These NTCX cars were nationwide roamers and were likely used for viscous oil products.





The GATC 1917-design family were the most prolific tank cars built during this period and were found everywhere from 1917 to roughly 1970.

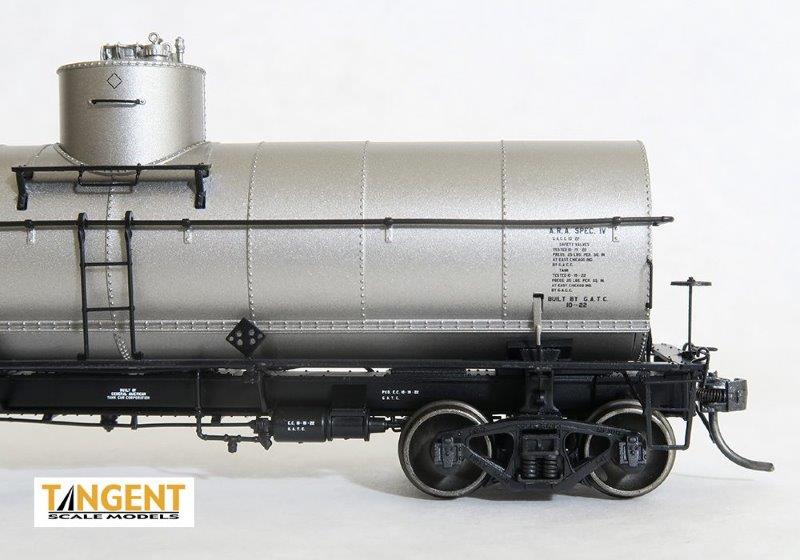

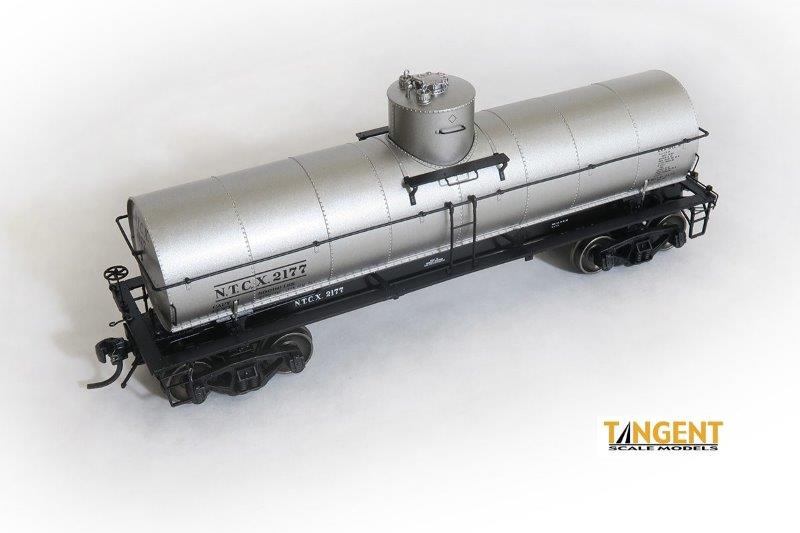

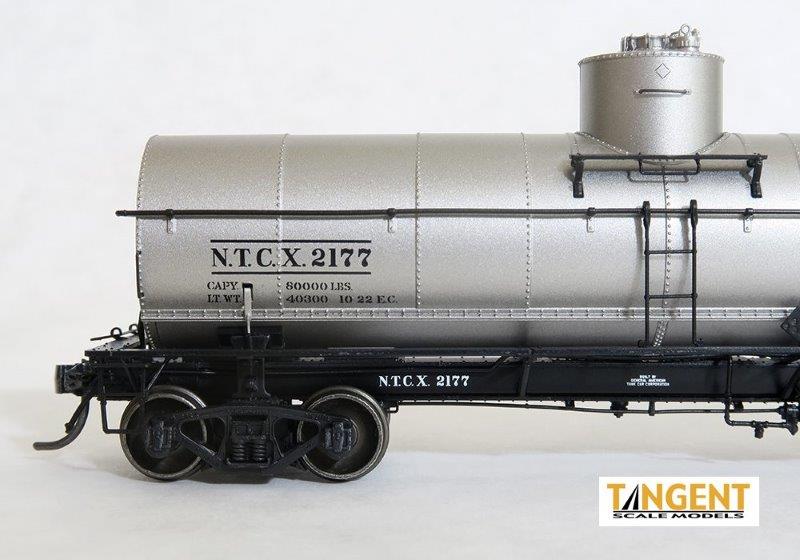

The Tangent Scale Models GATC 1917-Design 8,000 Gallon Insulated Tank Car is a highly-detailed tank car model that includes details accurate for each paint scheme, including KC- or AB-brake variations, with or without Cardwell draft sill springs, and different hand brakes. Other visually-distinctive details for our models include the “see through” bolster section, circumferential rivets, and differing course heights. Our RTR models include correct “true-to-life” colors and “hyper-accurate” lettering including exact fonts and lettering placement. Finally, our scale replicas operate as well as they look, equipped with free-rolling all-metal wheels and Kadee® scale couplers, meaning our models are truly ready to run.



Features for these awesome replicas include:

– Circumferential riveted tank body and riveted underframe (count ‘em, there are many!)

– Radial course tank body – note the “stairstep” appearance!

– All-new underframe for the GATC 1917-design

– “See-through” cast knee above the bolsters

– Accurate dome appliances

– Dimensionally-correct hazardous placards with accurate hole detail

– Separately applied tank handrail

– Separately applied tank strap detail

– KC- or AB- brake variations depending on the prototype car

– Inclusion of Cardwell draft sill springs depending on the prototype car, otherwise “oval” frame openings where the springs were removed

– Different hand brake appliance options depending on the prototype car

– Highly correct “true to life” colors

– “Hyper-Accurate” lettering including exact fonts and lettering placement, including lettering applied to the underframe and air reservoir

– Durable wire grab irons and coupler lift bars

– Separate air hoses

– “Near-scale” draft gear box with side detail

– Kadee® “scale-head” couplers

– CNC-machined 33” wheels in high-quality Tangent Scale Models ASF cast steel truck with spring plank and with separate brake beams

– Replacement semi-scale wheels available separately from Tangent

– Multiple road numbers for each scheme – these cars often traveled in “groups” of more than one

– Recommended age 14 years and older

Don’t miss out on the Tangent Scale Models General American 8,000 gallon 1917-design radial course tank car! Just like its prototype, this car will stand out on any layout situated from 1917 to 1970, and they went everywhere!

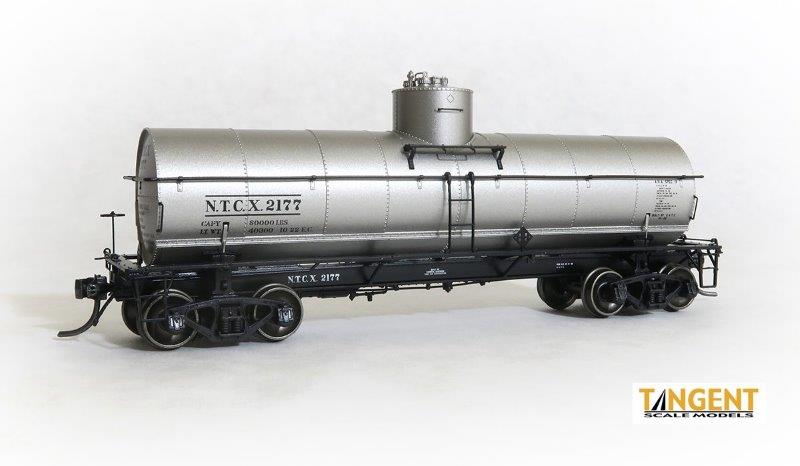

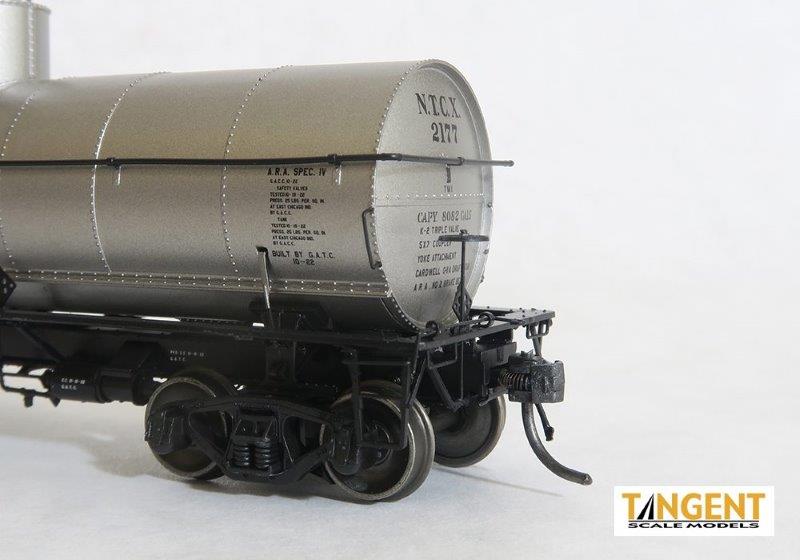

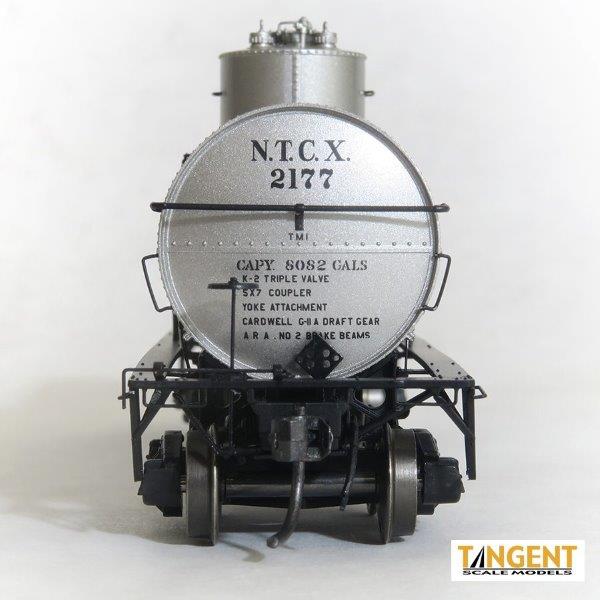

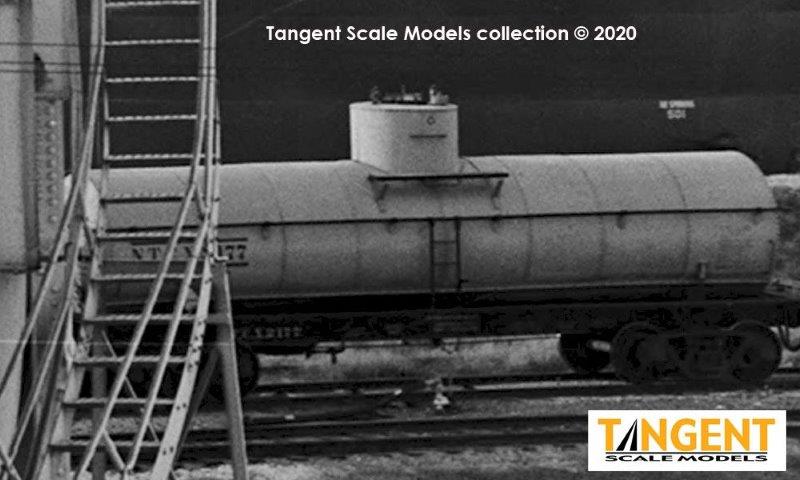

NTCX “1922+ Lease” is our offering for “pre-depression” and “pre-diesel” modelers out there who have been requesting “plain” tank cars! We have listened. NTCX are the reporting marks for National Tank Car Company, who operated a fleet of 8,000 and 10,000 gallon tank cars. Their insulated tank car fleet represented more than 30% of their total tank car fleet, which was large percentage-wise. This model is offered in the “plain leaser” NTCX scheme from 1922 and was stenciled from an actual photo (see our website). These NTCX cars were nationwide roamers and were likely used for viscous oil products. Our National Tank Car Company 1922+ cars come with era-correct K-brakes and are available in three road numbers. Because each real tank car was formed by hand and had individual gallon notations stenciled on each end of the car, all three of our models have the correct gallons stenciled on each end. Yup, we did the research, so you don’t have to!



Order Due Date: December 31, 2020

Anticipated Delivery Date: January 2021



Looking for more Tangent Models HO Scale Tank Cars? Click here!



Looking for more Tangent Models HO Scale Items? Click here!


new gukrefer





















$44.95 US
