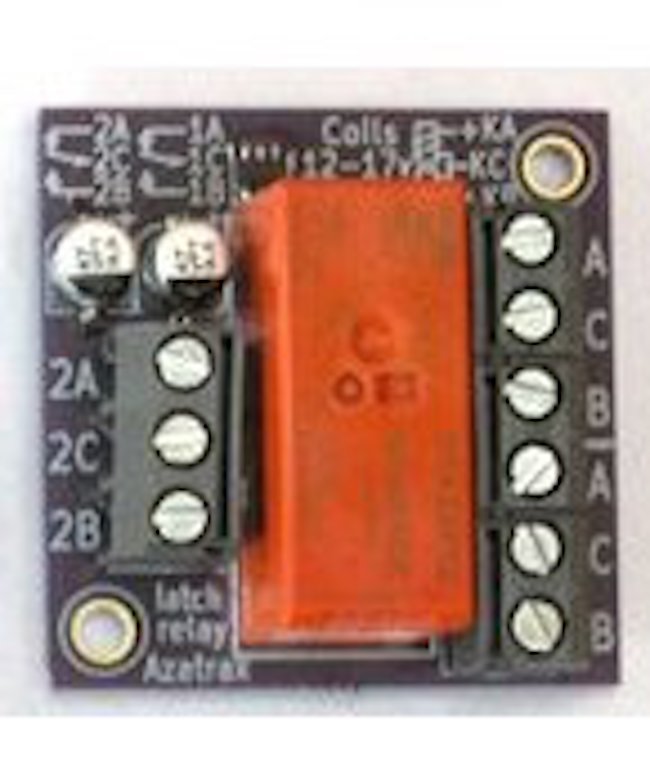

• Latching power relay with DPDT double-pole, double-throw contacts, plus
  • quick-connect or screw terminals
  • flyback voltage protection, and
  • printed circuit board for convenient mounting.
• May be used with model railroad 'snap' switches for position feedback, signal lights or routing frog power.
• Latching feature ensures that this relay will maintain its same position when system power is turned off.

Dual coils, 12v AC or DC operation heavy duty 8 amp contacts latching relay module and schematic download the pdf     • Coils may be actuated by 10 to 15 volts AC or DC. • When actuated with DC voltage, the 'KC' (common) terminal must be connected to the positive (+) side of the power supply. • Coil resistance: 240 ohms each. • Best choice for use with low-side transistor switches, because the flyback voltage of the LARY-AC is clamped at a much lower level than the flyback voltage produced by the LARY-DC relay.

LARY-AC Example circuits 1. Add electrical contacts for signal switching to a twin-coil, 3-wire 'snap' switch machine:
