Building on a rich tradition started in 1946, the Athearn brand is home to the hobby’s best-loved models. Athearn has brought the joy of model railroading to you for 75 years, starting from our classic ‘Blue-Box” kits to our most recent Genesis 2.0 line. With accurate detailing and painting, Athearn is the brand that any hobbyist is proud to own and operate. No matter your era or favorite railroad, Athearn truly is “Trains in Miniature.”



PROTOTYPE SPECIFIC INFORMATION

In 1949, EMD introduced the GP7. The basic design followed most diesel switchers with the addition of a short hood instead of an end-cab. The hoods were also full height to better accommodate the diesel engine and mechanical and electrical components.

In 1954 EMD upgraded the GP7 to become the 1,750 horsepower GP9. Externally, the first GP9s were virtually unchanged from the last GP7s. Later versions would include different louver arrangements and the last ones would come without the frame skirting. The GP9 was available with all of the fuel tank, steam generator, and dynamic brake options as the GP7, including “torpedo tube” air tanks mounted on the roof.

Many railroads chose to rebuild their GP7s and GP9s for continued service. Often times, it was cheaper to do this rather than purchasing brand-new locomotives.



LOCOMOTIVE FEATURES:

• Coupler cut levers

• Drop steps unless noted

• “Nub” style walkway tread

• Lift rings

• Windshield wipers

• Trainline and MU hoses

• MU stands

• Windshield wiper

• Wire grab irons

• Sander lins

• Bell placement & type per prototype

• Detailed fuel tank with fuel fillers, fuel gauges, breather pipes, and retention tanks

• Blomberg-B trucks with appropriate bearing caps

• Speed recorder unless noted

• See-through cab windows and full cab interior

• Fine-scale Celcon handrails for scale appearance

• Etched metal radiator intake grilles and fan grilles

• Air tanks mounted below sill unless noted

• Body-mounted McHenry scale knuckle couplers - Kadee compatible

• DCC-ready features Quick Plug plug-and-play technology with 21-pin NEM connector

• Scaled from prototype resources including drawings, field measurements, photographs, and more

• Accurately painted and printed paint schemes

• Genesis driveline with 5-pole skew wound motor, precision machined flywheels, and multi-link drivetrain

• All-wheel drive with precision gears for smooth & quiet operation

• All-wheel electrical pickup provides reliable current flow

• Wheels with RP25 contours operate on all popular brands of track

• LED Lighting for realistic appearance

• Heavy die-cast frame for greater traction and more pulling power

• Packaging securely holds for the model for safe storage

• Fully-assembled and ready-to-run

• Minimum radius: 18”



SOUND-EQUPPED MODELS ALSO FEATURE

• Onboard DCC decoder with SoundTraxx Tsunami2 sound

• Sound units operate in both DC and DCC

• Engine, horn, and bell sounds work in DC

• All functions NMRA compatible in DCC mode

• Precision slow speed control

• Program a multiple unit (MU) lashup with lead unit only horn, bell, and lights

• Many functions can be altered via Configuration Value (CV) changes

• CV chart included in the box





Frisco

SLSF FEATURES:

• Orange and white scheme - first time in Genesis

• Spark arrestors (consumer-applied) included in box

• Operating Prime Stratolight beacon

(Only flashes in DCC-equipped version.)

• Firecracker antenna

• Modified fuel tank skirts

• “Canvas” sunshades



ROAD NUMBER SPECIFIC FEATURES:

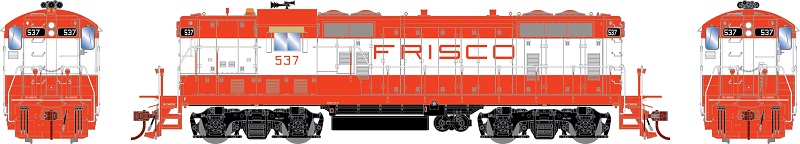

• #537 Freight unit; no stripes

• #544 Freight unit; warning stripes on nose

• #611 Dual-service unit (steam generator and water tanks), warning stripes on nose
