DCS is a system for controlling your entire layout — multiple sound-equipped engines, switches, and accessories — from one or more smart devices with the DCS App installed. DCS is compatible with all Proto-Sound 2.0- or 3.0- equipped locomotives. In O gauge, it is also compatible with locomotives equipped with Lionel TMCC and Legacy, as well as conventional AC and DC-powered locomotives.

The full DCS Digital Command System is an all-encompasing network of components that brings true interactive wireless control to a model railroad. Users utilize their own smart device — iOS or Android — and an intutive app to run multiple tracks, hundreds of trains and control switches and accessories. Bi-directional communication between locomotives and the system’s WTIU WiFi Track Interface Unit makes adding and programming locomotives simple and easy. No more ID numbers to remember and no complex icons to decipher. It’s fast, it’s easy and it’s fun!

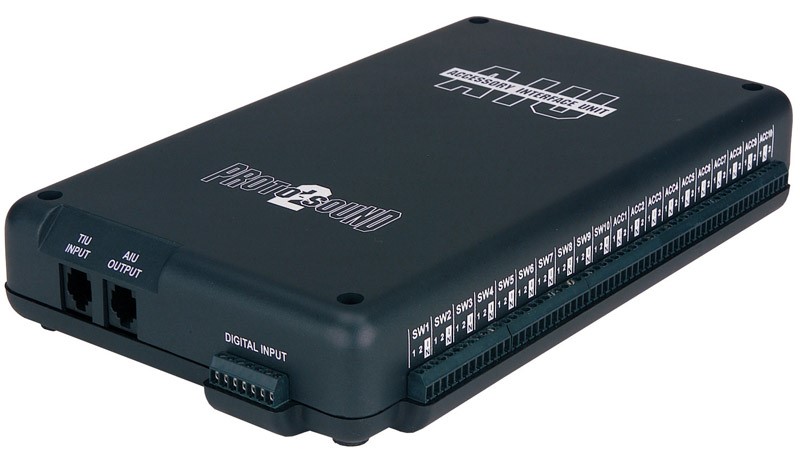

The AIU Accessory Interface Unit is essentially a box containing a bunch of relays that are triggered from either a DCS Remote Handheld Controller or a iOS or Android smart device loaded with the DCS App. The AIU is connected to either the DCS TIU Track Interface Unit or WTIU WiFi Track Interface Unit and is used to operate track switches, lights, accessories and more. Essentially any model railroad component that can be controlled with a physical switch can be controlled with an AIU.

Accessories and switches are wired into the AIU in the same manner that they are connected to a physical switch. The AIU Operator’s Manual details all the common accessory and switch hookup combinations. You’ll have a layout wired in no time.

Each AIU can handle up to 10 switches and 10 accessories. You can even configure the accessory inputs to operate as switch inputs to allow up to 15 switches to be controlled by a single AIU. AIU’s are connected to a TIU or a WTIU by the included special 6 pin harness cable and up to five AIUs can be daisy chained together and plugged into a single TIU or WTIU giving you control of up to 75 switches or 50 accessories for each TIU or WTIU.

FEATURES

• Control up to 10 Switches

• Control up to 10 Accessories

• Easy to Wire

• Operates With AC or DC Powered Switches & Accessories

• Daisy Chain up to Five AIUs per every TIU or WTIU
