PROTOTYPE SPECIFIC INFORMATION

In 1966, EMD updated its locomotive catalog with entirely new models, all powered by the new 645 diesel engine. The SD40 had 3,000 hp from a tur­bocharged V16. 856 examples of this locomotive model were built for Amer­ican railroads, 330 were built for Canadian railroads, and 72 were built for Mexican railroads.

This page is based on the copyrighted Wikipedia article “EMD SD40”; it is used under the Creative Commons Attribution-ShareAlike 3.0 Unported Li­cense (CC-BY-SA). You may redistribute it, verbatim or modified, providing that you comply with the terms of the CC-BY-SA.

SD40 LOCOMOTIVE FEATURES:

• LED lighting

• Photo-etched stainless steel windshield wipers

• Separately applied wire grab irons and air tanks

• Curved radiator fan grab iron

• Coupler cut levers

• Rubber MU hoses

• See through cab windows, dynamic brake and radiator fans

• Fine scale handrails molded in engineering plastic

• Exhaust stack

• Frame mounted bell (unless noted)

• Detailed 4000 gallon fuel tank (unless different capacity is noted)

• Flexicoil-C trucks with high or low brake cylinders (per prototype)

• McHenry scale knuckle couplers - Kadee compatible

• All-wheel drive with precision gears for smooth & quiet operation

• All-wheel electrical pickup provides reliable current flow

• DCC-ready features Quick Plug™ plug-and-play technology with 21-pin NEM connector

• Improved 5-pole skew wound can motor with flywheels and multi-link drivetrain

• Wheels with RP25 contours operate on all popular brands of track

• Highly-detailed, injection molded body

• Interior plastic blister safely holds the model for convenient storage

• Minimum radius: 18” — Recommended radius: 22”

SOUND-EQUIPPED MODELS ALSO FEATURE

• Onboard DCC decoder with SoundTraxx Econami sound

• Single cube speaker for optimal sound quality

• Sound units operate in both DC and DCC

• Engine, horn, and bell sounds work in DC

• Some functions are limited in DC

• All functions NMRA compatible in DCC mode

• Operating lighting functions with F5 and/or F6

• Excellent low-speed operation

• Program a multiple unit (MU) lashup with lead unit only horn, bell, and lights

• Many functions can be altered via Configuration Value (CV) changes

• CV chart included in the box

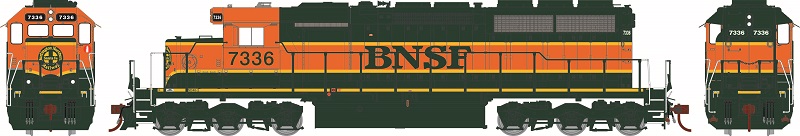

Burlington Northern Santa Fe

BNSF SD40 #7300-#7339 are former Canadian National and Grand Trunk Western locomotives. They were converted to “SD40-2” standards by Alstom at Point St. Charles, PQ. They were on a ten-year lease from Newcourt Capital USA. They were released for service on 9/01/99 through 10/12/99.

BNSF FEATURES:

• Ex-CN and GTW units rebuilt in late 1990s and classified as “SD40-2”

• K3L horn on long hood

• 4000 gallon fuel tank

• Operating front ditch lights

• Twin air reservoirs

• Sinclair antenna

• Snow shields

• Canadian style vertical rear headlight

• Snowplow
