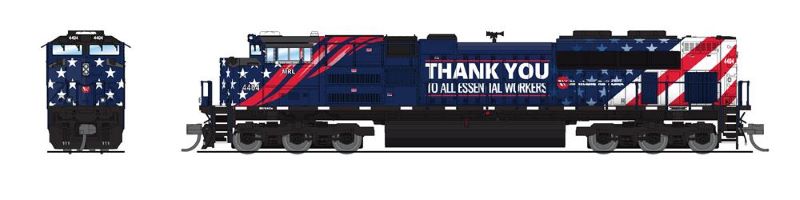

The SD70ACe is the successor to the older SD70MAC. Built from 2004 to 2014 in the United States, the SD70ACe was originally designed to comply with EPA Tier 2 locomotive emissions regulations. Beginning in 2012, newly built SD70ACes were EPA Tier 3 compliant. SD70ACes are equipped with EMD's 16-710-G3C-T2 prime mover, rated at 4,300 horsepower (3,200 kW). Later Tier 3 models are rated at 4,500 horsepower (3,400 kW). They are rated at 157,000 lbf (700 kN) continuous tractive effort (191,000 lbf (850 kN) starting). Braking effort is rated at 106,000 lbf (470 kN).  Although mechanically similar to earlier SD70 units, the SD70ACe rides on a new underframe and uses mostly new sheet metal above the frame. Electrical cables and air lines have been routed beneath the walkways on opposite sides, allowing easier access for maintenance. Continuing the designs of the SD80 and SD90 series, the radiator on the locomotive is nearly as wide as the cab, the center hood section is a step down below the roofline, and the dynamic brakes have been moved to the rear of the hood. The SD70ACe uses the cab design of late-model SD90MAC-H units, which uses rectangular window glass and is externally different from the two cab variations used on earlier SD70M and SD70MAC units. In 2008, EMD standardized the isolated cab on subsequent SD70ACes after non-isolated cab units were restricted from leading on BNSF Railway due to excessive cab vibration.

Industry-leading Model Features:

• Stealth Series - Model is DCC-Ready out of the box.  No sound.

• Out of the box, front and rear lights are directional.  Other lights are ON with track power.

• Model comes with 8 ohm speaker installed for easy installation of DCC/Sound decoder.

• Precision Drive Mechanism Engineered for Heavy Towing and Smooth Slow Speed Operation

• All Wheel Electrical Pick-up

• ABS Body with Die Cast Chassis for Maximum Tractive Effort

• Premium Caliber Painting

• Prototypically Accurate Paint Schemes and Road Numbers

• Many Separately Applied Details such as Grab Irons, Horns, and Bell

• MicroTrains-compatible Couplers (2)

• Will Operate on Code 55, Code 70 and Code 80 Rail

• Minimum Operating Radius:  9 inches
