In 1968, Southern Illinois and Kentucky Bituminous coal was on the rise. In response to increased carloadings and unit train opportunities, the Illinois Central Railroad (“IC”) tasked its own Centralia, Illinois, Car Shops to modernize the IC coal hopper fleet. Their answer was an all-new 100-ton 3834 cubic foot Quad Coal Hopper. These modern coal hoppers utilized exterior-post construction and quad unloading chutes. Centralia Shops built multiple orders of the cars on an assembly line between 1968 and 1977. 3,420 “Centralia Quads” became the backbone of the IC(G)’s modern coal hauling capacity. IC/ICG Centralia also built an additional 330 cars for Inland Steel and 50 cars for Indianapolis Power & Light. While over half of the ICG fleet was rebuilt into visually different 3614cf cars between 1980-1982, more than 700 cars survived in their original build configuration. Some original Centralia Quads would see extended lives on ICG spin-offs like the Chicago Central and Paducah & Louisville. The original fleet of Centralia Quads dwindled quickly through the early 1990s.

Interestingly, in 1973, the ICG experienced record levels of grain shipments while at the same time the ICG’s grain hopper fleet was fully utilized, so Centralia Quad “coal” hoppers were quicky pressed into service. Proform Incorporated developed a fiberglass “Hopper Topper” that provided ICG an easy path to convert some of the Centralia Quad coal hopper fleet to grain service as needed. The “Hopper Topper” included trough hatches on the roof and kept the food grade lading dry like a traditional covered hopper!

It is important to note: These 3834 cubic foot IC Centralia quad coal hoppers are quite different from “Western Design” 3600 cubic foot and Bethlehem Steel Corporation “Eastern Design” 3350 cubic foot hoppers, both offered by Tangent. That’s right, Tangent Scale Models have now tooled their 3rd different quad coal hopper system: the correct IC Centralia Quad Hopper!

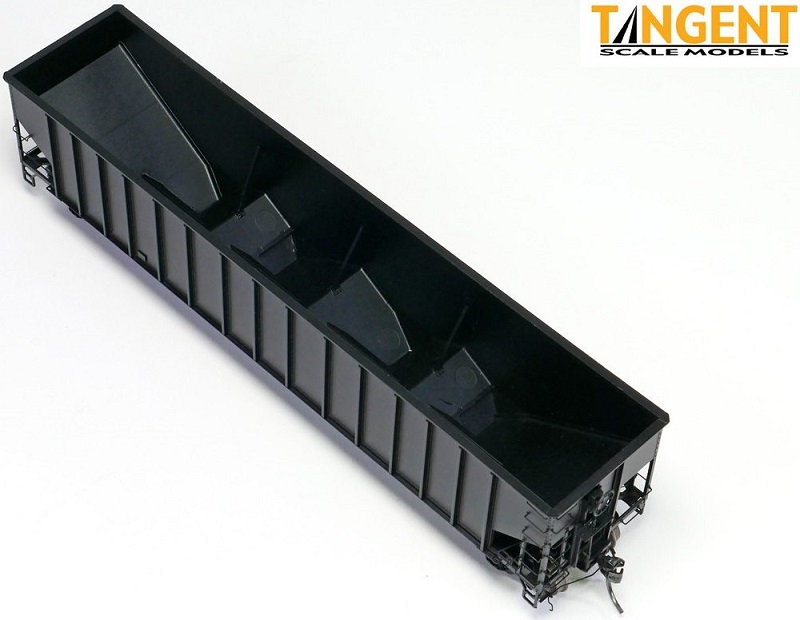

The Tangent Scale Models IC Centralia Shops 3834cf Quad Coal Hopper system features multiple era-specific bodies covering the original 1968-1977 built variants. Tangent Scale Models model is a dimensionally-accurate replica of the real car, and includes other key build variations such as bay door locking mechanisms, brake housings, brake equipment and end frames. This replica includes Tangent Scale Models “near-scale” draft gear box including side “key” detail as well as full body interior rivet detail. Tangent Scale Models ready-to-operate replica is finished with separate, real wire grab irons, coupler lift bars, rubber air hoses, genuine Kadee® scale couplers, accurate CNC-machined wheels, 100-ton Barber S-2 trucks with prototype-specific rotating bearing caps and sufficient hidden weights to ensure the model operates as good as it looks. Finally, Tangent Scale Models model includes a realistic, removable coal load of either the “flood” or “tipple” style.

The Tangent Scale Models IC/ICG Centralia 3834cf Quad Coal Hopper is a state of the art, dimensionally-accurate scale replica with highly accurate “true-to-life” colors and precise letter stencils. Tangent Scale Models IC Centralia 3834cf Quad Coal Hopper system of models offers a multitude of detail variations and phases to replicate the many different Centralia offerings. Example variations include: 1968, 1969, 1972 and 1977 body assembly builds. This replica includes Tangent Scale Models fine “near-scale” draft gear box with beautifully-rendered side “key” detail. Tangent Scale Models ready-to-operate replica is finished scale metal grab irons, coupler lift bars, accompanying Kadee scale couplers and NMRA-compliant yet hidden weights to ensure the model operates as good as it looks. At more than 120 parts per car, not to mention phase accurate details, genuine Kadee couplers, and all-metal wheels, Tangent Scale Models provide you with a high-value model that will provide you with years of enjoyment and curb-appeal.

These products are shipping today! A quick synopsis of Tangent Scale Models IC Centralia Quad 3834cf Quad Coal Hopper era and railroad-specific details and variations include:

• Dimensional accuracy – designed from IC Centralia Shops Quad 3834cf Quad Coal Hopper plans and verified with field measurements
• Highly correct “true to life” colors
• Industry-leading “Hyper-Accurate” lettering including exact fonts and lettering placement
• Genuine Kadee scale couplers
• “Near-scale” draft gear box with beautifully-rendered side “key” detail
• Multiple road numbers for each scheme
• Multiple IC/ICG Centralia 1968, 1969, 1972, 1977 bodies and assembly builds, with end frame, ladder assemblies and brake gear details

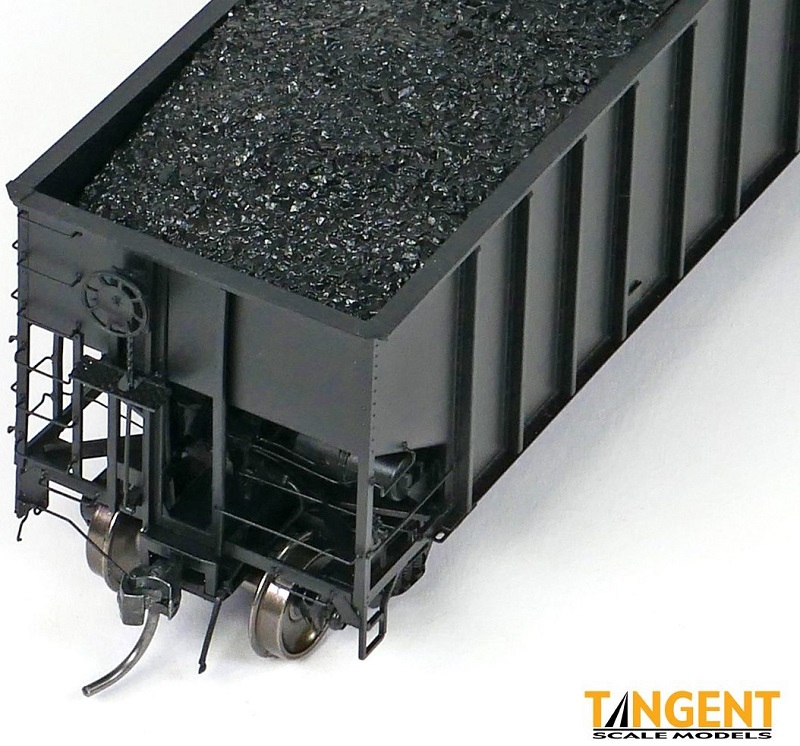

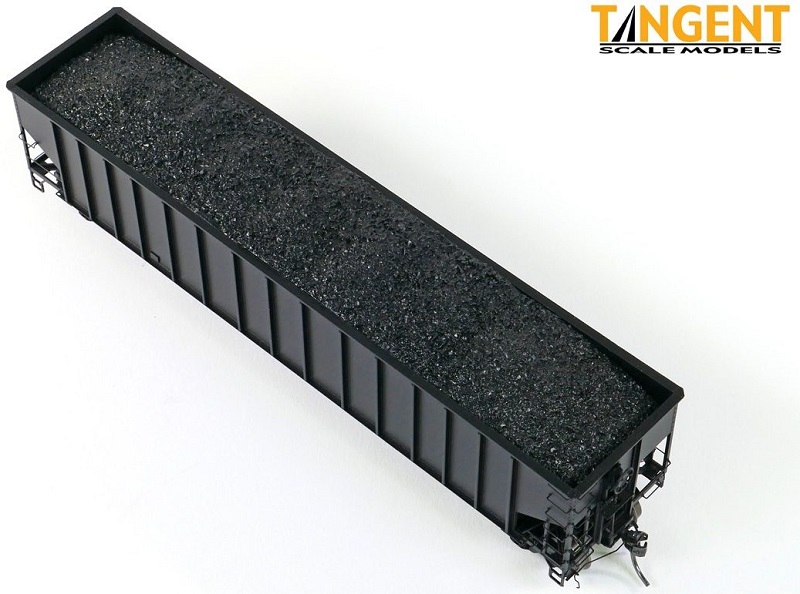

• Two coal load options: Flood vs. Tipple Style

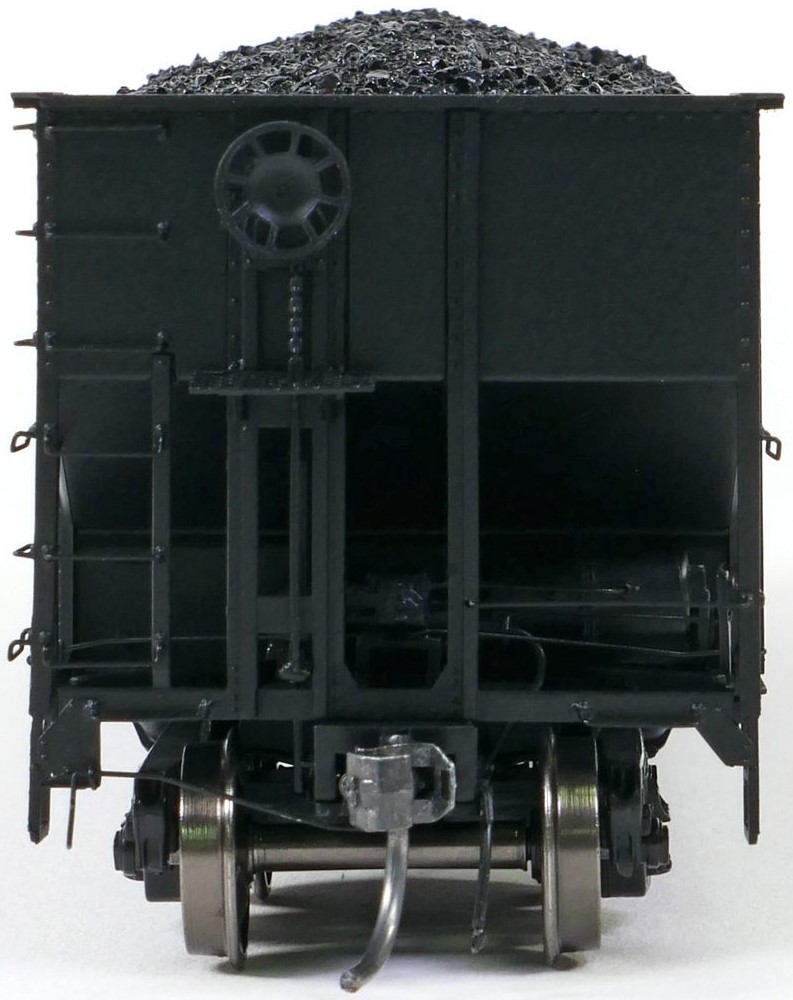

• “See through” brake step platform
• Proform Incorporated “Hopper Topper” roof covers with etched metal running boards available separately
• Road-specific details for each scheme, including 6 brake wheel housing options and 2 different routing board options.
• Beautiful details including separately-applied scale wire grab irons and coupler lift bars – no “molded on” plastic grab irons or “thick” plastic grab iron parts anywhere on this replica!
• Separate flexible rubber air hoses
• CNC-machined 36” wheels with accurate front and back detail

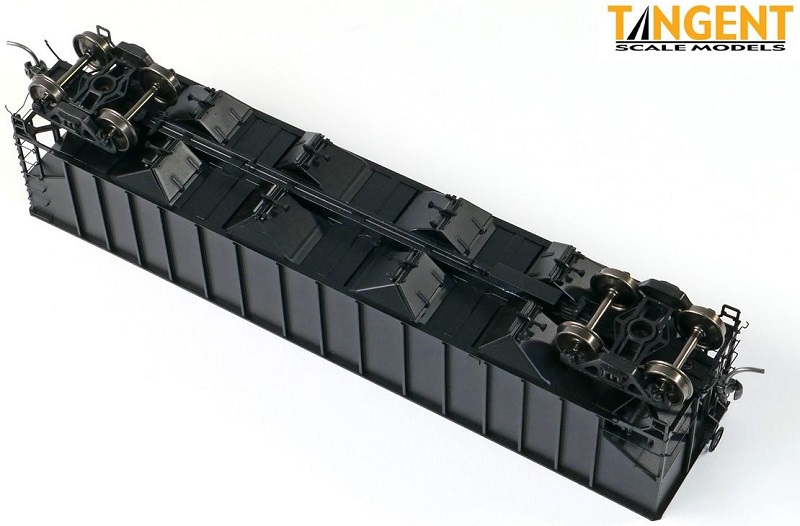

• Tangent Scale Models precision 100-ton Barber S-2 trucks with prototype-specific rotating bearing caps (four possible options!) and separate brake beam part (2 possible options!)
• Weighted to NMRA specifications – yes, even with the coal load removed
• Recommended age 14 years and older

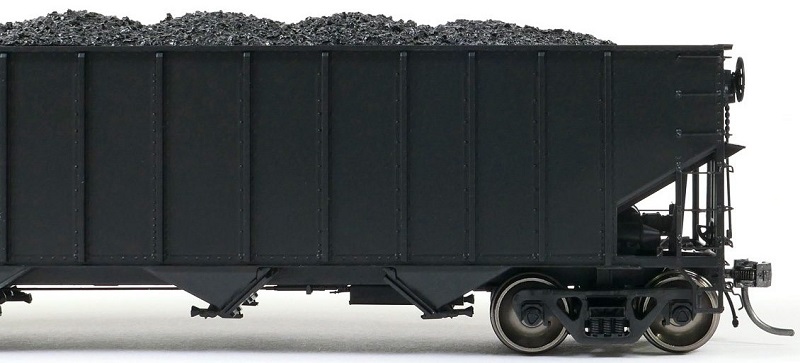

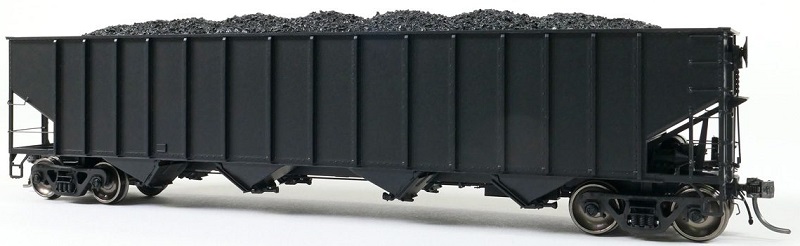

Undecorated RTR Black IC Centralia Shops 3834CuFt Quad Coal Hopper

• Product: Centralia 3834 cuft Quad Hopper
• Scale: HO Scale 1:87.1
• Truck: Tangent 100-ton Barber S-2 trucks with rotating bearing caps and separate brake beam part
• Wheels: CNC-Machined 36″ Wheels

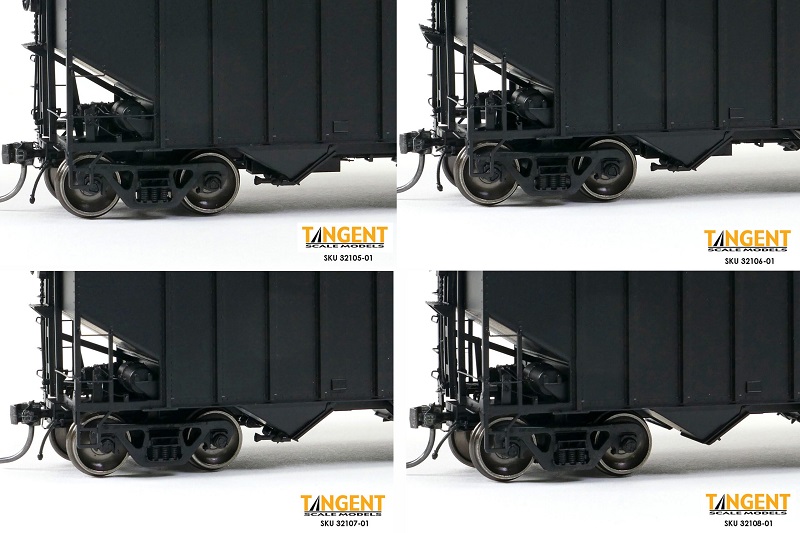

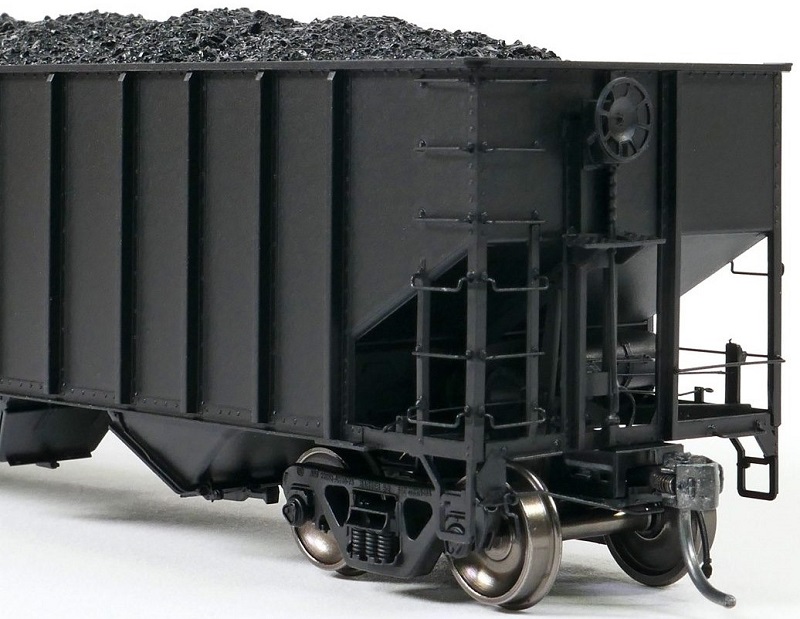

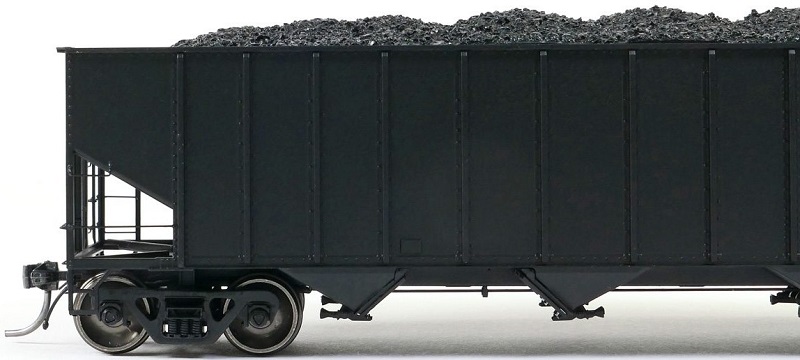

– Unlettered RTR Black IC 1968 Body is a completely assembled RTR model, painted black and unlettered. It features the 1968 body with two stand-off grab irons on the left side of the body, Underframe brake linkage, Monoloc door locks, Tipple-Style coal load, Ajax high handbrake and Morton-style brake step. This model includes Tangent 100-ton Barber S-2 trucks with rotating Timken caps and CNC-machined 36” wheels along with Genuine Kadee scale couplers. Use this car for the following prototype series or your own road:

IC 78000-78999 1968 (ICG 360000-360999)
IC 89280-89699 1968 (ICG 362280-362699)
Also closest to INLX 10000-10270 1968

SKU 32105-01

– Unlettered RTR Black IC 1969 Body is a completely assembled RTR model, painted black and unlettered. It features the 1969 body with a two-rung ladder on the left side of the body, Underframe brake linkage, Monoloc door locks, Tipple-Style coal load, Ajax high handbrake and Morton-style brake step. This model includes Tangent 100-ton Barber S-2 trucks with rotating Timken caps and CNC-machined 36” wheels along with Genuine Kadee scale couplers. Use this car for the following prototype series or your own road:

IC 85000-86199 1969 (ICG 361000-362199)
IC 89700-89999 1969 (ICG 362700-362999)

SKU 32106-01

– Unlettered RTR Black ICG 1972 Body is a completely assembled RTR model, painted black and unlettered. It features the 1972 body assembly, with a two-rung ladder on the left side of the body, hidden center-tube brake linkage, Monoloc door locks, Tipple-Style coal load, Ajax high handbrake and Morton-style brake step. This model includes Tangent 100-ton Barber S-2 trucks with rotating Timken caps and CNC-machined 36” wheels along with Genuine Kadee scale couplers. Use this car for the following prototype series or your own road:

ICG 363000-363099 1972
INLX 10271-10330 1972
EWSX 10001-10050 1972

SKU 32107-01

– Unlettered RTR Black ICG 1977 Body is a completely assembled RTR model, painted black and unlettered. It features the 1977 body assembly, with a two-rung ladder on the left side of the body, hidden center-tube brake linkage, Unit Latch door locks, Tipple-Style coal load, Ajax high handbrake and Morton-style brake step. This model includes Tangent 100-ton Barber S-2 trucks with rotating Timken caps and CNC-machined 36” wheels along with Genuine Kadee scale couplers. Use this car for the following prototype series or your own road:

ICG 363100-363499 1977

SKU 32108-01
