During the 1960s, railcar builders experimented with covered hopper designs to satisfy the evolving needs of shippers as they moved away from forty-foot box cars to bulk transport railcars. Pullman’s PS-2 design evolution continued in 1966 when the “Low Side” 4427 was replaced with the “High Side” version. The 4427 “High Side” was visually distinctive with its high slope bays and center of gravity, which sped the unloading process of bulk commodities. The “High Side” 4427 included 13 exterior side posts, similar to its sister car design, the PS-2 4740, which had 16 side posts. Both designs were introduced in 1966, and 4427 “High Side” production ended in 1971 after delivery of approximately 12,000 cars.

The Tangent Scale Models PS4427 “High Side” is a dimensionally-accurate replica of the real car and provides continuity with their other Pullman-Standard covered hoppers, including model design, scheme colors, and stenciling. Tangent Scale Models model includes key build variations: stirrup steps, roof hatches, jacking pads, tow loops, discharge gates, and side air lines. This replica includes Tangent Scale Models “near-scale” draft gear box including side “key” detail. Tangent Scale Models ready-to-operate replica is finished with coupler lift bars accompanying Kadee scale couplers, sufficient hidden weights, and CNC-machined wheels to ensure the model operates as good as it looks.

Features for Tangent Scale Models PS PS-2CD 4427 High Side Covered Hopper replicas include:

• Dimensional accuracy – designed from Pullman-Standard plans and verified with field measurements

• Highly correct “true to life” colors

• “Hyper-Accurate” lettering including exact fonts and lettering placement

• “Near-scale” draft gear box with beautifully-rendered side “key” detail

• Multiple road numbers for each scheme where appropriate

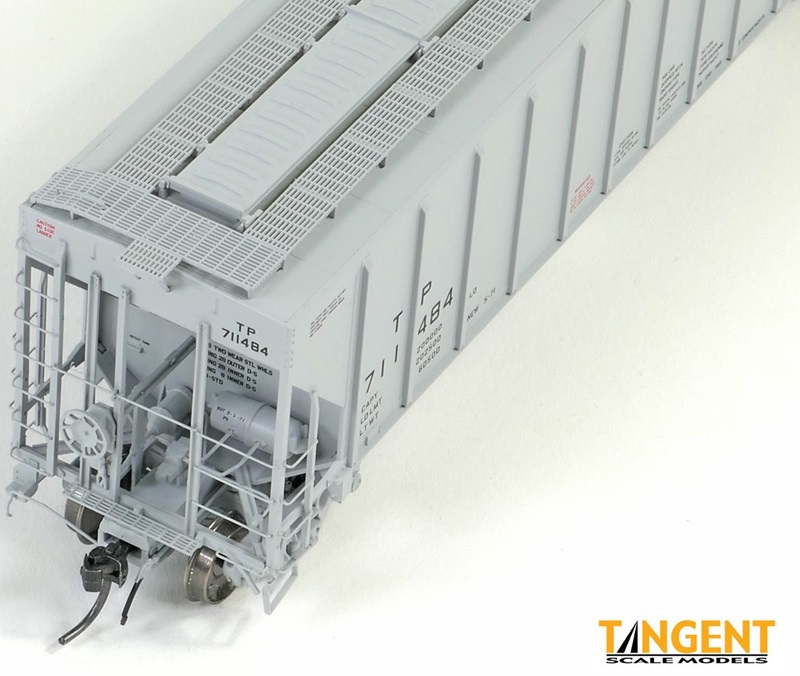

• “See through” running boards

• Etched metal crossover platforms

• Road-specific details for each scheme: 6 different outlet gates (that’s right!), 2 different sets of roof hatches, 2 different running board end supports, jacking pad/tow loop options, 2 different crossover platform options, 2 different end ladder options, 2 different brake wheels, 2 different side air line options and 2 different center sill options. (Whew!)

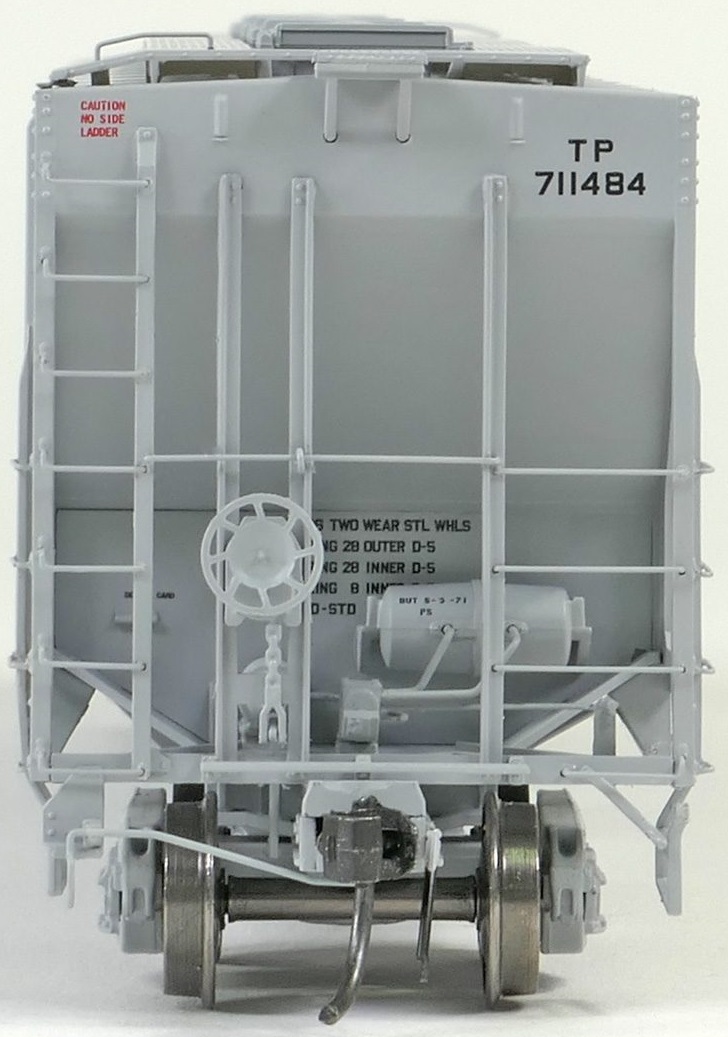

• Beautiful details – wire ladder rungs, wire grab irons, and wire coupler lift bars – no “molded in” plastic grab irons anywhere!

• Separate air hoses

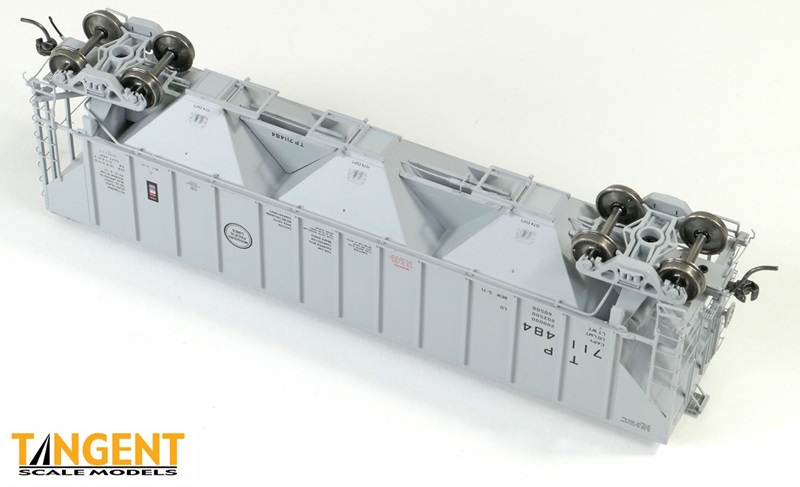

• Precision Tangent Scale Models 100-ton Barber S-2 trucks with roadname-specific rotating bearing caps and separate brake beam part

• CNC-machined 36” wheels with accurate front and back profile detail

• Replacement 36” semi-scale wheels for Tangent Scale Models “rotating bearing cap” trucks are available separately from Tangent in either blackened or nickel-silver finish

• Genuine Kadee scale “scale-head” couplers

• Recommended age 14 years and older

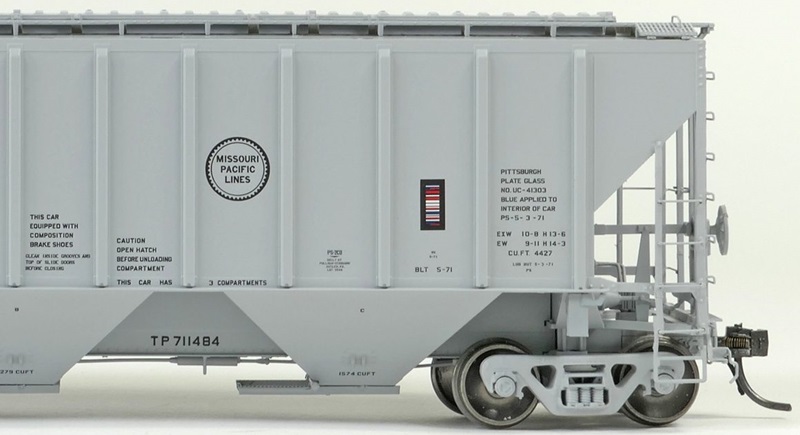

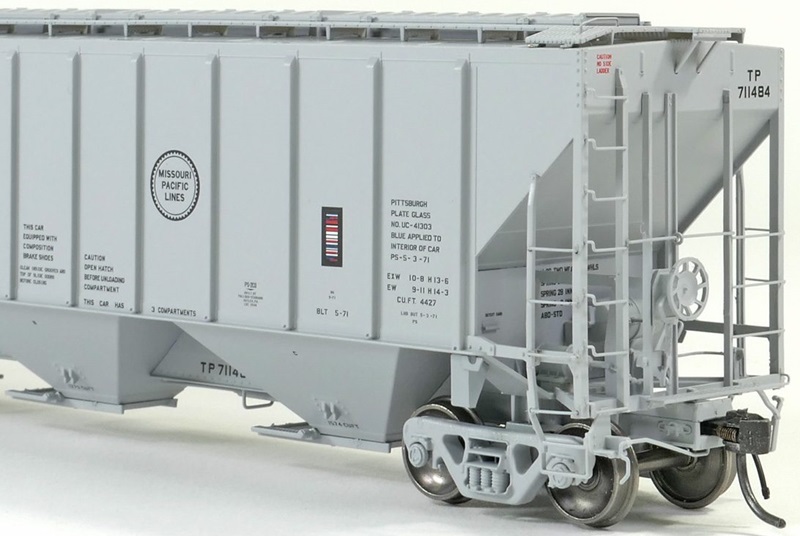

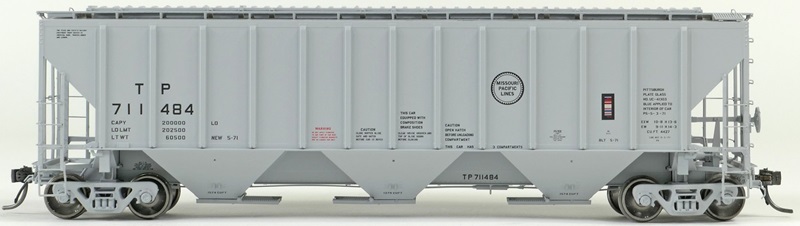

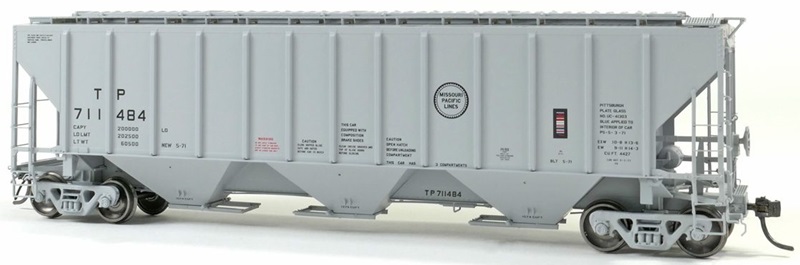

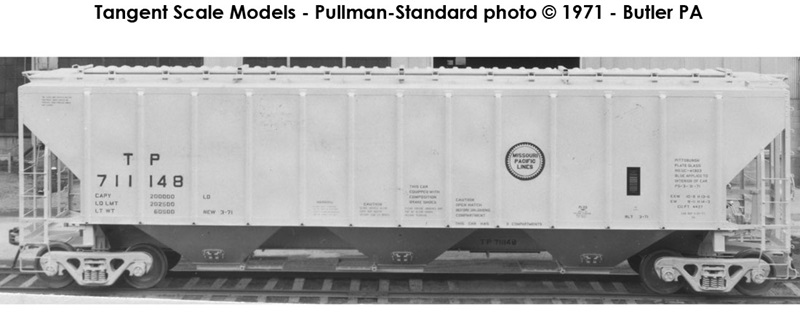

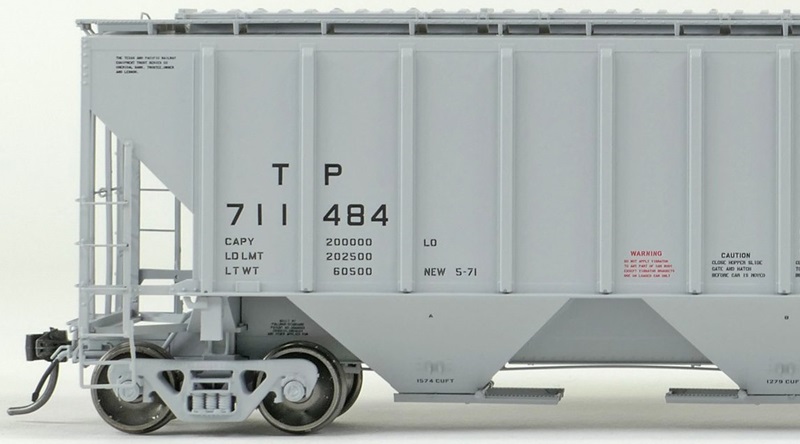

– Texas & Pacific TP “Delivery Gray 5-1971” replicates the as-delivered gray of a huge TP order for 500 cars. The prototype cars are late Pullman-Standard 4427 production, so that means they have the 2-step corner stirrups, jacking pads above the trucks and no center sill supports between the bays. These features have been carefully executed on the model. The models are equipped with accurate Keystone Portloc gravity outlet gates along with an Apex running board and end crossover platforms. The TP lettering follows the MP graphics style of the era. TP/MP lettering is distinctive in its “look” and deserves this careful attention in HO. Equipped with gray 100-ton Barber S-2 trucks with body-mounted brake beams and rotating Hyatt caps, these TP covered hoppers are sharp.
