PROTOTYPE SPECIFIC INFORMATION

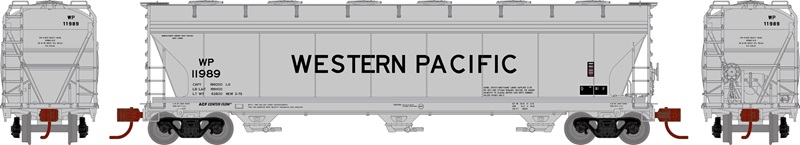

The 3-bay Center Flow covered hopper first entered service in the mid-1960s, built by American Car and Foundry. The cars handle loads such as grain, corn and similar bulk commodities. The Center Flow design relies on the car’s rounded body to provide structural strength - eliminating the traditional center sill, and making gravity unloading easier.

Our 3-bay car represents the common 4600 cu.ft. capacity version. The railroads looking to replace their aging 40’ box cars in grain service needed a modern hopper design - one that could operate within the tighter Plate B clearances for light branchline and industrial service. ACF’s design won them many contracts from a plethora of railroads. One can find these cars still in revenue service today in grain trains and other similar service.

ACF 4600 HOPPER FEATURES:

• Three body styles:

Early - High side ladder & brake wheel, single side stiffener

Mid - Low brake wheel, short side ladders both ends, single side stiffener

Late - As above but with double side stiffeners (post 1971)

• Round or trough hatches

• Photo-etched metal roofwalk

• Detailed outlets

• Separately applied brake wheel

• Screw-mounted trucks

• 100-ton trucks with 36” machined metal wheels

• Body-mounted McHenry operating scale knuckle couplers

• Weighted for optimum performance

• Accurately painted and printed

• Highly-detailed, injection molded body

• Minimum radius: 9¾”

PRIMED FOR GRIME MODELS FEATURE

• Duplicated look and feel of “In Service” equipment

• Faded & dull-coated base colors matched to prototype

• Perfect starting point for adding grime and rust
