PROTOTYPE SPECIFIC INFORMATION

By the early 1970s, many first generation diesels were reaching the end of their service lives. The most common replacement locomotive became the GP38-2. EMD began production of the 16-cylinder, non-turbocharged, 2000 horsepower engine in 1972. Unlike the GP38’s engine, which drove a generator to supply power to the traction motors, the GP38-2s prime mover drove an alternator which produced AC electrical current that was rectified to DC to power the four traction motors. Another major change for the GP38-2 was the introduction of the “dash 2” modular electrical cabinet. For more than 40 years, the GP38-2 has worked main line freights, locals, switching jobs, yard service, helpers, snow fighting trains, and hump power. Many remain in service today.

GP38-2 SERIES LOCOMOTIVE NEW FEATURES:

• Operating Class Lights (Where equipped based on prototype)

• Operating Number boards

GENESIS DIESEL LOCOMOTIVE FEATURES:

• Coupler cut levers

• Trainline hose

• Full cab interior

• Windshield wipers

• Wire grab irons

• MU hoses

• See-through cab windows

• Walkway tread

• Lift rings

• Sander lines

• DCC-ready features Quick Plug plug-and-play technology with 21-pin NEM connector

• Fine-scale Celcon handrails for scale appearance

• Detailed fuel tank with fuel fillers, fuel gauges, & breather pipes

• Body-mounted McHenry operating scale knuckle couplers

• Genesis driveline with 5-pole skew wound motor, precision machined flywheels, and multi-link drivetrain for trouble free operation

• All-wheel drive with precision gears for smooth and quiet operation

• All-wheel electrical pickup provides reliable current flow

• Wheels with RP25 contours operate on all popular brands of track

• LED Lighting for trouble free operation

• Heavy die-cast frame for greater traction and more pulling power

• Scaled from prototype resources including drawings, field measurements, photographs, and more

• Accurately-painted and –printed paint schemes

• Packaging securely holds the model for safe storage

• Minimum radius: 18”

SOUND-EQUIPPED MODELS ALSO FEATURE

• Onboard DCC decoder with SoundTraxx Tsunami2 sound

• Dual cube speakers for optimal sound quality

• Sound units operate in both DC and DCC

• Full DCC functions available when operated in DCC mode

• All functions NMRA compatible in DCC mode

• Precision slow speed control

• Program a multiple unit (MU) lashup with lead unit only horn, bell, and lights

• Many functions can be altered via Configuration Value (CV) changes

• CV chart included in the box

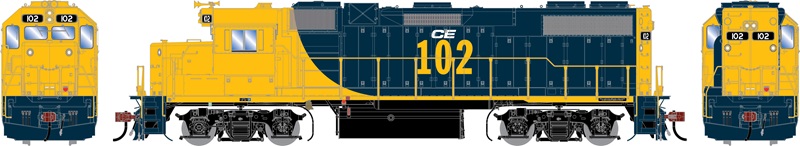

Cleveland Electric

The Cleveland Electric Illuminating Company purchased 9 GP38-2’s from EMD in 1975. These units were built to Conrail specs and featured a cab signal box, small “weed cutter” plows, Leslie 3-chime horns, and small 2600gal fuel tanks. They operated out of Ohio hauling coal trains from their power plants in Ashtabula and Eastlake, OH. Usually running in sets of 4 (using one as a spare), they were used until their lease expired in 1997 and returned to their lessor. They would eventually be picked up by UP and then retired by 2008. Last reports show that they are in the GATX lease pool and could be seen operating wherever they are needed.

CEIX FEATURES:

• As-delivered appearance

• Lit class lights and number boards

• Front and rear “weed cutter” plows

• Early/mid-body with chickenwire grilles and standard fans

• Leslie 3-chime horn

• Dynamic Brakes
