Digitrax - N Scale - Mobile Decoder - fits many DCC ready N and HO scale locomotives (replaces 245-DN143IP) (SKU 245-DN146IP)

 digitrax

   All Digitrax decoders are rated for at least 1 amp for robust operation and long-term reliability. Available in a variety of shapes and sizes to fit in almost any locomotive, Digitrax offers both traditional wired decoders as well as plug n play decoders that make installation a snap.

    Digitrax decoders feature variable frequency Supersonic(TM) motor drive for quiet motor operation. They support all DCC standard programming methods. One-step decoder factory reset makes it easy to troubleshoot decoders. Motor isolation protection protects your investment in locos and decoders. Digitrax decoders support both two and four digit addressing and basic, advanced and universal consisting. They also have operations mode read-back capability so you can read back programming information while the decoder is on the main line.
Digitrax decoders are DCC compatible and can be used with any DCC compatible system.



Click here for product manual

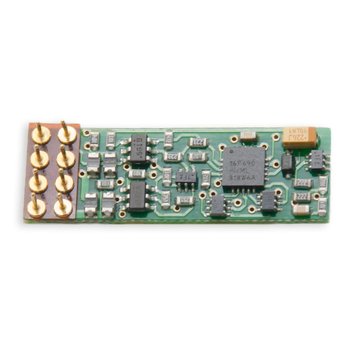

DN146IP N Scale Mobile Decoder

Features:



  • FX3 Function outputs for prototypical lighting effects and on/off control:
    Constant Brightness Lighting with directional or independent control.
    Optimized selectable LED or incandescent lamp operation
    Realistic Effects like Ditch lights, Mars lights, strobes, and many more
    Configurable Pulse Function available on all function outputs.
    FX3 & Standard Function Qualifiers operate functions based on direction,
    F0 on or off, direction and F0, and whether loco is moving.
    Function Mapping for custom function setup.
    Master Light Switch turns off all lights & functions with one keystroke.
    Advanced Consist Function Controls.
  • Digitrax LocoMotion® System-Your locomotives look like the real thing.
    The Digitrax LocoMotion System makes them run like the real thing, too!
    Scaleable Speed Stabilization (Back EMF) with simple setup & 256 level resolution.
    Torque Compensation.
    128 Speed Step operation (14 or 28 steps can also be used).
    Momentum with acceleration and deceleration.
    Normal Direction of Travel is user selectable.
    Switching Speed feature for easier and faster access to yard speeds.
    3 Step Speed Tables set start, mid and max voltage for custom control.
    28 Step Speed Tables with 256 level resolution for precise control.
  • Program CVs using any Digitrax Compatible Control system without havingto buy any extra equipment.
  • Integrated DCC Medium Plug.
  • 2 Digit and 4 Digit Addressing.
  • Basic, Advanced & UniVersal Consisting.
  • SuperSonic motor drive for silent operation.
  • Direct mode programming.
  • Decoder Reset CV with or without speed table reset.
  • Transponder Equipped ready for transponding on your Layout.
  • Motor Isolation Protection helps prevent damage to your decoder.
  • Automatic Analog Mode Conversion when running on DC layout.
  • Decoder Lock for individual programming of multiple decoders in one loco.
  • Digitrax “No Worries” Warranty.

Specifications

Current Rating-Motor
1.0 Amp/1.5 Amps Peak
Size
1.158” x .386” x .115” (29.43mm x 9.81mm x 2.98mm)
Installation
Integrated Plug
Function Outputs
4
Features
Series 6
Current Rating-Functions
0.5 Amps for all functions
Original Release Date
2014-03-14
Warranty
No Worries Warranty

Click Here to View Digitrax Video Tutorials







$35.00 US
Country of Origin: United States
