PROTOTYPE SPECIFIC INFORMATION

An EMD SW1500 is a 4 axle diesel switcher locomotive built by General Motors Electro-Motive Division between 1966 and 1974. It is similar in appearance to the EMD SW1000 model, which has a different engine and has one exhaust stack while the SW1500 has two.

Power was provided by an EMD 645E 12-cylinder engine which generated 1,500 horsepower. This locomotive was built on the same common frame as the EMD SW1000, giving it an overall length of 44 feet 8 inches.

The SW1500 featured a bulkier carbody and was a bit heavier from earlier models although its intended use remained the same, working light branch lines or in industrial settings. Many railroads regularly used SW1500s for road freight service.

SW1500 LOCOMOTIVE FEATURES:

• Lit ground lights
• Drop steps unless noted
• Dual exhaust stacks
• Detailed cab interior
• MU stands
• Printed numberboards
• Fine scale handrails
• Signal hoses as appropriate to the prototype road (MU capability was a railroad specified option for these locos, and some railroads did not order it).
• Operating ground lights
• Newly designed can motor is more powerful and quieter than before
• LED lighting for long life and reliable operation
• Front and rear trainline hoses with silver glad hands
• Separately applied wire grab irons
• See-through radiator intake grille and cab windows
• Low or high-mounted windshield wipers per prototype
• Rectangular or oval builder’s plate where appropriate
• Separately applied air tank
• McHenry scale knuckle couplers – Kadee compatible
• All-wheel drive with precision gears for smooth & quiet operation
• All-wheel electrical pickup provides reliable current flow
• DCC-ready features Quick Plug plug-and-play technology with 21-pin NEM connector
• Improved 5-pole skew wound can motor with flywheels and multi-link drivetrain
• Wheels with RP25 contours operate on all popular brands of track
• Highly-detailed, injection molded body
• Interior plastic blister safely holds the model for convenient storage
• Minimum radius: 18”

SOUND-EQUIPPED MODELS ALSO FEATURE

• Onboard DCC decoder with SoundTraxx Econami sound
• Single cube speaker for optimal sound quality
• Sound units operate in both DC and DCC
• Engine, horn, and bell sounds work in DC
• Some functions are limited in DC
• All functions NMRA compatible in DCC mode
• Operating lighting functions with F5 and/or F6
• Excellent low-speed operation
• Program a multiple unit (MU) lashup with lead unit only horn, bell, and lights
• Many functions can be altered via Configuration Value (CV) changes
• CV chart included in the box

LEGENDARY LIVERIES

What are Legendary Liveries? An Athearn exclusive, they are the ultimate answer to “What if?” Featuring some of the most popular railroad paint schemes of all time, these models are perfect for collecting, protofreelancing, or just plain fun! Whether company proposed paint schemes, canceled locomotive orders, or alternate takes on history, Legendary Liveries are fun and unique additions to any roster. Enjoy these items, and answer the ultimate railroad question of: “What if?”

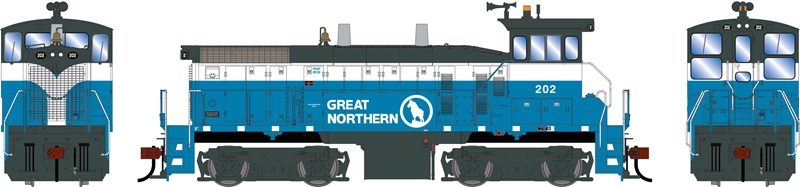

Great Northern

A long-time EMD customer, in 1967 GN purchased 10 EMD SW1500’s to replace 10 of its aging Alco S2 switchers. Planning to use them in yard and transfer service, GN ordered them with Flexicoil trucks. They arrived in GN’s new Big Sky Blue paint scheme, but only a few short years later they would become part of Burlington Northern’s fleet and eventually receive BN’s green and white colors.

GNFEATURES:

• Flexicoil Trucks
• Large fuel tank
• Frame-mounted handrails
• Footboards on both ends
• Firecracker antenna
• MU hoses
• 3-chime horn
• Beacon (Flashes in DCC mode)
