PROTOTYPE AND BACKGROUND INFO:

In 1966, EMD updated its locomotive catalog with entirely new models, all powered by the new 645 diesel engine. The SD40 had 3,000 hp from a turbocharged V16. 856 examples of this locomotive model were built for American railroads, 330 were built for Canadian railroads, and 72 were built for Mexican railroads.

This page is based on the copyrighted Wikipedia article “EMD SD40”; it is used under the Creative Commons Attribution-ShareAlike 3.0 Unported License (CC-BY-SA). You may redistribute it, verbatim or modified, providing that you comply with the terms of the CC-BY-SA.

SD40 LOCOMOTIVE FEATURES:

• Photo-etched stainless steel windshield wipers
• Fully assembled and ready-to-run
• Separately applied wire grab irons
• Separately applied air tanks
• Coupler cut levers
• Rubber MU hoses
• Fine scale handrails molded in engineering plastic
• Non-sound version features 21-pin NEM DCC plug
• See-through dynamic brake and radiator fans
• Curved radiator fan grab iron
• Exhaust stack
• Frame mounted bell (unless noted)
• Detailed 4,000 gallon fuel tank (unless different capacity is noted)
• Flexicoil-C trucks with high or low brake cylinders (per prototype)
• McHenry scale knuckle spring couplers
• See through cab windows
• Bi-directional LED lighting
• All-wheel drive with precision gears for smooth and quiet operation
• All-wheel electrical pickup
• 5-pole motor with flywheels and multi-link drivetrain for trouble-free operation
• Wheels with RP25 contours operate on all popular brands of track
• Window packaging for easy viewing
• Highly-detailed, injection molded body
• Painted and printed for realistic decoration
• Fully assembled and ready-to-run
• Minimum radius: 18”
• Recommended radius: 22”

SOUND-EQUIPPED MODELS ALSO FEATURE

• Onboard DCC decoder with SoundTraxx Econami sound
• Single cube speaker for optimal sound quality
• Sound units operate in both DC and DCC
• Engine, horn, and bell sounds work in DC
• Some functions are limited in DC
• All functions NMRA compatible in DCC mode
• Effect lighting (if applicable) using F5 and/or F6
• Excellent low-speed operation
• Program a multiple unit (MU) lashup with lead unit only horn, bell, and lights
• Many functions can be altered via Configuration Value (CV) changes
• CV chart included in the box

PRIMED FOR GRIME MODELS FEATURE

• Duplicated look and feel of “In Service” equipment
• Faded base colors matched to the prototype
• Perfect starting point for adding grime and rust

Southern Pacific - “SD40R”

In 1981, SP instituted a GRIP rebuild of their SD40s, resulting in the SD40R. A workhorse locomotive for SP, they could be seen pulling freights all over the system.

#7342 was painted in a series of experimental schemes, featuring prominent usage of “Daylight” orange, the last of which is depicted on our model.

The SD40Rs remained in service into the 1990s. Deferred maintenance took its toll on the appearance of the units, as depicted by our other 3 offerings.

ROAD NUMBER SPECIFIC FEATURES:

• #7342 Unique Daylight paint, full light packages

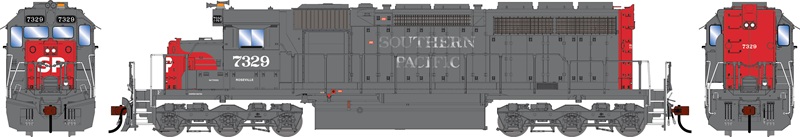

• #7329 / #7344 / #7383 Faded paint colors, blanked front and rear gyralights, Prime beacon
