PROTOTYPE AND BACKGROUND INFO:

In 1966, EMD updated its locomotive catalog with entirely new models, all powered by the new 645 diesel engine. The SD40 had 3,000 hp from a turbocharged V16. 856 examples of this locomotive model were built for American railroads, 330 were built for Canadian railroads, and 72 were built for Mexican railroads.

This page is based on the copyrighted Wikipedia article “EMD SD40”; it is used under the Creative Commons Attribution-ShareAlike 3.0 Unported License (CC-BY-SA). You may redistribute it, verbatim or modified, providing that you comply with the terms of the CC-BY-SA.

SD40 LOCOMOTIVE FEATURES:

• Photo-etched stainless steel windshield wipers
• Fully assembled and ready-to-run
• Separately applied wire grab irons
• Separately applied air tanks
• Coupler cut levers
• Rubber MU hoses
• Fine scale handrails molded in engineering plastic
• Non-sound version features 21-pin NEM DCC plug
• See-through dynamic brake and radiator fans
• Curved radiator fan grab iron
• Exhaust stack
• Frame mounted bell (unless noted)
• Detailed 4,000 gallon fuel tank (unless different capacity is noted)
• Flexicoil-C trucks with high or low brake cylinders (per prototype)
• McHenry scale knuckle spring couplers
• See through cab windows
• Bi-directional LED lighting
• All-wheel drive with precision gears for smooth and quiet operation
• All-wheel electrical pickup
• 5-pole motor with flywheels and multi-link drivetrain for trouble-free operation
• Wheels with RP25 contours operate on all popular brands of track
• Window packaging for easy viewing
• Highly-detailed, injection molded body
• Painted and printed for realistic decoration
• Fully assembled and ready-to-run
• Minimum radius: 18”
• Recommended radius: 22”

SOUND-EQUIPPED MODELS ALSO FEATURE

• Onboard DCC decoder with SoundTraxx Econami sound
• Single cube speaker for optimal sound quality
• Sound units operate in both DC and DCC
• Engine, horn, and bell sounds work in DC
• Some functions are limited in DC
• All functions NMRA compatible in DCC mode
• Effect lighting (if applicable) using F5 and/or F6
• Excellent low-speed operation
• Program a multiple unit (MU) lashup with lead unit only horn, bell, and lights
• Many functions can be altered via Configuration Value (CV) changes
• CV chart included in the box

PRIMED FOR GRIME MODELS FEATURE

• Duplicated look and feel of “In Service” equipment
• Faded base colors matched to the prototype
• Perfect starting point for adding grime and rust

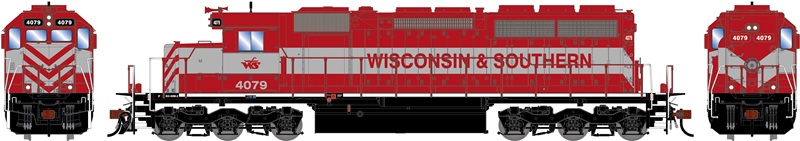

Wisconsin & Southern - “SD40M-2”

Wisconsin Southern is a Class II railroad operating in Illinois and Wisconsin over former CNW and MILW trackage. The roster included a variety of EMD units, including some rebuilt SD40 units of mixed heritage. The units originally wore 40XX numbers but were re-numbered into the 41XX-42XX series in 2015. They could be found in any type of service.

WSOR FEATURES:

• RS3L horn
• Front and rear ditch lights
• Standard EMD plow
• Removed class lights
• Hood-side-mounted bell
• Special verbiage honoring Robert Hoesly on unit 4078
