PROTOTYPE AND BACKGROUND INFO:

In 1966, EMD updated its locomotive catalog with entirely new models, all powered by the new 645 diesel engine. The SD40 had 3,000 hp from a turbocharged V16. 856 examples of this locomotive model were built for American railroads, 330 were built for Canadian railroads, and 72 were built for Mexican railroads.

This page is based on the copyrighted Wikipedia article “EMD SD40”; it is used under the Creative Commons Attribution-ShareAlike 3.0 Unported License (CC-BY-SA). You may redistribute it, verbatim or modified, providing that you comply with the terms of the CC-BY-SA.

SD40 LOCOMOTIVE FEATURES:

• Photo-etched stainless steel windshield wipers
• Fully assembled and ready-to-run
• Separately applied wire grab irons
• Separately applied air tanks
• Coupler cut levers
• Rubber MU hoses
• Fine scale handrails molded in engineering plastic
• Non-sound version features 21-pin NEM DCC plug
• See-through dynamic brake and radiator fans
• Curved radiator fan grab iron
• Exhaust stack
• Frame mounted bell (unless noted)
• Detailed 4,000 gallon fuel tank (unless different capacity is noted)
• Flexicoil-C trucks with high or low brake cylinders (per prototype)
• McHenry scale knuckle spring couplers
• See through cab windows
• Bi-directional LED lighting
• All-wheel drive with precision gears for smooth and quiet operation
• All-wheel electrical pickup
• 5-pole motor with flywheels and multi-link drivetrain for trouble-free operation
• Wheels with RP25 contours operate on all popular brands of track
• Window packaging for easy viewing
• Highly-detailed, injection molded body
• Painted and printed for realistic decoration
• Fully assembled and ready-to-run
• Minimum radius: 18”
• Recommended radius: 22”

SOUND-EQUIPPED MODELS ALSO FEATURE

• Onboard DCC decoder with SoundTraxx Econami sound
• Single cube speaker for optimal sound quality
• Sound units operate in both DC and DCC
• Engine, horn, and bell sounds work in DC
• Some functions are limited in DC
• All functions NMRA compatible in DCC mode
• Effect lighting (if applicable) using F5 and/or F6
• Excellent low-speed operation
• Program a multiple unit (MU) lashup with lead unit only horn, bell, and lights
• Many functions can be altered via Configuration Value (CV) changes
• CV chart included in the box

PRIMED FOR GRIME MODELS FEATURE

• Duplicated look and feel of “In Service” equipment
• Faded base colors matched to the prototype
• Perfect starting point for adding grime and rust

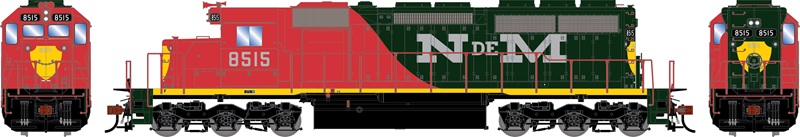

Ferrocarriles Nacionales de México

Ferrocarriles Nacionales de México was Mexico’s state-owned railway from 1938 to 1998. The road owned a relatively large group of SD40s; units 8503-8521 were delivered in 1968. Paint and decoration varied on the units, with some having green stepwells, and some yellow. Both versions are on offer in this release.

NdeM FEATURES:

• Different paint masking per road number
• RS3L horn
• Footboards
• Pilot grabs
• Early cut levers
