Prototype Info

The horsepower race was in full swing by the late 1960s when GE introduced the 3,300hp, four-axle U33B locomotive. 137 units were produced between September 1967 and August 1970 when production ended. GE upped the horsepower ante in 1970 with the introduction of the 3,600hp U36B which was produced between May 1970 and December 1974. Both models were externally identical, and internally they were both powered by the same GE FDL-16 cylinder four-stroke engine. The horsepower increase was achieved through adjustments to the fuel rack settings and other internal component changes. One key spotting feature of both models was the built-out radiator “wings” on the long hood.

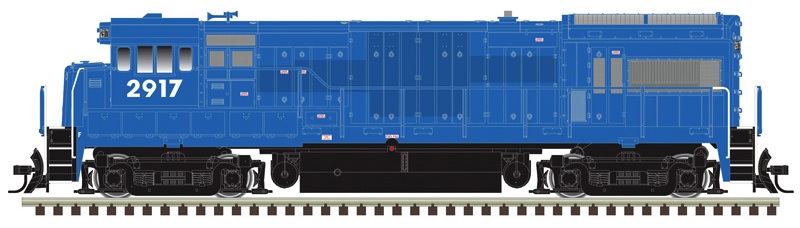

Atlas’ U33B and U36B model is being offered in both an early and late phase. The early phase model includes flushmounted radiator screens and air intake screens on the long hood. In addition, there is a built-out area on the top of the front and rear pilots. Late phase models include corrugated radiator and air intake screens, with a flat pilot face. An optional separate electrical equipment box is included on the left side walkway behind the cab per the prototype. AAR-B or Blomberg trucks are used when appropriate.

Features:

• AAR-B or Blomberg trucks will be used when appropriate
• Separately-applied scale detail parts include: windshield wipers, metal grab irons, and more!
• Five pole skewed armature motor with dual flywheels for optimum performance at all speeds
• Directional lighting with Golden-white LEDs
• Blackened metal wheels
• NEW Metal couplers
• Atlas Master Silver version is Sound Ready and equipped with speaker for easy conversion to DCC sound
• Atlas Master Gold version is sound-equipped
• NEW Atlas Master Gold version features factory-installed ESU passive radiator speakers

DCC Operation Features (GOLD LOCOMOTIVES ONLY):

• Supports all DCC-programming modes
• DCC includes RailCom and RailComPlus, with 14, 28 or 128 speed steps and with 2-digit and 4-digit addressing.
• Flexible mapping of function keys F0 to F28.
• A total of 6 DCC function outputs are available, all can be function mapped (disable, brightness, light effects) individually
• Follows all NMRA DCC standards and recommended practices.

ESU LokSound Features (GOLD LOCOMOTIVES ONLY):

• Over 20 sound effects are available, including engine start-up and shutdown, prime mover sounds through all eight notches, bell, air horn, air compressor, dynamic brakes and more.
• There are up to 16 user-selectable horns, 2 user-selectable bells, and 2 user-selectable synchronized brake squeals.
• Manual and Automatic Notching modes with the ability to change modes ”on the fly” are provided for true realism.
• Equipped with ESU’s Exclusive “Full Throttle” features for ultimate realism in prototype running.

About Atlas HO Scale Locomotives

Atlas HO scale locomotives are noted for their prototypical, fine details, printing, reliability, excellent throttle response, and smooth operation at slow speeds. They are often available in both Silver Sound Ready and Gold Sound Equipped versions, allowing you to choose which experience you want from your locomotive right from the start. Will you run with sound and DCC controls, or will you run them without with the possibility of upgrading later? No matter what you choose, your Atlas HO scale locomotive will provide you with years of enjoyment and smooth operation.

About Atlas Master Line Locomotives

Atlas Master Line locomotives and rolling stock are highly detailed models that faithfully recreate the prototype down to the paint scheme and even railroad-specific details. They are offered in two varieties--Atlas Master Silver and Atlas Master Gold. Atlas Master Silver locomotives are sound and DCC-ready, with the appropriate speaker and plugs so you can use whatever decoder you prefer. Atlas Master Gold locomotives are DCC and sound-equipped right out of the box, making them the perfect choice for those who don't want to deal with installing decoders.
