Prototype Info

Between 1964 and 1966, EMD built a total of 360 six-axle 2,500hp SD35 locomotives. An additional 35 steam generator-equipped SDP35 locomotives were also built during this period. These were all part of EMD’s “35-Series” which also featured the four-axle, 2,500hp GP35 locomotive. All locomotives included the standard EMD 567-series prime mover. A stock model weighed 360,000 pounds, but many roads chose to add weight to increase the locomotive’s tractive effort. From the mid-1960s through the 1980s, the SD-35 could be found in road service on both large and mid-sized roads across the US. Today the number of active units has dwindled to a select few, including those operated by regional railroad Montana Rail Link.

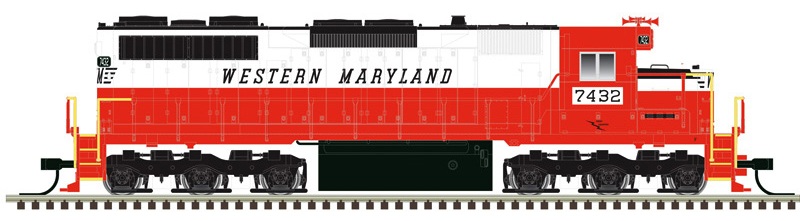

Atlas’ model incorporates many of the subtle details that differentiated the various SD-35 production phases. This includes the detail of the engine air intake, dust bin, radiator screens, radiator fans, fuel tanks and battery boxes. Other options include a low vs. high nose, and a low nose with Atlas without a standard-style headlight.

Features:

• Realistic die-cast underframe
• Five-pole skewed armature motor with dual flywheels for optimum performance at all speeds
• Golden-white LEDs
• Directional lighting
• Detailed cab interior with crew
• Separately-installed scale windshield wipers, metal grab irons and fine scale handrails
• Marker lights with separate lenses
• Scale fans and grille detail
• Flat dust bin or raised dust bin as appropriate by railroad
• Snowplow (included but not installed)
• NEW Metal couplers
• Atlas Master Silver version is Sound Ready and equipped with speaker for easy conversion to DCC sound
• Atlas Master Gold version is sound-equipped
• NEW Atlas Master Gold version features factory-installed ESU passive radiator speakers

DCC Operation Features (GOLD LOCOMOTIVES ONLY):

• Supports all DCC-programming modes
• DCC includes RailCom and RailComPlus, with 14, 28 or 128 speed steps and with 2-digit and 4-digit addressing.
• Flexible mapping of function keys F0 to F28.
• A total of 6 DCC function outputs are available, all can be function mapped (disable, brightness, light effects) individually
• Follows all NMRA DCC standards and recommended practices.

ESU LokSound Features (GOLD LOCOMOTIVES ONLY):

• Over 20 sound effects are available, including engine start-up and shutdown, prime mover sounds through all eight notches, bell, air horn, air compressor, dynamic brakes and more.
• There are up to 16 user-selectable horns, 2 user-selectable bells, and 2 user-selectable synchronized brake squeals.
• Manual and Automatic Notching modes with the ability to change modes ”on the fly” are provided for true realism.
• Equipped with ESU’s Exclusive “Full Throttle” features for ultimate realism in prototype running.

About Atlas HO Scale Locomotives

Atlas HO scale locomotives are noted for their prototypical, fine details, printing, reliability, excellent throttle response, and smooth operation at slow speeds. They are often available in both Silver Sound Ready and Gold Sound Equipped versions, allowing you to choose which experience you want from your locomotive right from the start. Will you run with sound and DCC controls, or will you run them without with the possibility of upgrading later? No matter what you choose, your Atlas HO scale locomotive will provide you with years of enjoyment and smooth operation.

About Atlas Master Line Locomotives

Atlas Master Line locomotives and rolling stock are highly detailed models that faithfully recreate the prototype down to the paint scheme and even railroad-specific details. They are offered in two varieties--Atlas Master Silver and Atlas Master Gold. Atlas Master Silver locomotives are sound and DCC-ready, with the appropriate speaker and plugs so you can use whatever decoder you prefer. Atlas Master Gold locomotives are DCC and sound-equipped right out of the box, making them the perfect choice for those who don't want to deal with installing decoders.
